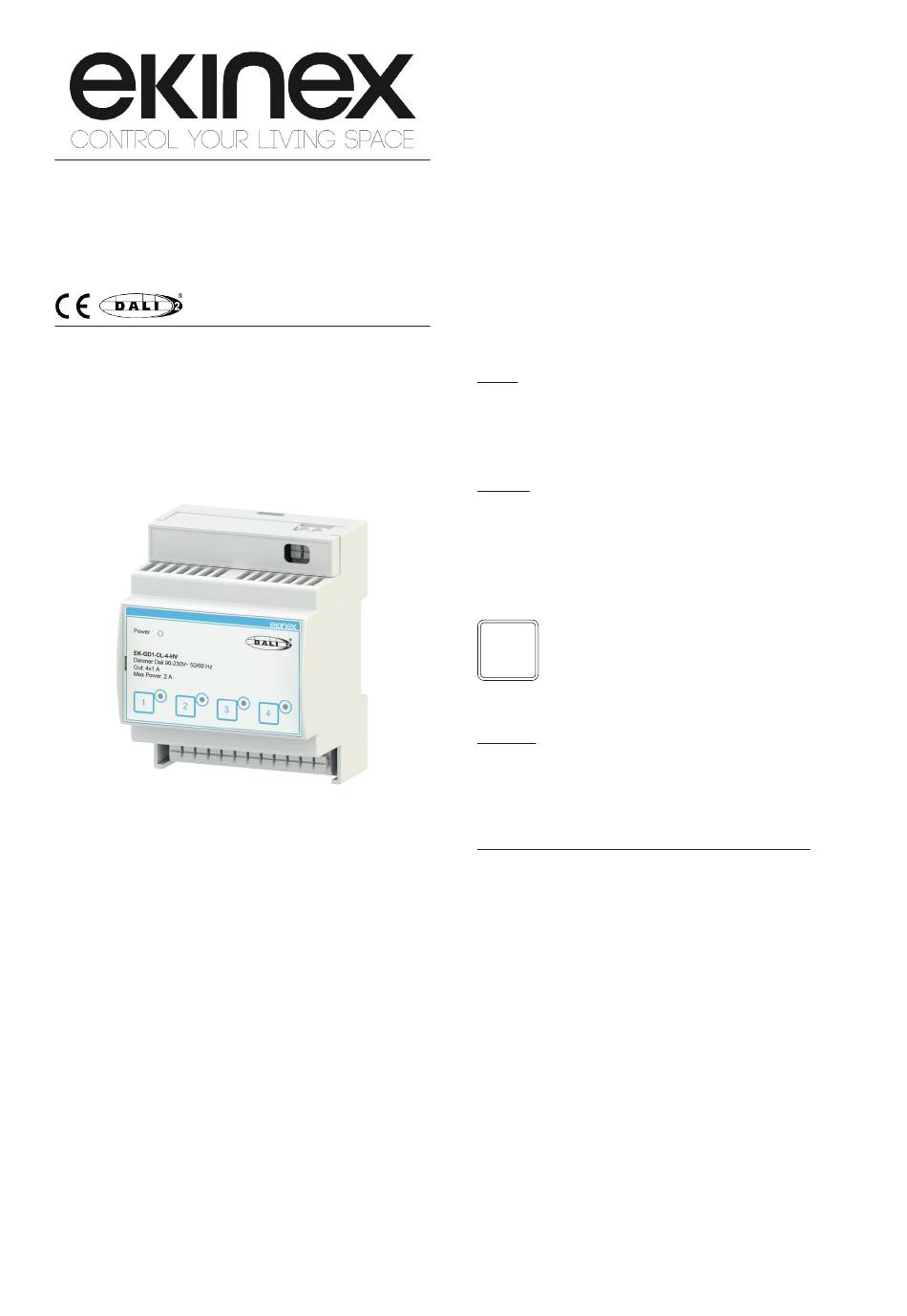

DALI 2 90-230 Vac 4-channels phase cut
dimmers
Code: EK-GD1-DL-4-HV
DALI 2 standard bus dimmer with 90-230 Vac power sup-
ply and 4 channels, for controlling the brightness of LED
and halogen sources with 90-230V AC 50/60Hz voltage
for a maximum of 200W on 4 channels each.
Description
The ekinex DALI 2 phase-cut dimmer powered at 90-230
Vac with 4 channels EK-GD1-DL-4-HV allows the bright-
ness control of luminous loads with voltage 90 - 230 Vac
at 50/60 Hz. The device has a max. of 200 W for each
channel. The loads that can be used with the EK-GD1-
DL-4-HV dimmer can be incandescent lamps, mains vol-
tage halogen lamps, dimmable mains voltage LED lamps,
dimmable mains voltage LED strips, switching power sup-
plies for Phase cutting dimmable LEDs.
The dimmer cuts the phase in Trailing Edge mode (on the
falling edge).
The dimmer is DALI2 certified (GTIN:8050054980065)
with reference to parts 101, 102, 205.
Datasheet STEKGD1DL4HV_EN
1

Main functional characteristics

• Memory function settable via DALI bus: it saves the last
brightness level in the event of a power failure
• Fade time, minimum and maximum brightness level
settable via DALI bus
• Soft on and off
• Min level brightness: 0.1%
• Logarithmic adjustment curve settable via DALI bus
• On and off times settable via DALI
• Optimized output curve
• Channel buttons 1-2-3-4 for local on / off test in case of
DALI bus absence (for EK-GD1-DL-4-HV model only):
by holding down the button relating to a channel, the
connected load flashes at 1 s intervals
• Signaling in case of short circuit, lack of voltage and
overload

Technical data

Inputs
• Power supply: 90 - 230 Vac 50/60 Hz
• Maximum input current: 4 A
• Inputs according to DALI 2 protocol certified to IEC
62386, parts 101, 102, 205.
Outputs
• Power supply: 90 - 230 Vac 50/60 Hz
• Output power per channel 110 W @ 110 Vac, 220 W @
220 Vac, 230 W @ 230 Vac
• Minimum load power: 1 W per channel
• Maximum output current: 1 A
Note: values for output current and nominal power
i
have to be intended as maximum values, depen-
ding on the ventilation conditions. The reported va-
lues are measured with a room temperature of 40
°C. For electronic loads and/or LEDs whose PFC or
harmonic distortion is not known, consider the maxi-
mum power halved compared to the nominal value.
Dimming
• Trailing edge dimming mode with open load control
(OPEN CIRCUIT) and short circuit on the load (SHORT
CIRCUIT)
• Dimming range: 1-100%
Environmental conditions and other characteristics
• Operating temperature: - 20 ° C ... + 40 ° C
• Storage temperature: - 40 ° C ... + 60 ° C
• Transport temperature: - 40 ° C ... + 60 ° C
• Maximum case temperature (t
• Relative humidity: 91% non-condensing
• Protection degree: IP00 (IP20 inside a wall-mounting
box or electrical panel)
• Loads and supply wiring: 1.5 mm
stranded (16 - 13 AWG)
• Stripping: 5.0 - 6.0 mm
• Housing in plastic material
• Device suitable for installation in panels/cabinets 4 UM
• Weight 200 g
• Dimensions (LxHxP): 71 x 91 x 62 mm
): 80 °C
c
solid – 2.5 mm
2
2
