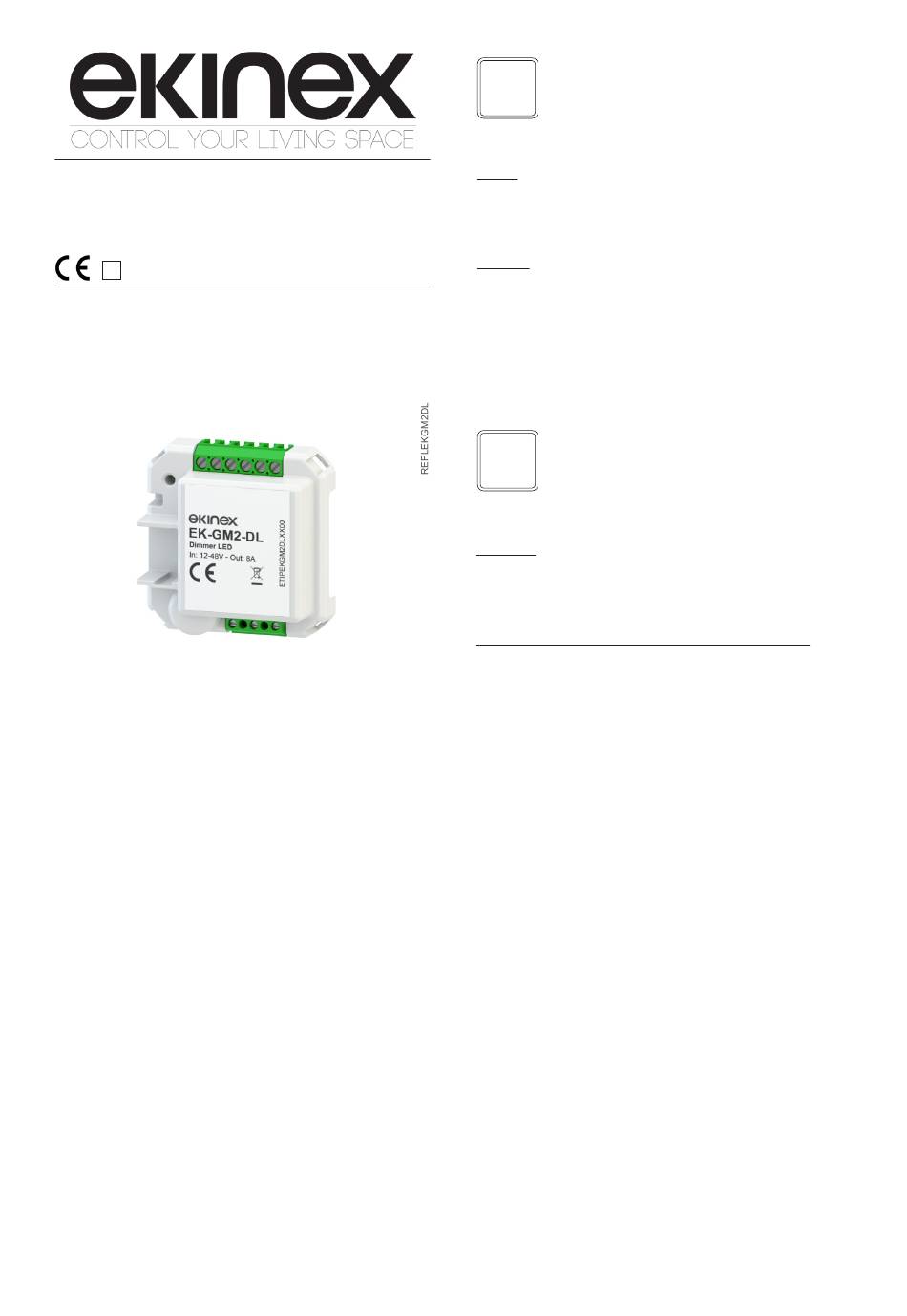

Ekinex EK-GM2-DL Quick Start Manual

DALI 1-channel dimmer
Code: EK-GM2-DL
S
DALI bus dimmer with 12/24 Vdc power supply, it pro-
vides LED sources brightness control function. Dimming
can can be managed by using different types of comman-
ds: KNX buttons or other local control devices. The device
is suitable for installation in flush-mounting wall boxes.

Description

The ekinex DALI 1-channel dimmer EK-GM2-DL allows
brightness control of dimmable LED sources by means of
several kinds of button. It can be connected by means of
KNX (TP) pushbutton connected to a DALI / KNX Gate-
way or via another command device, directly connected
to the dedicated input, selectable from a normally open
button, 0-10V analog input, 1-10V analog input and 10 kΩ
potentiometer. The device has an integrated DALI bus
communication modules voltage and requires a 12 or 24
Vdc auxiliary power supply.

Functional characteristics

• Constant voltage dimmer, 1 channel
• DALI bus command
• Local command: N.O. pushbutton / analog input 0-10V
/ 1-10V / 10 kΩ Potentiometer
• Analog automatic detection of the local command
• Brightness adjustment for LED loads
• Voltage output for R loads
• Typical efficiency > 95%
• Brightness adjustment up to full off (Dim to Dark)
• Brightness adjustment of white light or monochromatic
color
• Minimum value of dimming: 0.1% (1% Push)
• Memory function: it stores the last brightness level in
case of a power failure
• Possibility to set minimum dimming, Fade-in and Fade-
Out (Push menu)
• Optimized output curve
• Soft start and soft stop
Datasheet STEKGM2DL_EN
1
i
Note: the factory default values are: automatic de-
tection of the local command set to N.O. pushbutton
and minimum dimming value set to 1%.

Technical data

Inputs
• Input (constant voltage): 12 / 24 Vdc
• Supply voltage: min: 10.8 Vdc .. max: 26.4 Vdc
• Power absorbed while awaiting command: <500 mW
Outputs
• Output voltage = input voltage
• Output current: max 10 A @40°C
• Nominal power @12V: 120 W
• Nominal power @24V: 240 W
• Command supply current: 0.5mA (for 1-10V)
• Command required current (max): 0.1 mA (for 0-10V)
i
Note: values for output current and nominal power
have to be intended as maximum values, depen-
ding on the ventilation conditions. The reported
values are measured with a room temperature of
40 °C.

Dimming

• Dimming frequency D-PWM: 300Hz
• D-PWM resolution: 16 bit
• D-PWM dimming range: 0.1-100%

Environmental conditions and other characteristics

• Operating temperature: -10 ° C ... + 40 ° C
• Storage temperature: - 40 ° C ... + 60 ° C
• Transport temperature: - 40 ° C ... + 60 ° C
• Relative humidity: 93% non-condensing
• Protection degree IP20 (device installed)
• Wiring: 1.5 mm solid – 1.0 mm
2
• Stripping: 5.0 - 6.0 mm
• Housing in plastic material
• Device suitable for installation in flush-mounting wall
boxes
• Safety class II
• Weight 37 g
• Dimensions 43 x 43 x 23 mm (LxHxP)

Protections

The device is provided with the following protections:
• OVP Over voltage protection
• UVP Under voltage protection
• RVP Reverse polarity protection
• IFP Input fuse protection
• OCP Open circuit protection
1) Control logic protection only
stranded – 16- 17 AWG
2
1
1
1
1
