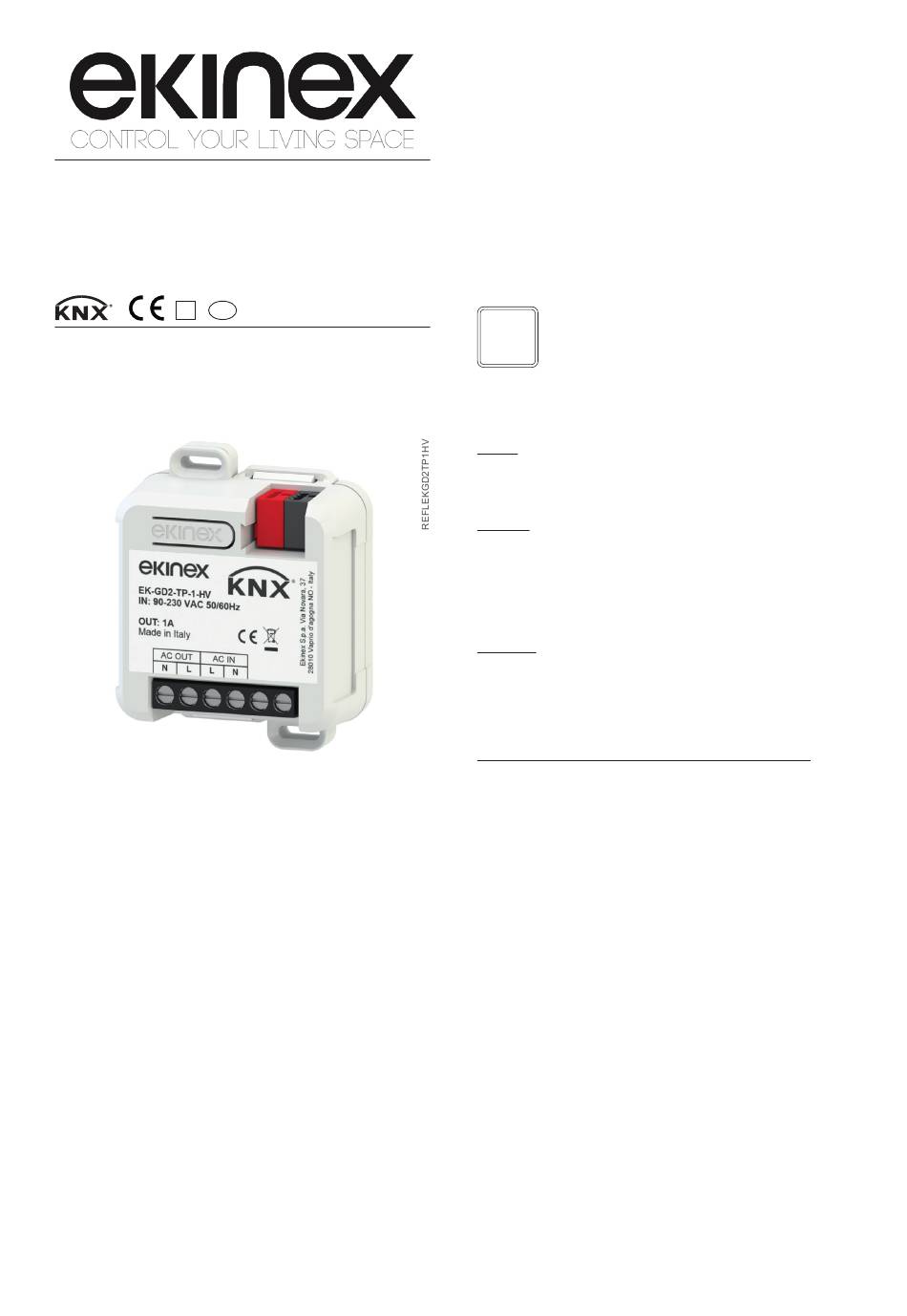

Ekinex EK-GD2-TP-1-HV Quick Start Manual

KNX 90-230 Vac 1-channel phase cut dim-
mers
Code: EK-GD2-TP-1-HV
S
TP1
KNX bus device with single channel phase-cut dimmer
function for lighting loads, with power supply voltage 90
- 230 Vac at 50/60 Hz. Use in KNX standard home and
building automation systems.
Description
The ekinex KNX phase-cut single channel dimmer powe-
red at 90-230 Vac EK-GD2-TP-1-HV allows the bright-
ness control of luminous loads with supply voltage 90 -
230 Vac at 50/60 Hz. The device has a maximum output
power of 230 W. The loads that can be used with the dim-
mer can be: incandescent lamps, mains voltage halogen
lamps, dimmable mains voltage LED lamps, dimmable
mains voltage LED strips, switching power supplies for
dimmable phase cut LEDs. The dimmer cuts the phase in
Trailing Edge mode (on the falling edge). The device has
an integrated KNX certified bus communication module
with SELV 30 Vdc voltage.
Main functional characteristics
• ON/OFF control and regulation of the luminous intensi-
ty of single or group lighting fixtures
• Fade time on and off, minimum and maximum bright-
ness level, linear or logarithmic regulation curve setta-
ble via ETS
• Soft or instant on and off, with settable delay
Datasheet STEKGD2TP1HV_EN
1
• Configuration of behavior after power recovery, bus
ON/OFF, download via ETS
• Status indication of the outputs through LEDs
• Block function, forced operation, staircase light, scena-
rios, night, counter and logic functions for each chan-
nel, settable by ETS
• Alarm for short circuit, open load and power failure
• Auxiliary output function with status advice via KNX
• Installer mode (only if KNX bus is present): pressing
the programming button for about 2 seconds activates/
deactivates the flashing of the programming LED and
the load every 1 s
Note: values for output current and nominal power
have to be intended as maximum values, depen-
i
ding on the ventilation conditions. The reported va-
lues are measured with a room temperature of 40
°C. For electronic loads and/or LEDs whose PFC or
harmonic distortion is not known, consider the maxi-
mum power halved compared to the nominal value.
Technical data
Inputs
• Power supply: 90 - 230 Vac 50/60 Hz
• Maximum input current: 1 A
Outputs
• Power supply: 90 - 230 Vac 50/60 Hz
• Output power 110 W @ 110 Vac, 220 W @ 220 Vac,
230 W @ 230 Vac
• Minimum load power: 1 W
• Maximum output current: 1 A
Dimming
• Trailing edge dimming mode with open load control
(OPEN CIRCUIT) and short circuit on the load (SHORT
CIRCUIT)
• Dimming range: 1-100%
Environmental conditions and other characteristics
• Operating temperature: - 20 ° C ... + 40 ° C
• Storage temperature: - 40 ° C ... + 60 ° C
• Transport temperature: - 40 ° C ... + 60 ° C
• Maximum case temperature (t
• Relative humidity: 91% non-condensing
• Protection degree: IP00
• Loads and supply wiring: 1.5 mm
stranded (16 - 13 AWG)
• Max torque 0.5 Nm for screw terminals
• KNX bus wiring: 0.26 ÷ 0.5 mm2 – 23 ÷ 20 AWG
• Stripping: 5.0 - 6.0 mm
• Housing in plastic material
• Device suitable for installation in flush-mounting wall
boxes
• Weight 37 g
• Dimensions (LxHxW): 53 x 61 x 29 mm
Protections
• OVP Input voltage peak protection
• RVP Overcurrent protection with 3 A non-resettable
fuse
• OCP Output open circuit protection
): 80 °C
c
solid – 2.5 mm
2 2
