Ekinex EK-GO1-DL Quick Start Manual

DALI 4-channel 230 Vac dimmer
Code: EK-GO1-DL
S
DALI bus dimmer with 230 Vac mains voltage power sup-
ply, it provides brightness control functions of LED and
halogen sources, dimmable using different types of com-
mands: KNX buttons connected to a DALI / KNX Gate-
way or other command devices compatible with the DALI
protocol.
Description
The ekinex DALI 4-channel 230 Vac dimmer EK-GO1-DL
allows brightness control of dimmable LED and halogen
sources by means of several types of button. It can be
connected by means of KNX (TP) pushbutton connected
to a DALI / KNX Gateway or by using other devices com-
patible with the DALI protocol. The device has an inte-
grated DALI bus communication module, is powered by
230 Vac mains voltage and does not require an auxiliary
power supply.
Functional characteristics
• Input: 230 Vac
• 4 independent outputs, 200W for each channel
• 230 Vac outputs for R-C loads
• DALI bus control
• Brightness adjustment
• "Trailing Edge" phase cut output for dimmable LED
lamps
• Minimum switch-on settable
• Soft on and off
• Memory function
Technical data
Inputs
• Nominal power supply voltage: 230 Vac
• Input voltage: 210 ... 240 Vac
• Network frequency: 50 Hz
• Full load efficiency:> 95%
• Power absorbed while awaiting command: <500 mW
Datasheet STEKGO1DL_EN
1
Outputs
• Output voltage: 210 ... 240 Vac
• Single channel output current: 0.8 A max
• Output current on 4 channels: 3.2 A max
• Minimum load power: 1 W per channel
• Rated power per channel: 200W
Dimming
• Dimming resolution: 16 bit
• Dimming mode - Phase-cut: Trailing edge
• Dimming range: 1-100%
Environmental conditions and other characteristics
• Operating temperature: -40 ° C ... + 40 ° C
• Storage temperature: - 40 ° C ... + 60 ° C
• Transport temperature: - 40 ° C ... + 60 ° C
• Relative humidity: 93% non-condensing
• Protection degree IP10 (device installed)
• Power & LEDs wiring: 0.2 ÷ 2.5 mm
• Power & LEDs stripping: 11.5 mm
• Housing in plastic material
• Safety class II
• Weight 200 g
• Modular device 8 MU (1 MU = 18 mm)
• Dimensions 143 x 91 x 62 mm (LxHxP)
i
Note: The dimming range depends on the techno-
logy of the bulb and / or LED module

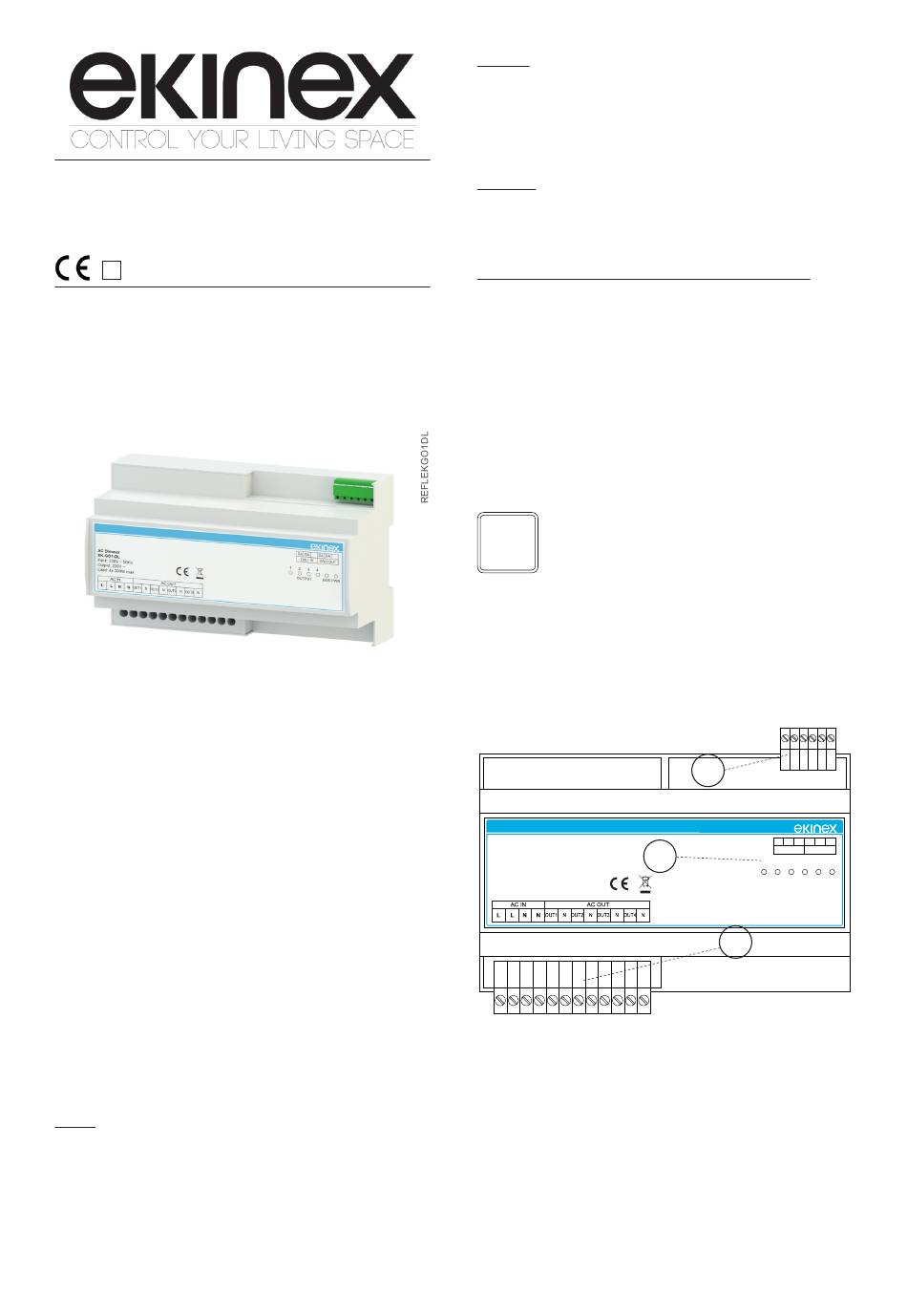

Control, signaling and connection elements
The device is equipped with a spring terminal for connec-
ting the 230 Vac input mains power supply and the output
AC loads (1), a spring terminal for connecting the DALI
line (2) and 6 signaling LEDs (3).
AC Dimmer
EK-GO1-DL
Input: 230V ~ 50Hz
Output: 230V ~
Load: 4x 200W max
1) Spring terminal for 230 Vac input mains and output AC loads
2) Spring terminal for DALI line connection
3) Signaling LEDs
- 30 ÷ 12 AWG
2
2
DA DA DA DA
3
DALI IN DALI OUT
1 2 3 4
BUS PWR
OUTPUT
1
