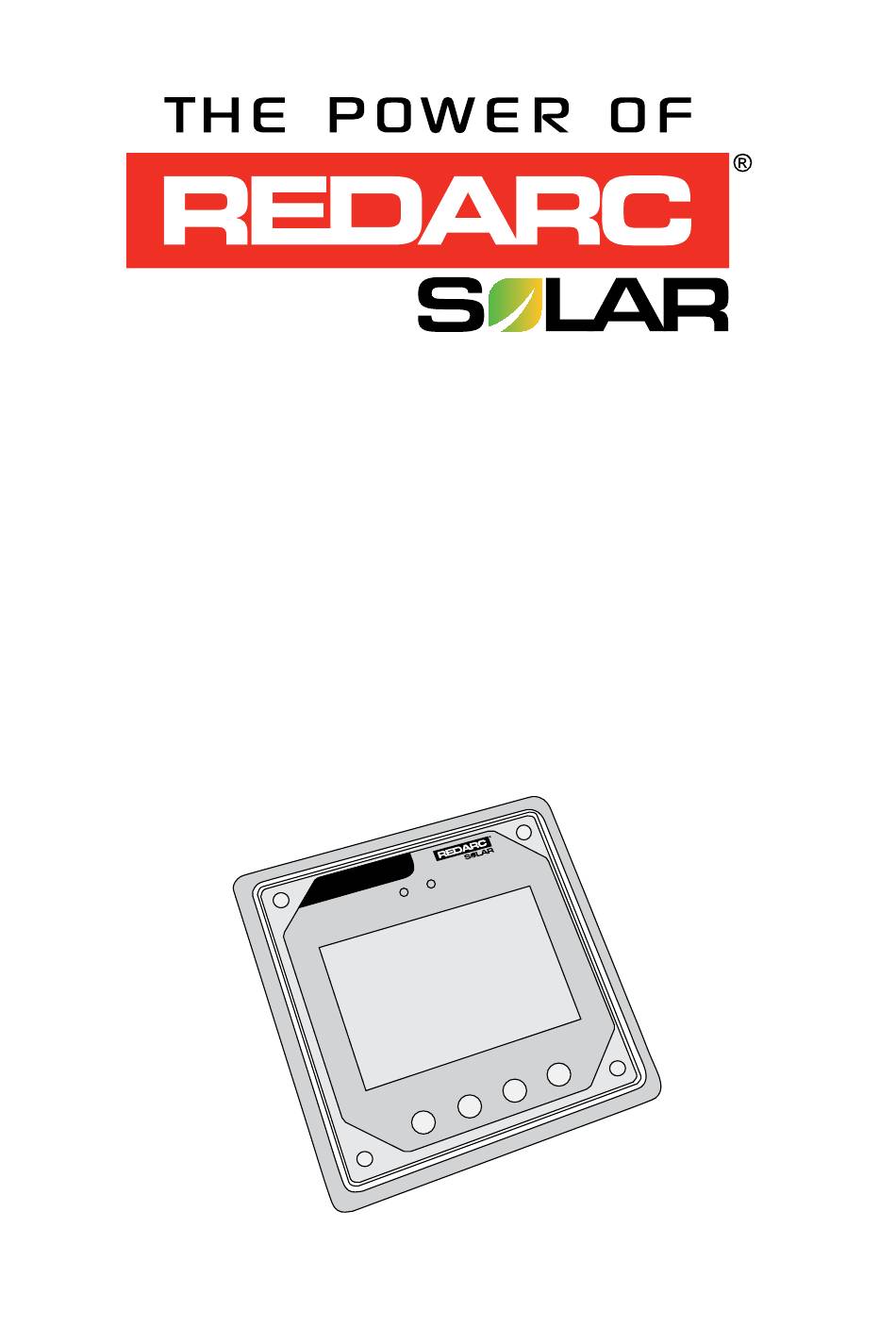

- Page 1 Remote Monitor for Solar Regulator SRP0240-RM For SRP0120 & SRP0240 Solar Regulators...
-
Page 2: The Solar Regulator Remote Monitor

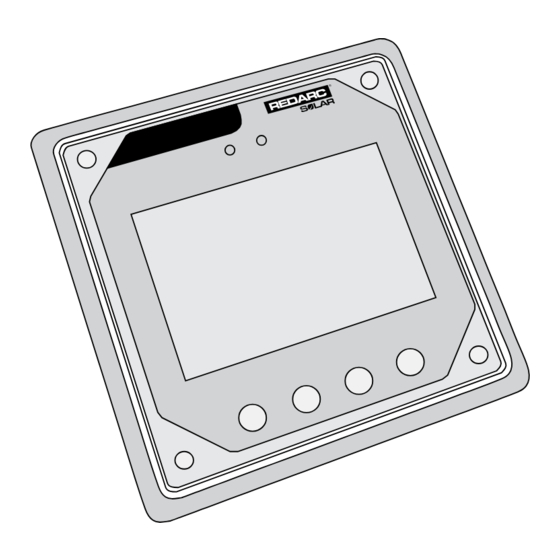

THE SOLAR REGULATOR REMOTE MONITOR The REDARC Solar Regulator Remote Monitor allows you to monitor how your solar panels are performing and keep track of the charge state of your battery/s. The unit is simple to setup and control and provides an easy to read graphical interface, which can be modified to suit your preferences. -
Page 3: Table Of Contents
4. Do not forget your password. The factory default password is ‘000000’. 5. This user manual is to be read in conjunction with the REDARC SRP Solar Regulator user manual. CONTENTS THE SOLAR REGULATOR REMOTE MONITOR ................2 WARNING &... -
Page 4: Specifications
SPECIFICATIONS Dimensions 95 mm / 3.7" 24 mm / 0.9" 84 mm / 3.3" 8 mm / 0.3" Monitor Function Error Charge ø 4.25 mm / 0.2" Mounting Frame Screen Set Button Right Button Left Button Mode Button... -
Page 5: The Display Screen
THE DISPLAY SCREEN Screen Function Battery 1 Solar Battery 2 Icon Icon Icon Remote temp. Icon Temperature Unit sensor Icon Icon Setting Icon Error Cycle Backlight Self test Icon Icon Icon Icon System Checking At any time pressing will trigger a system check. The system check will advise of the status of the battery 1, battery 2, solar and temperature conditions as well as performing a check of the LCD icons. -
Page 6: Monitor Operation
MONITOR OPERATION Solar Panel Information Key: Mode Left Right Solar Panel Information Battery 1 Information Battery 2 Information Temperature and Time Information Press Set Temperature Unit Set Backlight Timeout Set Backlight Brightness Set Data Repeat Option (see below) This will cycle through the solar panel, Battery 1, Battery 2 or Temperature data. Set Time (hours) Increase hours Decrease hours... - Page 7 MONITOR INFORMATION Displays voltage the solar panel is producing. Displays a ratio showing the percentage of charge being sent to each battery. (Only when two batteries are connected). Displays the pulsing frequency setting which can be changed between 25Hz and 50Hz depending on radio interference. Displays the total charge (Amp Hours) generated from the solar panel(s) since the remote monitor was connected.* Displays the maximum current (Amps) achieved by the solar panel(s) since...
-
Page 8: Battery 1 Information
MONITOR INFORMATION Battery 1 Information Displays voltage of Battery 1. Displays the maximum voltage measured at Battery 1 since the remote monitor was connected.* Displays the minimum voltage measured at Battery 1 since the remote monitor was connected.* Displays the total charge (Amp Hours) into Battery 1 generated from the solar panel(s) since the remote monitor was connected.* Battery 2 Information Displays voltage of Battery 2. -
Page 9: Time / Clock Information
MONITOR INFORMATION Time / Clock Information Displays the time in the format HH:MM, the clock is set to 24Hr time. Battery Charge Level Indicator Battery Flat Battery Low Battery Half Full Battery Full Temperature Information Displays the temperature measured at the external temperature probe (in °C). (Optional temperature probe SRP0240-TP sold separately) Displays the temperature measured at the solar regulator (in °C). -
Page 10: Remote Monitor Cable (8-Pin Rj45 10 M / 32.8 Ft)
REMOTE MONITOR CABLE (8-PIN RJ45 10 M / 32.8 FT) Plug A Plug B PRECAUTION THE REMOTE MONITOR CABLE IS EQUIPPED WITH 2 DIFFERENT STYLES OF PLUG (AS SHOWN ABOVE). IN ORDER TO FIT WITHIN THE REMOTE MONITOR’S MOUNTING BRACKET — PLUG A SHOULD BE CONNECTED TO THE REMOTE MONITOR AND PLUG B TO THE REGULATOR. Plug A Plug B... -
Page 11: Warranty
UK/Europe Mexico +44 (0)20 3930 8109 +52 (558) 526 2898 Design and specifications are subject to change without notice. | Copyright © 2021 REDARC Electronics Pty Ltd. All rights reserved. REDARC® and THE POWER OF REDARC® are trademarks of REDARC Electronics Pty Ltd. - Page 12 Australia power@redarc.com.au www.redarc.com.au 1300 REDARC (1300 733 272) New Zealand power@redarcelectronics.co.nz www.redarcelectronics.co.nz +64 9 222 1024 North America power@redarcelectronics.com www.redarcelectronics.com United States +1 (704) 247 5150 Canada +1 (604) 260 5512 Mexico +52 (558) 526 2898 UK/Europe power@redarcelectronics.eu www.redarcelectronics.eu +44 (0)20 3930 8109 www.redarc.com.au...
