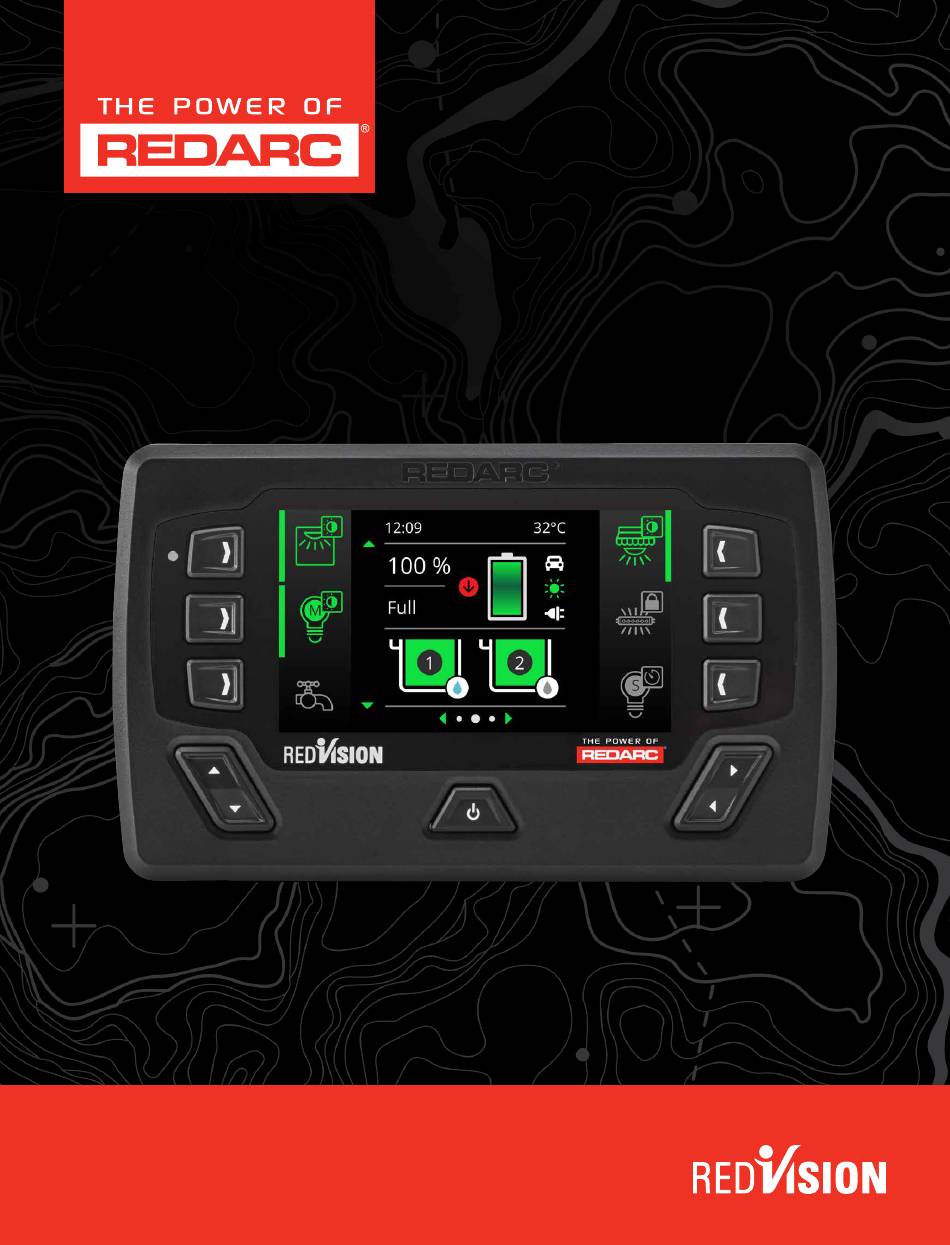

- Page 1 USER GUIDE — DISP4300 REDVISION DISPLAY ® www.redarcelectronics.com...
- Page 2 QUICK START All screens shown in this guide are examples only. The layout and appearance of the screen may vary depending on your Display’s software version and the devices in your system. Notification Channel Dimmable Channel Icon (TVMS Rogue only) Locked Channel Soft Keys (×6)
- Page 3 SCREENS AND NAVIGATION The Display has three main menus that are arranged into columns — Settings, Home screen, and Status screens. Press Left/Right to navigate between the columns, then press Up/Down to scroll to individual screens. CHANNEL INFO NOTIFICATION BAR NOTIFICATION ICONS Displays important information and notifications about your system, Locked...
- Page 4 Press Up/Down / from this screen to display the other status screens. INVERTER INFORMATION The RS3 Inverter screen is available if your system includes a REDARC RS3 inverter and an appropriately configured TVMS Prime and Display. The Inverter can be controlled by soft keys here and on the Home Screen.
- Page 5 RESET A FUSE — TVMS1240 The TVMS Rogue outputs are internally software-fused. These fuses are reset electronically, so you don’t need to replace any blown fuses. If a blown fuse is detected, the Fault icon will appear in the Notification Bar. The fuse can be reset in several ways: ƒ...
- Page 6 REDARC Electronics Pty Ltd. • The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by REDARC Electronics is under license. Other trademarks and trade names are those of their respective owners.
