Instruction Manual
AXION SERIES
MODEL EN 430/435

PARTS LIST

Index No.
Name
1
Latch
2
Slider
3
Coil Assembly (12 V)
Coil Assembly (24 V)
4
Screw 4-40 x 1/8 (Cover)
5
Frame Cover
6
Screw 4-40 x 1/4 (Coil)
7
Frame
8
Assembly Pin*
9
Spring
10
Latch Pivot Shaft
11
Guard
12
Face Plate
13
Mounting Screws (2) 12-24-1/2"
14
Shim Kit (4) 1/16" Shim
15
Shim Screws (2) 6-32-1/4"
16
Shim Screws (2) 6-32-3/8"
*
NOT PART OF ASSEMBLY. USED ONLY DURING DISASSEMBLY OR REPAIR.
** UNLESS OTHERWISE SPECIFIED, FRAME IS SUPPLIED AS SATIN STAINLESS STEEL -
US32D. SPECIFY OTHER FINISHES AS FOLLOWS: BRIGHT BRASS - US3;
SATIN BRASS - US4; DARK BRONZE -10B; BRIGHT CHROME -US26.
3

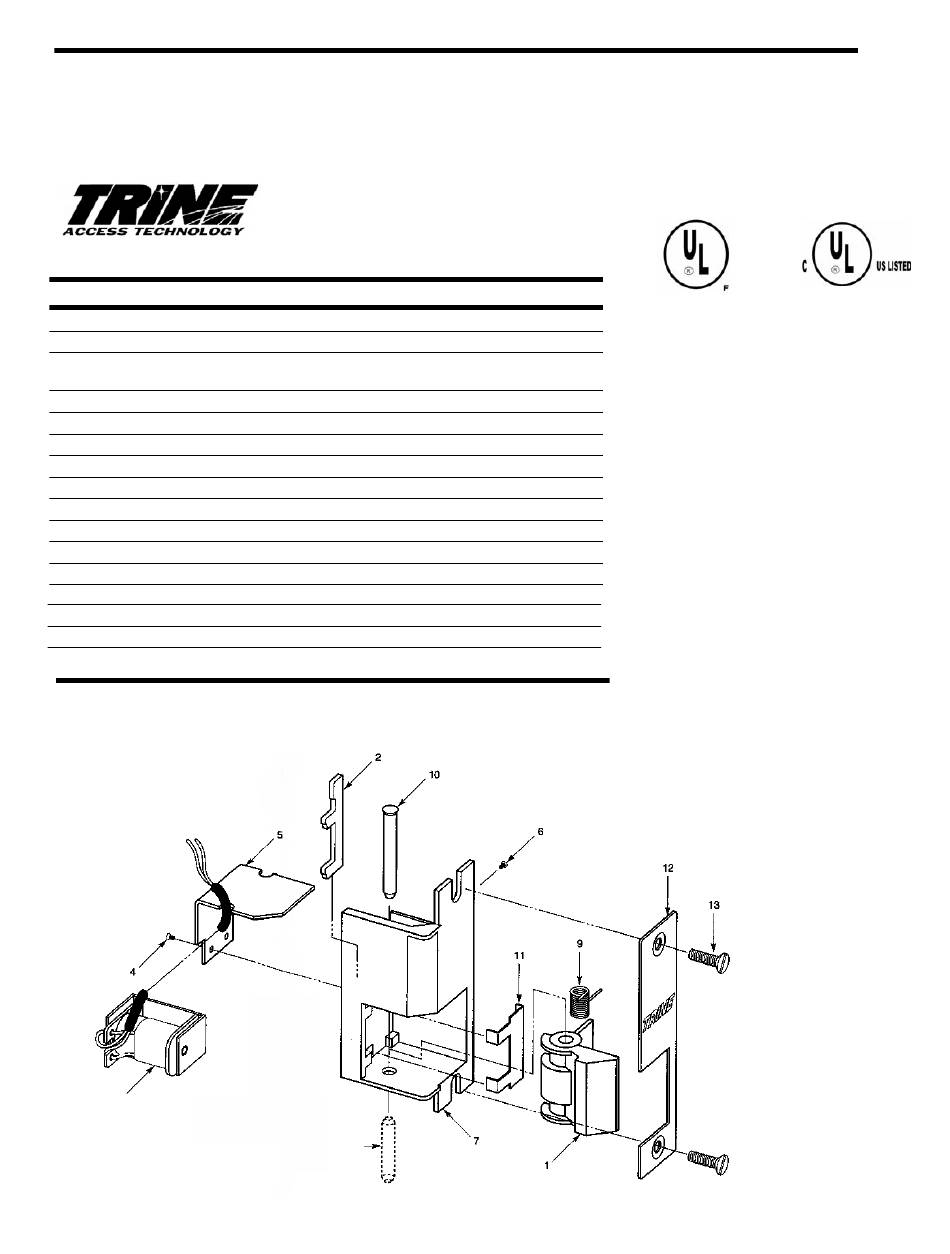

Figure 1
EN430 Electric Strike
- ELECTRIC STRIKE
TRINE ACCESS TECHNOLOGY
1440 Ferris Place, Bronx, NY 10461-3699
Phone: 718 829-2332
Fax: 718 829-6405
www.trineonline.com
Part Number
EN-430/435-LCH
EN-430/435-SLR
EN-CA-12AC
EN-CA-24AC
EN-SCR.1/8
EN-FR.C
EN-SCR.1/4
EN-F430, F435 (Specify LH or RH)
EN-ASS.PN
EN-SPR
EN-LCH-PV-ST
EN-GRD
EN-430FACE, 435FACE
EN-MTS
EN-UNV-SHIM
EN-SHIM-SCR-S
EN-SHIM-SCR-L
8*
NOTE: Number in parenthesis ( ) indicates
part in Parts List.
EN-CA-12DC
UL LISTED – 10B fire rated (class A, 3-hour,
EN-CA-24DC
Single Swing Doors)
UL LISTED – 1034 Burglary Resistant Locking
Mechanism for Indoor or Outdoor Use
ANSI/BHMA A156.5-1992 – 4-7/8" X 1-1/4" Fits
Cutout Specification A115.1 (with Slight Jamb
Modification)
BHMA – Grade1
NYC MEA 79-01-E
NOTE: UL 10B fire listing is void when using
fail safe action.
