Trine Axion Series Instruction Manual

Instruction Manual
AXION SERIES
MODEL EN400, EN400RP

PARTS LIST

Index No. Name Part
1 EN400 Latch
2 EN400RP Latch
3 Slider
Coil Assembly (12V)
4
Coil Assembly (24V)
5 Screws (2) #4-40 x 1/8" (Cover)
6 Frame Cover
7 Screws #4-40 x 1/4" (Coil)
8 Frame **
9 Assembly Pin*
10 Spring
11 Latch Pivot Pin
12 Slider Guard
13 Mounting Screws (2) #12-24 x 1/2" EN-MTS
14 Shim Kit (3) 1/16" Shim
Shim Screws (2) #6-32 x 1/4"
15
16 Shim Screws (2) #6-32 x 3/8"
5
4
6

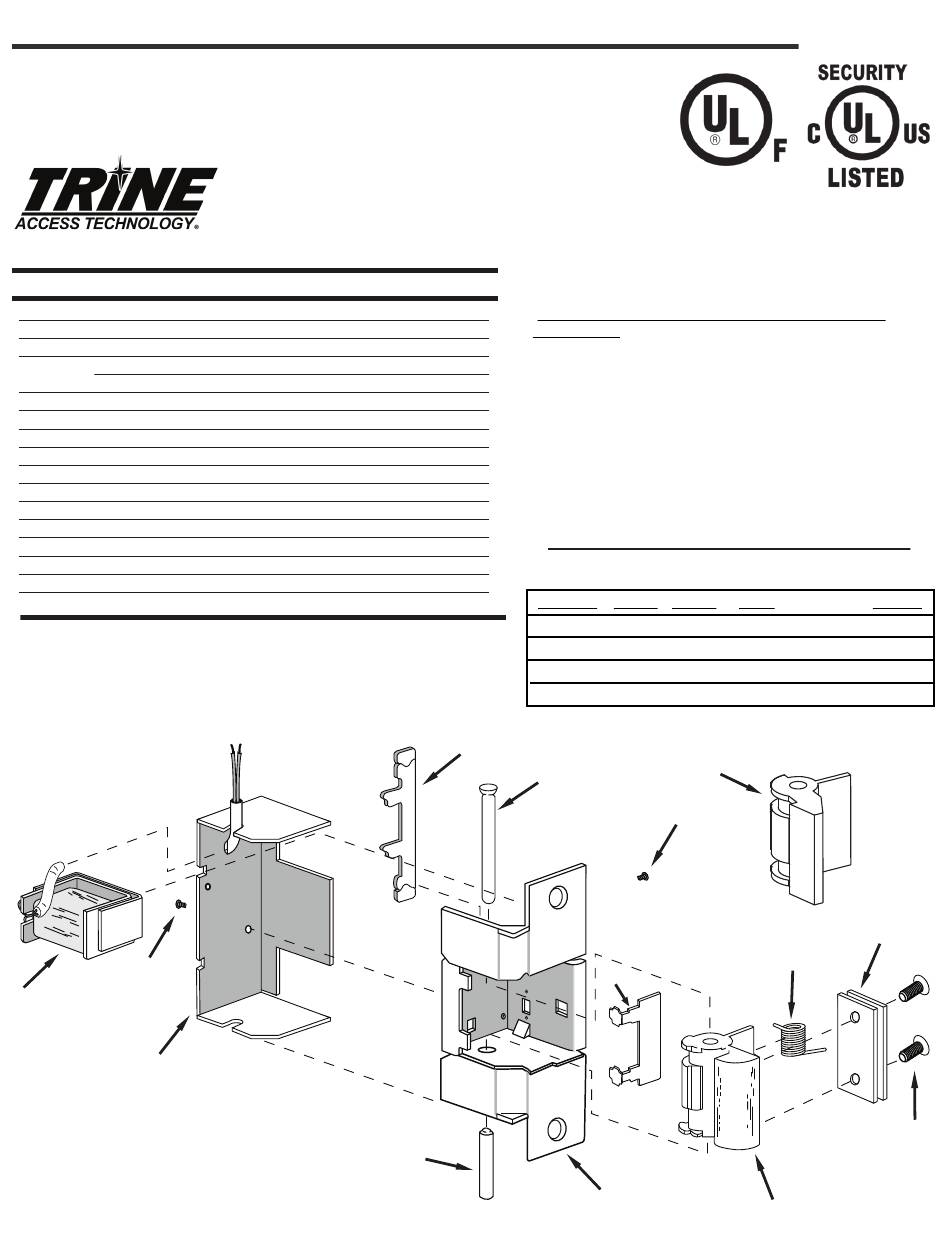

Figure 1
EN400 Electric Strike
- ELECTRIC STRIKE
TRINE ACCESS TECHNOLOGY
1440 Ferris Place, Bronx, NY 10461-3699
PH: 718-829-2332 -- FX: 718-829-6405
www.trineonline.com
Number
EN-LCH
EN- RPLCH
EN-SLR
EN-CA-12DC or EN-CA-12AC
EN-CA-24DC or EN-CA-24AC
EN-SCR 1/8
EN-FR.C
EN-SCR 1/4
EN-FR400
EN-ASS.PN
EN-SPR
EN-LCH-PV-ST
EN-GRD
EN-UNV-SHIM
EN-SHIM-SCR-S
EN-SHIM-SCR-L
9
NOTE: Number in parenthesis ( ) indicates part in Parts List.
UL LISTED - 10B fire rated (class A, 3-hour, Single Swing Doors)
[Except EN400RP]
UL LISTED - 1034 Burglary Resistant Locking
Mechanism for Indoor or Outdoor Use
ANSI/BHMA - A156.5 - 1992 - 4-7/8" x 1-1/4" Fits Cutout
Specification A115.1 (with Slight Jamb Modification)
BHMA - Grade 1
NYC MEA - 79-01-E
NOTE: UL fire listing is void when using fail safe action or
RP latch for Rim Panic Devices.
EN SERIES ELECTRICAL CHARACTERISTICS CHART
Voltage Amps Ohms
12AC 0.70
24AC 0.37
12DC 0.28
24DC 0.15
3
11
12
8
Duty
4.5 Intm.
18.0 Intm.
43.0 Intm./Cont.
164.0 Intm./Cont.
EN400RP LATCH
2
7
10
EN400
LATCH
1
Sound
Buzz
Buzz
Silent
Silent
14
15 & 16
