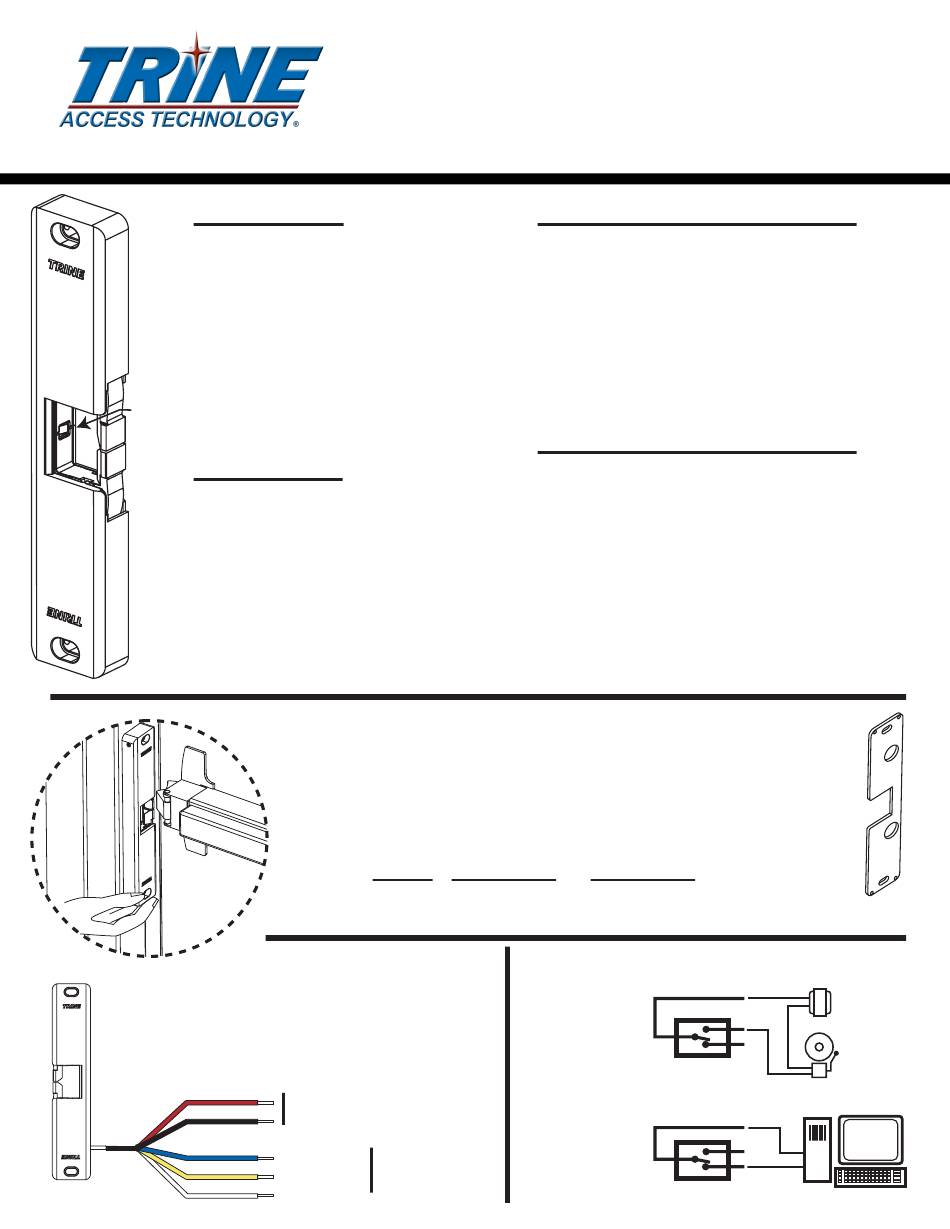

Trine 4850LB Specification And Instruction Sheet

Advertisement

Quick Links

P: (203) 730-1756 -- F: (203) 730-1781
www.trineonline.com
APPLICATION:
Remote central station notification
Local alarm monitoring
Triggering video surveillance and
recording systems
Active relay for trap door systems
For Indoor applications ONLY.
INFRARED
SENSOR
SENSOR WIRE
COLOR CODE
POWER LEADS:
Red
Black
RELAY LEADS:
Blue
Yellow
White
COLOR CODING ASSIGNMENTS
NOTE:
Please observe proper polarity for the LB sensor. The RED wire
terminal must be attached to the POSITIVE side and the BLACK wire
terminal must be attached to the NEGATIVE side.
BLUE COMMON (COM)
YELLOW - NORMALLY OPEN (NO)
WHITE - NORMALLY CLOSED (NC)
-
Positive
-
Negative
-
Common
-
Normally Open (NO)
-
Normally Closed (NC)
PREINSTALLATION CONSIDERATION:
When Mounting the 4800FLB, the pullman latch must be positioned as close
as possible to the vertical center of the latch cavity. Having the latch on
center will ensure that the sensor will have enough surface to detect.
You can use the 1/8" and 1/4" spacer (included, 1/4" is for 4850LB only) to
move the 4850LB/4800FLB closer to the panic bar.
VOLTAGE
12VDC
24VDC
30VDC
LB SENSOR WIRE TERMINAL
RED +
TO TRANSFORMER
BLACK -
12V THROUGH 30V DC
RELAY TERMINALS
TO USER DEVICE OR
SENSORS.
4850LB/4800FLB
SPECIFICATION AND
INSTRUCTION SHEET
TECHNICAL
®
SHARP
Normally Open and Normally Closed
contact terminals
Single pole, double throw, Form "C"
relay, rated at 1 Amp at 24 VAC or
24 VDC.
Sensor Power - 12 through 30 VDC (ONLY)
FEATURES:
Non-Mechanical operation
Sensor is concealed within the unit
Sensor does not require any adjustment
Ignores ambient light, detecting radiant
Infrared reflections off the pullman latch
Increase life and decrease in maintenance
due to electronic versus mechanical
operation
QUIESCENT
TRIGGER
CURRENT DRAW
CURRENT DRAW
13mA
23mA
20mA
35mA
22mA
39mA
WIRING SCHEMATICS FOR TYPICAL APPLICATIONS
For an alarm system a
Buzzer of Bell can be
wired to the NO terminal
such that when the door
is open the Buzzer or Bell
will sound.
For a security system
setup one side of the
circuit can be connected
to the common and the
other side to the NC
terminal so that when the
door is open, the system
senses the relay switch
as open
SPECIFICATIONS:
Infrared optical sensor
Spacer Plate
COMMON
NO
NC
RELAY
SECURITY SENSOR
COMMON
NO
NC
RELAY
TRANSFORMER
POWER
BUZZER OR
BELL
