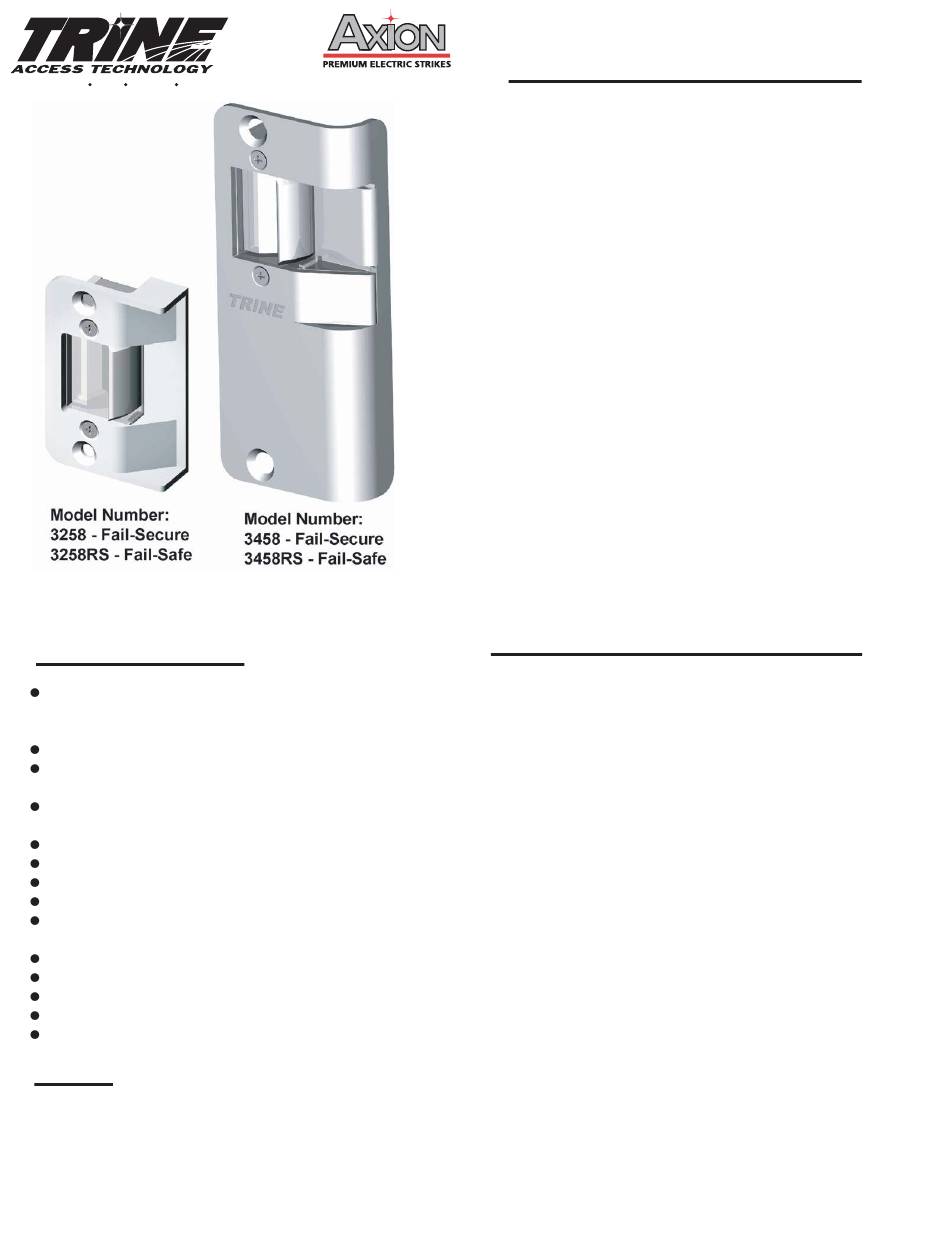

Trine 3258 Manual

1440 Ferris Place Bronx New York 10461-3699

STANDARD FEATURES:

Face Plate - 3258, 2-5/8" x 5/8" -
3458, 4-5/8" x 1-9/16" -
All stainless steel locking components
Fail-Secure:(standard action) unlocks with power
applied (MODELS #3258 & #3458)
Fail-Safe: RS (reverse action) unlocks when power is off
(MODELS #3258RS & MODELS #3458RS)
Mortise Type - 1" backset (Smallest in the Industry)
Durability - 500,000 Life Cycles
Holding Force - 1,200 Pounds
Latch Cavity: Width 5/8", Height 1-1/8", Depth 1/2"
Handed - The 3258 is non-handed. The 3458 is handed,
LH for left hand or RH for right hand
Heavy-duty latch spring

Silent Operation

Intermittent Duty
Micro Solenoid assembly
Low current draw

FINISHES:

Satin Stainless Steel - US32D (3458 ONLY)
Satin Chrome - US26D (3258 ONLY)
Dark Bronze - US10B
Bright Chrome - US26
1
Non-Handed
Must order LH or RH
TRINE 3000 SERIES ELECTRIC RELEASES:
Congratulations on the purchase of this quality TRINE
security product.
This product has been designed to install easily,
perform reliably, and provide years of trouble free
security.
In order for this product to fulfill its objectives, certain
steps must be performed by the installer, and certain
site conditions must be satisfied.
Before proceeding with your installation, please review
the following list of items. If you have any questions
first please finish reading this document to see if the
information you require is contained in this document,
otherwise please call TRINE TECH SUPPORT (718) 829-
2332 EXT. 425, or visit the TRINE Website
www.TrineOnline.com.
Both the TRINE Model #3258 & Model #3458 are
designed for new installation or retrofitting into
Aluminum frames. Be sure that you have ordered the
correct TRINE strike for your application.

RECOMMENDED INSTALLATION SEQUENCE:

1. Verify strike is proper for the door into which it is to be
installed.
2. Verify that you have all parts required to complete the
installation.
3. Verify that the new electric release operates with the
existing power supply/control circuit (retrofit
applications); or verify that the new power supply/
control circuit operates the new electric release (new
installations).
4. Locate and clearly mark the circuit breaker which
provides ac power to your transformer/ power supply
or that supplies power to the receptacle into which you
will plug your transformer/power supply. This will
enable you to safely cut power during installation, and
permit troubleshooting if required.
5. Verify that the receptacle or circuit providing power to
the electric release is not controlled by a wall switch,
time clock, or other external device.
6. Verify that the circuit/receptacle used for the locking
system is not powering any other equipment.
Remember that interruption of power to your locking
system could prevent access into the protected area,
or jeopardize the security/safety of the site's
occupants.
7. Verify that the door and associated components are in
good working order.
8. Install electric release as per attached guidelines.
9. Wire electric release as per attached guidelines.
10. Perform final test of completed installation.
Be sure that you have ordered the correct TRINE strike for
your application.
