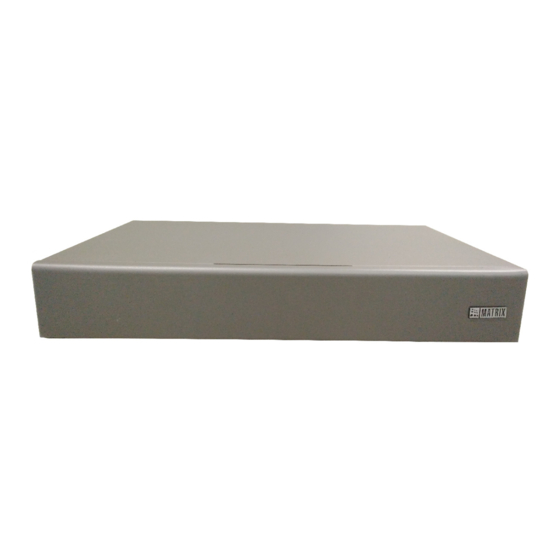

Matrix SATATYA PARAM NVR8S Quick Start Manual

Video surveillance solution
Hide thumbs Also See for SATATYA PARAM NVR8S:
Table of Contents

Advertisement

Quick Links

SATATYA NVR
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATATYA PARAM NVR8S and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix SATATYA PARAM NVR8S

Summary of Contents for Matrix SATATYA PARAM NVR8S

  • Page 1 SATATYA NVR Quick Start...
  • Page 2 S E C U R I T Y S O L U T I O N S Matrix SATATYA PARAM NVR Video Surveillance Solution Quick Start...
  • Page 3 Neither Matrix Comsec nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs or expenses incurred by the buyer or third parties as a result of: accident, misuse or abuse of this product or unauthorized modifications, repairs or alterations to this product or failure to strictly comply with Matrix Comsec's operating and maintenance instructions.
  • Page 4 Certification Devices Compliance Certification Completed: NVR8S, NVR0801X, NVR0801X P2, NVR1601X, NVR1601X P2, NVR1602X, NVR1602X P2, NVR3202X, NVR3204X, NVR6404X, NVR6408X Certification in-progress: NVR0401XS P2, NVR0801XS P2, NVR1601XS P2 NVR3202X P2, NVR3204X P2, NVR6404X P2, NVR6408X P2, NVR9608X P2 Certification Completed: HVR0408S/HVR0408P, NVR24P Version 8 Release date: July 19, 2023...

  • Page 5: Table Of Contents

    Contents Know Your SATATYA NVR ................1 Naming Convention of NVRXS P2 series ............2 Naming Convention of NVRX P2 series ............3 Naming Convention of NVRX series ..............3 The Interfaces ....................4 NVRX Panel ...................... 5 The User Interface ................... 12 Installing SATATYA NVR ................
  • Page 6 Table of Contents...

  • Page 7: Know Your Satatya Nvr

    Know Your SATATYA NVR Thank you for choosing the Matrix SATATYA NVR. This Quick Start is meant to help you get familiar with SATATYA NVR/NVRX/NVRX P2 Series, install the device and configure its basic parameters. To view or download the documents related to this product, scan the QR Code printed on the Product Label/Packaging Label.

  • Page 8: Naming Convention Of Nvrxs P2 Series

    NVR6408X: This NVR is having configuration of maximum 64 IP channels and 8 hard disk. Naming Convention of NVRXS P2 series SATATYA IP Channels Hard Disks Extreme Standard P2 Variant Product 04: 4CH 01:1HDD Name 08: 8CH 16: 16CH Matrix SATATYA NVR Quick Start...

  • Page 9: Naming Convention Of Nvrx P2 Series

    Please read this document carefully before you begin the installation, and retain it for future reference. For complete product information and for detailed instructions on the installation and configuration of SATATYA NVR/NVRX/NVRX P2, you may refer the Matrix SATATYA System Manual. Matrix SATATYA NVR Quick Start...

  • Page 10: The Interfaces

    The Interfaces Matrix SATATYA NVR Quick Start...

  • Page 11: Nvrx Panel

    Internet over a DSL Modem or (RJ45) Router. Ethernet Speed:10/100/1000Mbps Press and hold down the reset button for atleast 4 seconds to default the following parameters. Reset • LAN Settings • User Settings • General Settings Matrix SATATYA NVR Quick Start...
  • Page 12 General Specifications Parameters NVR0401XS P2, NVR0801XS P2, NVR1601XS P2 Power Supply 12VDC, 2A Operating Temperature 0°C to +45°C (32°F to 113°F) Humidity 5% to 95% RH Non-Condensing NVR0801X/NVR1601X/NVR0801X P2/NVR1601X P2 NVR1602X/NVR3202X/NVR1602X P2 Matrix SATATYA NVR Quick Start...
  • Page 13 NVR3202X P2 USB 1 Audio (Scheduled Alarm Power Alarm Backup) Reset HDMI LAN 1 LAN 2 USB 3 Power Audio Status USB 2 (Manual 12VDC 3.3A Backup) NVR3204X/NVR6404X/NVR6408X Matrix SATATYA NVR Quick Start...
  • Page 14 NVR3204X P2/NVR6404X P2/NVR6408X P2/NVR9608X P2 USB 1 Power (Scheduled Alarm Audio LAN 1 LAN 2 Alarm Backup) HDMI Audio USB 3 Reset Status (Manual Backup) Power Supply USB 2 (100-240V AC 50-60Hz) Matrix SATATYA NVR Quick Start...
  • Page 15 Parameters NVR0801X P2, NVR1601X P2, NVR1602X NVR6404X P2, NVR6408X P2, P2, NVR3202X, NVR3202X P2 NVR9608X P2 Power Supply 12VDC, 5A SMPS Operating Temperature 0°C to +50°C (32°F to 122°F) Humidity 5% to 95% RH Non-Condensing Matrix SATATYA NVR Quick Start...
  • Page 16 Backup Device full 1000 - ON and 2000 – OFF 500 - ON and 500 – OFF Green No Backup Device 1000 - ON and 3000 – OFF 500 - ON and 500 – OFF Matrix SATATYA NVR Quick Start...
  • Page 17 500 - ON and 500 – OFF Green Temperature reached 105 degree System shuts down N.A. Steady System automatically After crossing 100 degrees, Temperature comes in normal stage and N.A. comes back to less than 100 degree cadence stops Matrix SATATYA NVR Quick Start...

  • Page 18: The User Interface

    Client. You can access all the features and configure the NVR settings from the Monitor connected to your NVR. You can also operate the device using a USB Mouse and USB Keyboard. Remote View SATATYA NVR offers you two options for Remote View: A Device Client and SATATYA SIGHT. Matrix SATATYA NVR Quick Start...
  • Page 19 For enhanced accessibility and faster navigation, various functions in the Local Client can be performed using keyboard shortcuts. A list of available shortcut keys with the action they perform, have been broadly classified and mentioned in the Matrix SATATYA System Manual. Refer the same for detailed information.
  • Page 20 Matrix SATATYA NVR Quick Start...

  • Page 21: Installing Satatya Nvr

    • 1 HDD SATA Cable NVR1602X/NVR3202X/NVR1602X P2/NVR3202X P2 • A 12VDC @ 5A power adapter • 8 HDD fitting screws • 2 HDD Power Cable • 2 HDD SATA Cable • 2 Clamps for Rack Mounting Matrix SATATYA NVR Quick Start...

  • Page 22: Things You Will Need

    • The SATATYA NVR is meant for indoor installations only. • The SATATYA NVR unit can be mounted on a rack or placed on any stable flat surface such as a desk. Matrix SATATYA NVR Quick Start...
  • Page 23 • Refer to the following diagrams for the location of screws that you will need to remove and secure when installing the hard disks and the rack mounting side clamps. NVR0401XS P2/NVR0801XS P2/NVR1601XS P2 156.77 Matrix SATATYA NVR Quick Start...
  • Page 24 NVR0801X/NVR1601X/NVR0801X P2/NVR1601X P2 NVR1602X/NVR3202X/NVR1602X P2/NVR3202X P2 Matrix SATATYA NVR Quick Start...
  • Page 25 NVR3204X/NVR6404X/NVR3204X P2/NVR6404X P2 NVR6408X/NVR6408X P2/NVR9608X P2 Matrix SATATYA NVR Quick Start...

  • Page 26: Installing The Hard Disk

    NVR can cause permanent damage to them. Before you begin the installation of the hard disk, make sure your workstation is static-free. Always wear an electrostatic discharge preventive wrist strap or belt and use a grounding mat. Matrix SATATYA NVR Quick Start...
  • Page 27 This section includes the common procedure of installing single Hard Disk in all the above mentioned variants. Hard Disk Mounting Unscrew three screws at the bottom on the enclosure. Slide the top cover backwards to remove. Matrix SATATYA NVR Quick Start...
  • Page 28 Place the HDD onto the HDD Stand-up. • Align the holes of the HDD with that of the enclosure. Matrix SATATYA NVR Quick Start...
  • Page 29 Inside the package you will find one SATA cable for the hard disk and one Power cable. Plug one end of the SATA cable(01) and Power cable (01) into the respective connectors on the hard disk and the other ends (02) of the cable as shown below. POWER TO SATA connection Matrix SATATYA NVR Quick Start...
  • Page 30 Hard Disk Mounting Loosen the screws at the side panel to remove the top cover. Fix four screws in the HDD (Do not fit the screws completely, turn just two - three rounds). NVR0801X/NVR1601X/NVR0801X P2/NVR1601X P2 Matrix SATATYA NVR Quick Start...
  • Page 31 Turn the device upside down and then turn the screw using a magnetic screw driver to fix the HDD firmly as shown below. Maximum torque to be applied for tightening the screws is 3 kgf.cm. Applying more than specified torque will cause a damage to the HDD and the emboss. Matrix SATATYA NVR Quick Start...
  • Page 32 NVR1601X P2 and two in NVR1602X/NVR1602X P2 and NVR3202X/NVR3202X P2 for each hard disk. Plug the SATA cables and power cables into the respective connectors on the hard disk as shown below. NVR0801X/NVR1601X/NVR0801X P2/NVR1601X P2 Matrix SATATYA NVR Quick Start...
  • Page 33 Loosen the screws at the side panel to remove the top cover. Take the clamp and place the Hard Disk inside the clamp. Secure the HDD inside the Clamp with the four screws provided using the magnetic screw. Matrix SATATYA NVR Quick Start...
  • Page 34 Maximum torque to be applied for tightening the screws is 3 kgf.cm. Applying more than specified torque will cause a damage to the HDD and the clamp. Similar alignment can be done in NVR6408X/NVR6408X P2/NVR9608X P2 with the eight Hard Disks as shown below. Matrix SATATYA NVR Quick Start...
  • Page 35 Inside the package you will find four SATA cable in NVR3204X/NVR3204X P2 and NVR6404X/ NVR6404X P2 and eight in NVR6408X/NVR6408X P2/NVR9608X P2 for each hard disk. Plug the SATA cables and power cables into the respective connectors shown below on the hard disk. Matrix SATATYA NVR Quick Start...
  • Page 36 Similar connections can be done in NVR6408X/NVR6408X P2/NVR9608X P2. Connectors are shown below. SATA Connectors(1-8) Matrix SATATYA NVR Quick Start...

  • Page 37: Connecting Devices

    One Audio input channel is available on your NVRX variant to which you can connect one microphone. • If you are connecting a Mic, connect the wire from the Mic to the Audio IN port of your NVR. Matrix SATATYA NVR Quick Start...
  • Page 38 • You can connect 1 alarm device to NVRX variants. Connect the wires from the Alarm device (Hooter or Siren) you have installed into the ALARM OUT port on the rear panel. The wires must be fed into the terminal block plug provided to you. Matrix SATATYA NVR Quick Start...
  • Page 39 USB ports labeled Backup. • For Manual and Scheduled backup connect the device to the USB port. Refer to “LED And Buzzer State”. Mouse/Keyboard • Connect a wired or wireless Mouse or Keyboard to USB port. Matrix SATATYA NVR Quick Start...

  • Page 40: Connecting Power Supply

    Power Supply 12VDC, 2A • If you have completed all the connections you want to make, plug the Power Adapter into the power outlet. Switch on the power supply. Wait for the reset cycle to complete. Matrix SATATYA NVR Quick Start...

  • Page 41: Accessing The Satatya Nvr

    Make sure the LAN PC and NVR are in the same network. • Switch on power supply to your NVR. • The Matrix corporate logo will appear on your screen. • The default Live View monitoring layout (4x4) will appear on your monitor screen.
  • Page 42 Click OK to save or click Cancel to discard. The Login pop-up appears again. The Username and Password are auto-filled. The Password is the one that you set in the Create Password pop-up. Click Login. Matrix SATATYA NVR Quick Start...
  • Page 43 Local Client and then connect the NVR to the LAN switch. You can cancel the Quick Setup process by clicking Quit. However, these parameters can also be configured later from the detailed configuration links. For details refer to the Matrix SATATYA System Manual.

  • Page 44: Accessing The Remote Client

    Minimum 1024 x 768 Graphics Accelerator DirectX 9.0 Network Interface card 10/100 Base-T network adapter Default LAN IP Addresses: LAN 1 IP Address: 192.168.1.123 Subnet Mask: 255.255.255.0 LAN 2 IP Address: 192.168.2.2 Subnet Mask: 255.255.255.0 Matrix SATATYA NVR Quick Start...
  • Page 45 192.168.111.165 as set from the Local Client. Press the Enter key on your keyboard. • Click Download to download the Device Client Setup. • Click on your PC search option and enter Device Client Setup. Click the same. Make sure you run the setup from the administrator login. Matrix SATATYA NVR Quick Start...
  • Page 46 • Select the Auto start application on system boot check box, if you want the application to be launched every-time at the time of system boot. If enabled then the Device Client opens automatically on your screen, whenever the system boots. Matrix SATATYA NVR Quick Start...
  • Page 47 User should not enable the same while installing the Device Client setup. For System Engineers, Multiple Installation will require an Authentication Key. Only after the successful authentication, they can proceed with the Multiple Installation. For Authentication Key, please contact our Technical Support Team. Matrix SATATYA NVR Quick Start...
  • Page 48 • Double-click on the icon to launch the Device Client Application. • The Login page appears. Enter the IP Address of NVR you set, for example 192.168.111.165 in the Address Bar and press Enter key on your keyboard. Matrix SATATYA NVR Quick Start...
  • Page 49 “Accessing the Local Client”. Make sure your PC and NVR are in the same network. If you set the Password from the Device Client, then you can access the Local Client using the same Password. Matrix SATATYA NVR Quick Start...
  • Page 50 Click Quick Setup from the left pane, if you wish to configure the basic parameters of NVR such as Date and Time, Network, Storage, Camera Configuration and Search Camera quickly. The Quick Setup Wizard Welcome page appears. Matrix SATATYA NVR Quick Start...
  • Page 51 You can cancel the Quick Setup process by clicking Quit. However, these parameters can also be configured later from the detailed configuration links provided in the Device Client. For details refer to the Matrix SATATYA System Manual. SATATYA NVRX allows nine simultaneous login sessions on the Device Client.
  • Page 52 Matrix SATATYA NVR Quick Start...

  • Page 53: Quick Setup Wizard

    Always run wizard on device startup option appears only in the Local Client. To navigate through the Quick Setup Wizard, click Next. Click each link for details: • “Time and Language” • “Network” • “Storage” Matrix SATATYA NVR Quick Start...
  • Page 54 Synchronize NVR Time Zone to ONVIF cameras: Select this check box to sync the Time Zone as well as Date and Time of NVVR with the connected cameras. The Synchronize NVR Time Zone to ONVIF Cameras is applicable only if UTC Time is selected as the Synchronize Camera Time With option. Matrix SATATYA NVR Quick Start...
  • Page 55 Device Client so that they appear in the Language drop-down list. • The updated language will be reflected in the Device Client or vise-versa after next login. Network Configure the Network parameters for LAN 1 and LAN 2 as follows: Matrix SATATYA NVR Quick Start...
  • Page 56 • Gateway: Configure the IP Address of the Gateway to be assigned to the LAN Port of NVR. DHCP: Click the DHCP radio button to select this option. The DHCP Server automatically assigns an IP Address, Subnet Mask and Gateway Address to the LAN Port of NVR. Matrix SATATYA NVR Quick Start...
  • Page 57 If you have selected IP Assignment Mode as DHCP, you can select either Automatic or Static as the DNS Mode. If you select the Automatic radio button the DNS Server in your network will automatically provide the translation of Domain Names to IP Addresses. Matrix SATATYA NVR Quick Start...
  • Page 58 IP Address: Configure an IP Address to be assigned to the LAN Port of NVR. Subnet Mask: Configure the Subnet Mask to be assigned to the LAN Port of NVR. Gateway: Configure the IP Address of the Gateway to be assigned to the LAN Port of NVR. Matrix SATATYA NVR Quick Start...
  • Page 59 Storage page appears on the screen as No Disk Found if the Hard Disks (HDD) are not connected with the device. Once the HDDs are connected you can configure the storage for your NVR as follows: Matrix SATATYA NVR Quick Start...
  • Page 60 Space, Free Space, Status and Format options of the connected disks. Click Format of the desired disk if you wish to format it. Configure Camera This page allows you to configure the parameters for the cameras to be added to the NVR. Matrix SATATYA NVR Quick Start...
  • Page 61 This option enables you to set the streaming parameters for the defined cameras. Configure the parameters for the Main Stream and Sub Stream as follows: Video Encoding: Click the picklist and click again to select the desired Video Encoding option. Matrix SATATYA NVR Quick Start...
  • Page 62 The camera streams with custom resolution of minimum 64pixels and maximum 8192pixels will be displayed in the Live View. The VGA resolution, that is 640x480 is supported in all Matrix Cameras supported by NVR/NVRX, except the following: • SATATYA CIBR13FL40CW •...
  • Page 63 Click Test to test the Camera. If the Cameras are not added and you wish to auto configure all the cameras, then select the check boxes of the desired cameras and click Add. Matrix SATATYA NVR Quick Start...
  • Page 64 You can also access the Quick Setup from the Device Client. The configurations are similar to that of the Quick Setup in the Local Client. For details refer to the Matrix SATATYA System Manual.
  • Page 65 • To change other configuration settings, click Settings . The following screen appears: Click the desired link to change the configurations. After to have completed the desired configurations and if you wish to exit the application, click Logout from the Toolbar. Matrix SATATYA NVR Quick Start...
  • Page 66 Matrix SATATYA NVR Quick Start...

  • Page 67: Configuring Satatya Nvr

    • In the address bar enter the current IP Address of your NVR and press the Enter key of your keyboard. • Enter the Username (default: admin) and Password (as set by you). • Click Login. Matrix SATATYA NVR Quick Start...

  • Page 68: Configuring Network Settings

    Ask your network administrator for information on the IP Addressing used by the network to which your NVR is connected. From Local Client • Hover the mouse at the bottom of the monitor screen to invoke the Toolbar. • Click Settings Matrix SATATYA NVR Quick Start...
  • Page 69 • In the address bar enter the current IP Address of your NVR and press the Enter key of your keyboard. • Enter the Username (default: admin) and Password (as set by you). • Click Login. • Click Device Configuration in the left pane. • Click Network Settings. Matrix SATATYA NVR Quick Start...
  • Page 70 • Select PPPoE, if your network uses this protocol for IP addressing. While the IP Address and the Subnet Mask will be assigned automatically by the PPPoE Server, you will need to configure the PPPoE User Name and Password for the connection. • Click Save. Matrix SATATYA NVR Quick Start...
  • Page 71 DHCP Server is a network server that automatically provides and assigns IP Addresses, Default Gateways and other Network parameters to the client devices. NVR support a DHCP Server. To use the DHCP Server, you must configure the following: Matrix SATATYA NVR Quick Start...
  • Page 72 • Enter the DNS Address to be assigned to the DHCP Clients. • Enter the Lease Hours. This is the maximum time for which the IP Address will be allocated to the DHCP Client. Valid Range: 1 to 192 hours. DHCP Clients should renew Matrix SATATYA NVR Quick Start...
  • Page 73 — IP Address, MAC Address, Host Name, Lease Time (that is the remaining Lease Hours) is displayed here. For detailed description of all the parameters, refer to the Matrix SATATYA System Manual. Close the configuration window to return to the Live View screen.
