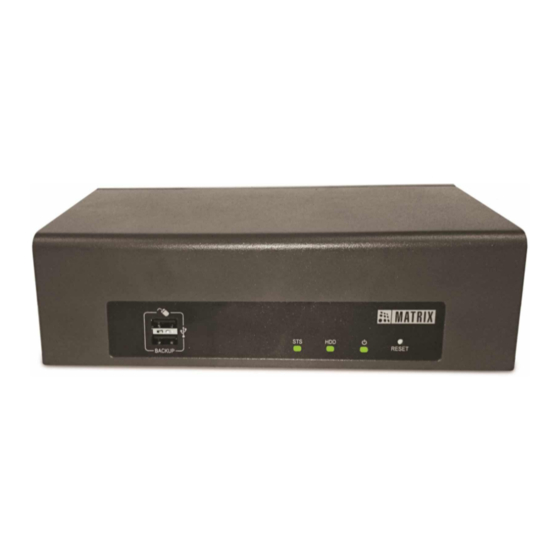

- Page 1 SATATYA HVR Quick Start...
- Page 3 S E C U R I T Y S O L U T I O N S Matrix SATATYA HVR Video Surveillance Solution Quick Start...
- Page 4 Neither Matrix Comsec nor its affiliates shall be liable to the buyer of this product or third parties for damages, losses, costs or expenses incurred by the buyer or third parties as a result of:...
-
Page 5: Table Of Contents
Contents Contents ......................i Know Your SATATYA HVR ................1 Satatya HVR Utilities ..................2 The Interfaces ....................2 The Front Panel ....................3 The Rear Panel ....................8 The User Interface ................... 14 The IR Remote Control ................... 16 Installing SATATYA HVR ................ -
Page 6: Know Your Satatya Hvr
HVR16/8 in document refers to HVR16 and HVR08. For complete product information and for detailed instructions on the installation and configuration of SATATYA HVR, you may refer the Matrix SATATYA HVR System Manual. A copy of the manual is provided to you on the product CD. -
Page 7: Satatya Hvr Utilities
Satatya HVR Utilities Recording Backup LiveView Utilities PlayBack The Interfaces Matrix SATATYA HVR Quick Start... -
Page 8: The Front Panel
HVR 16/8P (HVR 1624P and HVR 0824P) Cancel Enter USB 2 USB 1 (Manual (Mouse) Display Record Status Arrow buttons Back up LAN1 Back up) Power Search Toolbar Channels LEDs HVR 16/8S (HVR 1624S and HVR 0824S) Power Hard disk Status Matrix SATATYA HVR Quick Start... - Page 9 This button is also Display mapped to the Default button on the menu screens. Loads the Playback Search option for recorded Search files.This button is also mapped to the Refresh button on the menu screens. Matrix SATATYA HVR Quick Start...
- Page 10 Also used to navigate on the virtual keyboard. To scroll though the various values available for each Down parameter of a Arrow functionality. Keys Also used to navigate on the virtual keyboard. Matrix SATATYA HVR Quick Start...
- Page 11 1000 ON–3000 OFF Disk Full. 1000 ON–1000 OFF Formatting Disk. 1000 ON–2000 OFF Firmware upgrade in progress. 1000 ON–1000 OFF Firmware upgrade failed. HDD1/ Green Steady Disk normal. HDD2 Green 1000 ON–2000 OFF Disk error. Matrix SATATYA HVR Quick Start...
- Page 12 HVR is connected to the network Green Steady Green LED is not illuminated HVR is disconnected from the network Green 2000 ON–1000 OFF Changing the IP Address of HVR Channel Green Steady Camera is connected to the respective channel Matrix SATATYA HVR Quick Start...
-
Page 13: The Rear Panel
HVR 0824P Audio In RS-485 1&2 Video IN USB-3 Audio Out Video Out Remote LAN-2 LAN-1 Alarm IN Audio IN (Main & Spot) Alarm Out Power Reset USB-4 Video HDMI-1 HDMI-2 Loop Out VGA Out Matrix SATATYA HVR Quick Start... - Page 14 Reset Audio HDMI USB-4 Video Alarm In RS 485 Alarm Out Audio In 1&2 HVR 0408P RS-485 Alarm IN Alarm Out HVR 0408S Note: For 15 pin connector, consider pin1 from the left most pin. Matrix SATATYA HVR Quick Start...
- Page 15 A and B ports of HVR in RS485 loop. Push Type RS 485 The dip Terminal switches on the PTZ cameras are used to set the RS485 address of the cameras. Matrix SATATYA HVR Quick Start...
- Page 16 Mouse, Mouse, used for Mouse, Mouse, connecting USB -4 USB Ports Schedule Dongle, Schedule Dongle, the USB Flash d Backup Schedule d Backup Schedule drive for d Backup d Backup Scheduled back up. Matrix SATATYA HVR Quick Start...
- Page 17 CVBS Video monitor for Out-Main local viewing, to access HVR controls configuration settings from the display. The “Spot” connector is used to Video connect a Out-Spot CVBS monitor configured for local viewing only. Matrix SATATYA HVR Quick Start...
- Page 18 Video DB-15 used for Loop Out direct (9-16): monitoring of connected video cameras. In HVR4 channel, there is only one LAN/ Ethernet port so consider as LAN1 and HDMI port as HDMI1in this document. Matrix SATATYA HVR Quick Start...
-
Page 19: The User Interface
Receiver to your HVR and use the Remote Control from a distance of 100 meters depending on the quality of the cable used. IR Extension is useful when the SATATYA HVR is located at considerable distance from you. Matrix SATATYA HVR Quick Start... - Page 20 SATATYA CMS (SATATYA Core) Matrix SATATYA CMS is a centralized video surveillance application server to monitor and control multiple recording devices from a single location. Using SATATYA CMS, you can view upto 36 video channels in a single window. The CMS application software is provided to you on the product CD of your HVR.
-
Page 21: The Ir Remote Control
SATATYA MV. SATATYA MV supports live viewing of any one channel and is available for Android-based phones and iPhone To know more, read the User Guides Matrix SATATYA MV for Android and Matrix SATATYA MV for iPhone. The IR Remote Control... - Page 22 To navigate to the next frame, when the HVR is in playback mode. To select the Layout from the various layout templates of the HVR. Display This button is also mapped to the Default button on the configuration menu screens. Matrix SATATYA HVR Quick Start...
- Page 23 • Click the digits or alphabets on the virtual keypad with the mouse and press the Enter button. • Click the space bar to insert space. • Click the Shift key to change case (upper case or lower case) for the alphabets. Matrix SATATYA HVR Quick Start...
- Page 24 • keypad. • Navigate the virtual keypad characters by pressing the Up, Down, Forward, Back arrow buttons on the Remote Control and press the Enter button on the Remote Control to select the desired characters. Matrix SATATYA HVR Quick Start...
-
Page 25: Installing Satatya Hvr
• At least one SATA Video Surveillance Hard Disk (upto 4TB), if you want to record on a hard disk in the HVR. • A USB mouse (Wired or Wireless) to operate the HVR, if required. Matrix SATATYA HVR Quick Start... -
Page 26: Preparing For Installation
If you choose rack mounting, fix the side clamps and then mount the device. • Refer to the following diagrams for the location of screws that you will need to remove and secure when installing the hard disks, wall mounting and rack mounting side clamp. Matrix SATATYA HVR Quick Start... - Page 27 HVR16/8P (HVR 1624P & HVR 0824P) For Rack Mounting TOP COVER SCREWS REAR VIEW 265.00 12.75 TOP VIEW 31.75 445.00 466.00 483.00 FRONT VIEW Matrix SATATYA HVR Quick Start...
- Page 28 • The top cover screws are located on the rear panel and the side panels. Remove the top cover screws and slide open the cover. • Inside the device, you will find two sets of SATA power cable and data cable for each hard disk. Matrix SATATYA HVR Quick Start...
- Page 29 • Now Place the Clamp fitted with Hard disk on the bottom plate, align with the screws on the plate. HVR16/8P (HVR 1624P & HVR 0824P) POWER CONNECTORS HDD 1 SATA POWER SATA DATA HDD 2 SATA DATA CABLE CABLE CONNECTORS HDD 3 HDD 4 Matrix SATATYA HVR Quick Start...
- Page 30 HVR16/8S (HVR 1624S & HVR 0824S) HVR4 (HVR 0408P & HVR 0408S) • Replace the top cover and secure it with the screws. HVR 4 HVR 16/8S Matrix SATATYA HVR Quick Start...
-
Page 31: Connecting Devices
Video Out port of HVR to access the controls and configuration settings from the display. If you have connected the VGA OUT and the HDMI OUT of the HVR to the same monitor, you must select interface for viewing on the monitor. Matrix SATATYA HVR Quick Start... - Page 32 • You can connect upto 3 alarm devices to your HVR16/8P and 1 alarm device to HVR 16/8S and HVR 0408P . Connect the wires from the Alarm device (Hooter or Siren) you have installed into the ALARM OUT port on the rear panel. Matrix SATATYA HVR Quick Start...
- Page 33 Device Front Panel Rear Panel USB1 USB2 USB-3 USB-4 HVR1624P USB Mouse Manual Backup Mouse/Dongle Schedule Backup Mouse, Mouse, GSM Dongle, HVR1624S Manual Backup Scheduled Backup HVR0824P USB Mouse Manual Backup Mouse/Dongle Schedule Backup Matrix SATATYA HVR Quick Start...
-
Page 34: Connecting Power Supply
Supply (UPS) for continuous operation. • If you have completed all the connections you want to make, plug the power adapter into the power outlet. Switch on the power supply. Wait for the reset cycle to complete. Matrix SATATYA HVR Quick Start... -
Page 35: Accessing The Satatya Hvr
• Select the Input for the monitor you have connected. • Switch on power supply to your HVR. • The Matrix corporate logo will appear on your screen. • The default monitoring layout which appears on the monitor screen is (4x4) for HVR with 16/ 8 channels and (2x2) for HVR with 4 channels. -
Page 36: Accessing The Remote View
• The IP Address of your HVR. Use the default IP Address of LAN 1 or LAN 2 when accessing for the first time. • A network computer with • Operating Systems: Windows® XP or higher • Processor: Pentium IV at 1.8 GHz Matrix SATATYA HVR Quick Start... - Page 37 • If your network has dynamic IP Address assignment, it would be difficult to know the current IP Address of the HVR. You may use the Matrix DNS Server or the Dynamic DNS to assign a domain Name to the HVR. Each time you want to access the HVR from a remote location, you can use the name instead of the IP Address.
- Page 38 • Log in as Administrator. The HVR display screen will open, with the default display layout as shown below: • On the right pane of the window, right click on the device icon and select Connect All option. • The images captured on the cameras will appear on the display. Matrix SATATYA HVR Quick Start...
- Page 39 To know more about the HVR controls and configuration settings available on the Device Client, read the Matrix SATATYA HVR System Manual. SATATYA HVR allows nine simultaneous login sessions on the Device Client. • If you are using Mozilla Firefox or Google Chrome, on typing the IP Address of SATATYA HVR, the download window will open.
- Page 40 • Click on Next button to proceed with the installation process. If required, you may change the Path of the folder where the Device Client should be installed. The Installation Successful window appears as shown below. • Click on Finish to complete the installation.The Matrix SATATYA Device Client window will open Matrix SATATYA HVR Quick Start...
- Page 41 • The SATATYA Device Client Login will appear. • Log in as Administrator, on the right pane, right click on the device name and select Connect All option. The images captured on the cameras will appear on the display. Matrix SATATYA HVR Quick Start...
-
Page 42: Configuring Satatya Hvr
• Make sure the computer you are using has the SATATYA Web Client installed. • Open the Matrix SATATYA HVR Web Client on your computer. • In HVR Address, type the current IP Address of the HVR you want to access. -
Page 43: Configuring Network Settings
HVR is connected. From Local View • Invoke the toolbar using the mouse or remote control. • Click the Settings icon on the toolbar. • Click Network Settings and then click either LAN 1 or LAN 2. Matrix SATATYA HVR Quick Start... - Page 44 When you click/select the User Name and Password field, the Virtual Keypad will appear, enabling you to enter alphanumeric characters. • Click the Save button. • Close the configuration window to return to the display. Matrix SATATYA HVR Quick Start...
- Page 45 • Configure IP Address, the Subnet Mask and the Gateway address of LAN 2 on the LAN 2 Settings page similar to LAN1 Settings From Remote View • Open the Matrix SATATYA HVR Web Client on your computer. • In HVR Address, type the current IP Address of the HVR you want to access. • Click Go.
- Page 46 S E C U R I T Y S O L U T I O N S MATRIX COMSEC Head Office: 394-GIDC, Makarpura, Vadodara - 390010, India. Ph:+91 265 2630555, +919374474302 E-mail: Support@MatrixComSec.com Website: www.MatrixSecuSol.com...
