Living Spaces Oliver Assembly Instructions

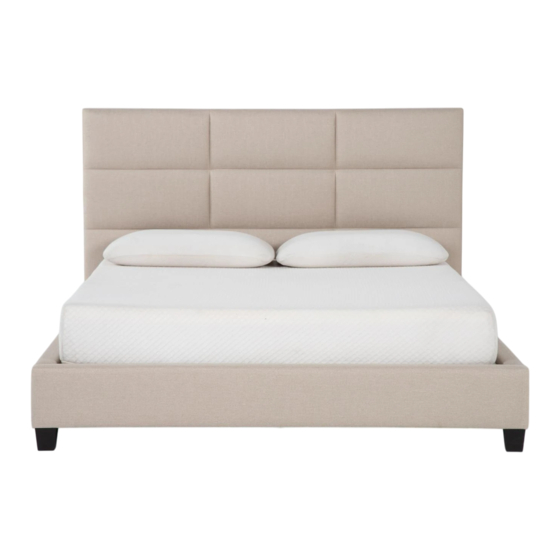

Oliver C/E King Assembly Instructions
Hardware included in side rails carton to attach bed feet and center support system.
A D F
Φ6*20MM Φ6 MM
H= 8 CM
8PCS 16PCS 2PCS
1
Step#1
Retrieve bed feet from carton packed in side rails carton.
Attach bed feet (F) to the footboard using Wrench (I), Bolt (R) .
Step#2
Attach side rails to headboard using Wrench (I), Bolt (B) and Washer (E)(factory installed).
Attach side rails to footboard using Wrench (I), Bolt (B) and Washer (E)(factory installed).
CONGRATULATIONS ON YOUR NEW BED PURCHASE
~Warning：do not move bed after final assembly as it may result in damages to floor and/or bed.~
G I
Φ8 MM Center support legs
Metal Slats
4PCS 1PC
J R
Φ8*60MM
H= 14 CM
8PCS 2PCS
2
T
Φ6*25MM
8PCS
*Bolt B and Washer E are
factory installed*
