Related Manuals for Magnetic mTripod
Summary of Contents for Magnetic mTripod

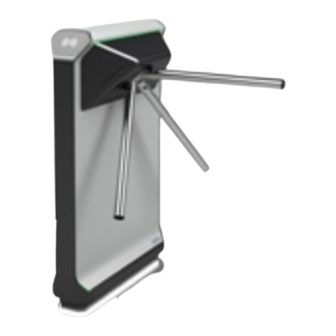

- Page 1 Description Turnstile mTripod MHTM™ FlowMotion® Control unit MGC mTripod Doc.ID: 5817,0025EN Version 03...
- Page 2 Control unit MGC mTripod Original description This document is available as PDF in the Magnetic Autocontrol download area (www. magnetic-access.com). Authorisation is required for download. MAGNETIC AUTOCONTROL GMBH Grienmatt 20 D-79650 Schopfheim Germany Phone +49 7622 695 5 Fax +49 7622 695 802 info@magnetic-germany.com...
-
Page 3: Table Of Contents
Control unit MGC mTripod Contents Contents Notices on the document Purpose and contents of this description Symbols and illustrations used in this document 1.2.1 Warning notes and notes Target group 1.3.1 Personnel – activities and qualifications Digital inputs, digital outputs and relay outputs... - Page 4 Control unit MGC mTripod Contents Parameterisation directly at the control unit MGC Changing menu language Entering password Control unit elements Displays of the control unit Symbols in the display 5.5.1 Control button functions 5.5.2 Further symbols Setting display contrast Protecting parameterisation from access Parameterising value Switching the "Service"...
- Page 5 Control unit MGC mTripod Contents Function description Definition of "left" and "right" Function sequence Start-up and regular movement sequence 7.3.1 Power-off state 7.3.2 Reference run – find home position 7.3.3 Start-up routine 7.3.4 Regular movement sequence 120° 7.3.5 Regular movement sequence 120°...
- Page 6 Control unit MGC mTripod Contents 8.6.4 Event, warning and error messages – Safety controller 8.6.5 Event, warning and error messages – All modules Performing reset Menu structure Menu structure directly on the control unit MGC Index...
-
Page 7: Notices On The Document
MGC.Connect 4910.5052 Table 1: Programme versions control unit MGC IMPORTANT! For information on design and function, for technical data, installation and mounting, electrical connection, commissioning and cleaning and maintenance, see the separate operating instructions "Turnstile MHTM™ FlowMotion® mTripod (Doc.ID: 5817,0026)". -
Page 8: Symbols And Illustrations Used In This Document
Control unit MGC mTripod Notices on the document Symbols and illustrations used in this document 1.2.1 Warning notes and notes Warning notes are characterised by pictograms in these instructions. A warning note starts with a signal word that expresses the extent of the hazard. -
Page 9: Target Group
Target group 1.3.1 Personnel – activities and qualifications All work on the control unit may only be carried out by technicians and Magnetic MHTM™ FlowMotion® service experts with the following qualifications. Designation Qualification › Technician... -
Page 10: Digital Inputs, Digital Outputs And Relay Outputs
Control unit MGC mTripod Digital inputs, digital outputs and relay outputs Digital inputs, digital outputs and relay outputs WARNING Improper wiring and parameterisation of the control unit! Improper wiring and parameterisation of the control unit can lead to undesired functions and thus to injuries. - Page 11 Control unit MGC mTripod Digital inputs, digital outputs and relay outputs Input function Descriptions – Inputs that you assign this function "–" to are being deactivated. | Emergency open Emergency situation (closed-circuit principle) Connect fire brigade switches, emergency opening contacts, etc. to this input.
- Page 12 Control unit MGC mTripod Digital inputs, digital outputs and relay outputs Input function Descriptions Random check Activate random check function, confirm hits function As soon as +24 V DC are applied to this input, the random check function is activated.
-
Page 13: Digital Outputs And Relay Outputs
Control unit MGC mTripod Digital inputs, digital outputs and relay outputs Digital outputs and relay outputs Definition of "Left" and "Right": ä Page 62, chapter 7.1. By parameterising the outputs, you assign certain functions to the outputs. For example, if you parameterise the "Buzzer/Siren (alarm)" function for output NO2, you must connect an acoustic signal transmitter to this output. - Page 14 Control unit MGC mTripod Digital inputs, digital outputs and relay outputs Output function Description – Outputs that you assign this function "–" to are deactivated. | Error When the control unit recognises any safety-relevant error or error, the output with this function is deactivated (closed-circuit principle).
- Page 15 Control unit MGC mTripod Digital inputs, digital outputs and relay outputs Output function Description Vandalism The output is activated in the following cases: › A user tries to pass through the pedestrian gate without authorisation (validation). › A user is authorised for passage, but moves the blocking element against the released direction.
-
Page 16: Digital Power Outputs Of The Mfm01 Plug-In Modules
Control unit MGC mTripod Digital inputs, digital outputs and relay outputs Digital power outputs of the MFM01 plug-in modules You can equip the control unit with up to 4 optional MFM01 plug-in modules. Power outputs 60 V / 3 A are available via the optional MFM01 plug-in modules. -
Page 17: Illumination
Control unit MGC mTripod Digital inputs, digital outputs and relay outputs Illumination You can order the mTripod turnstile with the following optional illuminations: › Floor illumination › Frame illumination 2.4.1 Floor illumination For turnstiles with optional floor illumination, the floor illumination is connected to the output of the MFM01 plug-in module slot 2, OUT 3 by default. -
Page 18: Parameterising The Mtripod
The control unit can be accessed when the cover is dismounted. Fig. 2: Position of control unit MGC Control unit MGC Cover IMPORTANT! For access to the control unit, see separate operating instructions "Turnstile mTripod MHTM™ FlowMotion® (Doc.ID: 5817,0026)", chapter "Dismounting and mounting the cover". -
Page 19: Parameterisation Via The "Mgc.connect" Programme
Control unit MGC mTripod Parameterising the mTripod Parameterisation via the "MGC.Connect" programme The programme "MGC.Connect" is available on the Magnetic website in the download center. You can also download the programme with the programme for the Service Module SM01 "SM-Downloader". - Page 20 Control unit MGC mTripod Parameterising the mTripod If the connection could not established, the connection settings may have been changed. Open the "Configuration" window. To do so, click the " " button in the header of the MGC.Connect programme. ä Page 22, chapter Fig. 5, pos.
-
Page 21: Connection Via Ethernet Module Em01
Control unit MGC mTripod Parameterising the mTripod 3.2.2 Connection via Ethernet module EM01 Further information on the Ethernet module: Technical Manual "Ethernet Module" (Doc.ID: 5815,0001). For pedestrian gates with the option "Ethernet module EM01", the Ethernet module is installed ex works. -
Page 22: Updating Control Unit Mgc
Control unit MGC mTripod Description of the "MGC.Connect" programme 3.2.3 Updating control unit MGC IMPORTANT! If necessary, download and update via the "SM-Downloader" programme. Description of the "MGC.Connect" programme Overview Fig. 5: Exemplary view "MGC.Connect" Button to open the "Configuration" window... -
Page 23: Changing The Menu Language For Mgc.connect
Control unit MGC mTripod Description of the "MGC.Connect" programme Button Description No connection There is no connectionbetween the pedestrian gate and the "MGC. Connect" programme. If the connection via the Service Module SM01 or via the Ethernet modul exists and you click on the "Connect"... -
Page 24: Status Display Mtripod
In the "Closed" position the value is 0°. When turning to the left, the value is negative. When turning to the right, the value is positive. Fig. 6: Status display mTripod, example status "OK" Display of symbols: ä Page 26, Table 10 Display of the current status of the output functions "GED red right"... - Page 25 Control unit MGC mTripod Description of the "MGC.Connect" programme Fig. 7: Examples of event displays Example of an event of the type WARNING Confirm pending messages and update display Example of an event of the type ERROR Information on WARNING and ERROR: ä Page 73, chapter 8.6.
-
Page 26: Passage Control" Tab
Control unit MGC mTripod Description of the "MGC.Connect" programme Symbol Description The "random check function" generated a hit. Table 10: Status display – Description symbols "Passage control" tab Use the "Passage control" tab to test the behaviour of the pedestrian gate. - Page 27 Control unit MGC mTripod Description of the "MGC.Connect" programme The view offers the following options. Information about the input functions: ä Page 10, chapter 2.1. Button / Description parameters The permanent signal is deactivated. The 3 central buttons simulate pulse operation and you can test the respective input function by clicking on the button.
-
Page 28: Settings" Tab
Control unit MGC mTripod Description of the "MGC.Connect" programme "Settings" tab The "Settings" tab encloses the sections: General, Signalling and Random check function. Use the "Settings" tab to check and adjust the settings. Fig. 9: "Settings" tab, "General" section Button Description Read current settings from the control unit MGC into the "MGC. - Page 29 Control unit MGC mTripod Description of the "MGC.Connect" programme "General" section Parameter Description Hold-open time "Hold-open time" parameter: ä Page 46 Permanent open "Permanent open" parameter: ä Page 46 Security mode "Security mode" parameter: ä Page 47 Vend count "Vend count"...
-
Page 30: Service" Tab
Control unit MGC mTripod Description of the "MGC.Connect" programme "Service" tab Use the "Service" tab to align the blocking element for the "Closed (0°)" position. Fig. 10: "Service" tab – "Align positions" section 4.6.1 Align blocking element for the "Closed" position... -
Page 31: Description Of The Buttons And Parameters
After 5 seconds, the new position is accepted as the "Closed (0°)" position. The position corresponds to 0°. √ The mTripod pedestrian gate automatically switches to normal operation. If a buzzer is installed, a short tone will sound. √ The "Closed" position is aligned. -
Page 32: Parameterisation Directly At The Control Unit Mgc
Control unit MGC mTripod Parameterisation directly at the control unit MGC Parameterisation directly at the control unit MGC Changing menu language The default setting in the MGC control unit is the menu language "English". Change the menu language as follows: The operational view is displayed. - Page 33 Control unit MGC mTripod Parameterisation directly at the control unit MGC The "Main menu" menu is displayed. The "Settings" menu has a dark background and is thus selected. Main menu Settings In-/Outputs Service System Fig. 13: "Main menu – Settings" view Select the "System"...
- Page 34 Control unit MGC mTripod Parameterisation directly at the control unit MGC Confirm selection with the right button « ». The following view is displayed. The menu language "English" is chosen. Language English French Spanish Fig. 16: "Language – English" view Select the language "German"...
- Page 35 Control unit MGC mTripod Parameterisation directly at the control unit MGC Use the left button « » to leave the "Language" menu. The safety prompt "Save changes?" appears. Language Save changes? Fig. 19: "Safety prompt – Save changes?" view 10. Push the left button «...
-
Page 36: Entering Password
Control unit MGC mTripod Parameterisation directly at the control unit MGC Entering password You need to enter a password in the following cases: › You would like to change parameters in the control unit and the password protection was activated. -
Page 37: Control Unit Elements
Control unit MGC mTripod Parameterisation directly at the control unit MGC Use the right button « » to select the fourth digit of the password. The following view is displayed: Password Fig. 23: "Enter fourth digit of the password" view Use the two middle buttons «... -
Page 38: Displays Of The Control Unit
– – – – Fig. 25: Example "Operational view" Type pedestrian gate, here mTripod electromotive Status display, here ready for operation Angle of rotation, here 0 Current function of the right control button, here accessing menu "Main menu" Validations (validation pulses) for passage from right, here blocked... -
Page 39: Symbols In The Display
Control unit MGC mTripod Parameterisation directly at the control unit MGC Symbols in the display 5.5.1 Control button functions The control unit is equipped with 4 control buttons. The function of the control buttons change depending on the current view in the display. The current functions are shown in the display. -
Page 40: Further Symbols
Control unit MGC mTripod Parameterisation directly at the control unit MGC 5.5.2 Further symbols Function Description Wrong password entered. Access denied. Reset values to factory settings. To do this, you must enter the password "0000". There is an information. Check the "Information" menu. To do this, press the left operating button. -
Page 41: Setting Display Contrast
Control unit MGC mTripod Parameterisation directly at the control unit MGC Setting display contrast The display contrast of the control unit is adjustable after activation while the logo is still displayed. The logo is displayed for 3 seconds. If you push one of the middle buttons «... - Page 42 Control unit MGC mTripod Parameterisation directly at the control unit MGC 11. If the changes are to be saved, press the right button « ». The new hold- open time is activated. If the changes are not to be saved, press the left button «...
-
Page 43: Switching The "Service" Mode On And Off
Control unit MGC mTripod Parameterisation directly at the control unit MGC Switching the "Service" mode on and off Switching the "Service" mode on Switch the "Service" switch for the "Service" mode. The LED lights red. The display backlighting flashes. The button assignment in the operating display changes. - Page 44 Control unit MGC mTripod Parameterisation directly at the control unit MGC Functions in "Service" mode Signals via the inputs of the control unit or via the interface are ignored. In "Service" mode, you can control the motor with the two middle control buttons.
-
Page 45: Description Of Menus And Parameters
Control unit MGC mTripod Description of menus and parameters Description of menus and parameters "Information" menu Accessing and navigating The operational view is displayed. ä Page 38, Fig. 25. Press left button « ». Use the left button « » to scroll within the menu. -
Page 46: Settings" Menu
Control unit MGC mTripod Description of menus and parameters "Settings" menu 6.2.1 Hold-open time Operational view > Main menu > Settings > Hold-open time Parameter Description Hold-open time Set the hold-open time. The hold-open time is started by a validation by a control device, such as a card reader. -
Page 47: Interlock
Control unit MGC mTripod Description of menus and parameters 6.2.3 Interlock Operational view > Main menu > Settings > Interlock Parameter Description Interlock Activate and deactivate the "Interlock" function. If the interlock has been activated, further rotation of the blocking element is blocked for 1 second after each passage. -
Page 48: Vend Count
Control unit MGC mTripod Description of menus and parameters Operational view > Main menu > Settings > Safety/Security Parameter Description Holding force Set the maximum holding force for locking in the home position (Home position). For certain applications, such as ski lift accesses, it may make sense to reduce the holding force. -
Page 49: Signalling
Control unit MGC mTripod Description of menus and parameters 6.2.6 Signalling Operational view > Main menu > Settings > Signalling Parameter Description Buzzer/Siren Activate events for which an acoustic signal is to be triggered. Connect the acoustic signal to the "Buzzer/Siren (alarm)" output. - Page 50 Control unit MGC mTripod Description of menus and parameters Operational view > Main menu > Settings > Signalling Parameter Description GED mode left Set the behaviour of the illumination connected to the outputs with the function "GED red left" and "GED green left". The illumination off can be a GED, for example.
-
Page 51: Random Check Function
Control unit MGC mTripod Description of menus and parameters 6.2.7 Random check function IMPORTANT! For certain applications, it makes sense to invert the input assigned with the "Random check function" via the "Invert Inputs/Outputs" menu. The MGC control unit is equipped with the "Random check function" option. - Page 52 Control unit MGC mTripod Description of menus and parameters Operational view > Main menu > Settings > Random check function Parameter Description Mode Set the function of the random check function. Options › Deactivated: The random check function is not in operation.
- Page 53 Control unit MGC mTripod Description of menus and parameters Operational view > Main menu > Settings > Random check function Parameter Description Count of hits Set the number of hits to be generated in the set Count of hits. IMPORTANT! The value for the "Count of hits" parameter can be a maximum of 40 % of the value for the "Hit range"...
-
Page 54: Inputs/Outputs" Menu
ä Page 13, chapter 2.2. 6.3.3 Inverted In-/Outputs This menu is only intended for MAGNETIC's service and only accessible with a password. This menu allows you to invert individual inputs and outputs and with it the assigned functions. Customer-side additional relays for signal inversion are therefore not required. -
Page 55: Service" Menu
"Information ()", the input IN7 with inverted function is marked with a "|"; in this example, it is "IN7: | Illumination off". "Service" menu This menu is only intended for Magnetic's service and only accessible with a password. 6.4.1 Gate HW Operational view >... -
Page 56: Further Parameters
Control unit MGC mTripod Description of menus and parameters Operational view > Main menu > Service > Gate HW Parameter Description Align home position If the correction of the centre position of the blocking arm via the "Homing offset" parameter is uncomfortable, you can manually align the centre position of the blocking arm via the "Align home position"... -
Page 57: System" Menu
Control unit MGC mTripod Description of menus and parameters Operational view > Main menu > Service Parameter Description Main menu Activate and deactivate password protection for the main menu. password To activate a change of the settings, either access the operational view or switch the power supply on or off. -
Page 58: Information" Menu
Feedback signal of the mains unit (for future expansions), from hardware version E onwards Table 31: Information "Motor MHP2" menu This menu is displayed for mTripod pedestrian gates with an MHP2 motor. Operating view > Main menu > Motor MHP2 Parameter Description Motor temperature Display of the current motor temperature. -
Page 59: Motor Gw" Menu (Gateway)
Control unit MGC mTripod Description of menus and parameters "Motor GW" menu (Gateway) This menu is displayed for mTripod pedestrian gates with an MHP1 motor. Operational view > Main menu > Motor GW Parameter Description Motor temperature Display of the current motor temperature. -
Page 60: Factory Settings" Menu
Control unit MGC mTripod Description of menus and parameters 6.10 "Factory settings" menu IMPORTANT! The parameters of the control unit are stored in the three memory areas "Default settings", "Factory settings" and "User settings". The default settings are identical to the factory settings in these operating instructions. - Page 61 Control unit MGC mTripod Description of menus and parameters › If the changes are to be saved, press the right button « ». The current settings are reset to factory settings. A restart is performed. › If the changes are not to be saved, press the left button «...
-
Page 62: Function Description
Control unit MGC mTripod Function description Function description Definition of "left" and "right" Fig. 28: Definition of "left" and "right" Left (function "Open from left" for a passage from left) Right (function "Open from right" for a passage from right) -
Page 63: Function Sequence
Control unit MGC mTripod Function description Function sequence Start The control unit receives a validation. Depending on the configuration of the inputs, only one direction can be released. The free and Passage is possible. the blocked directions can be signalled via optional displays. -
Page 64: Start-Up And Regular Movement Sequence
Control unit MGC mTripod Function description Start-up and regular movement sequence 7.3.1 Power-off state The motor is not energised in the power-off state. The lock is released and the capstan with the three blocking arms can be spinned freely. For turnstiles with "Drop arm"... -
Page 65: Regular Movement Sequence 120° With "Signal Move" Signalling
Control unit MGC mTripod Function description 7.3.5 Regular movement sequence 120° with "Signal move" signalling "Signal move" parameter: ä Page 49 After receiving a validation in one direction, the turnstile is cleared in the passage direction. The motor briefly moves by 12° in the passage direction to signal the release. -
Page 66: Pulse Operation In One Direction / Permanent Open In The Other Direction
Control unit MGC mTripod Function description 7.4.2 Pulse operation in one direction / permanent open in the other direction Prerequisite: For the parameter "Permanent open" either the option "After 3 s" or "After 10 s" has been selected. "Permanent open" parameter: ä Page When a permanent signal is present on one of the two inputs "Open from left"... -
Page 67: Special Cases Within The Motion Sequence
Control unit MGC mTripod Function description Special cases within the motion sequence 7.5.1 Stopping in mid-movement If the blocking element is stopped in mid-movement, e.g. from the user not moving on, the motor will continue to turn with a low force. -
Page 68: Vandalism Attempt: Turning Back During The Movement
Control unit MGC mTripod Function description 7.5.3 Vandalism attempt: Turning back during the movement With this type of vandalism attempt, the user has first moved the blocking element correctly in the released direction, but then moves it back in the other direction with more than the motor force. -
Page 69: Corrective Action
Control unit MGC mTripod Corrective action Corrective action Safety in troubleshooting Qualification of personnel › Technician › Magnetic MHTM™ FlowMotion® service expert ä Page 9, chapter 1.3.1. Personal protective equipment Wear the following personal protective equipment: › Work clothes ›... -
Page 70: Malfunctions Pedestrian Gate
Control unit MGC mTripod Corrective action Malfunctions pedestrian gate Malfunction: Display is difficult or impossible to read. Possible cause Corrective action Removal by Display contact set too light or Technician Correct display contact. ä Page dark. 41, chapter 5.6. Malfunction: Pedestrian gate does not open. -
Page 71: Displaying And Signalling Messages
Control unit MGC mTripod Corrective action IMPORTANT! With some messages, the control unit tries to reset the cause of the message. If the attempt was successful, the message is displayed as WARNING. If the attempt failed, the message is displayed as ERROR. -
Page 72: Procedure In Case Of A Fault / Message
Control unit MGC mTripod Corrective action Procedure in case of a fault / message IMPORTANT! Faults of the types WARNING or ERROR may only be corrected by a MHTM™ FlowMotion® service expert. For the required qualification of the MHTM™ FlowMotion®... -
Page 73: Event, Warning And Error Messages (Troubleshooting)
Control unit MGC mTripod Corrective action Event, warning and error messages (troubleshooting) 8.6.1 Event, warning and error messages – Logic control (control unit) Number Designation Possible cause Corrective action 3120 Mains power failure Short-term power Check supply voltage and failure detected. - Page 74 Control unit MGC mTripod Corrective action Number Designation Possible cause Corrective action 6110 Safety Controller: SW MHP2 motor detected. Perform the software update update required A software package with as follows: ERROR › the firmware Motor GW Execute package PREPARE_ is installed in the control MHP2.
-
Page 75: Event, Warning And Error Messages - Motor Mhp2
Deactivate input function. Table 34: Event, warning and error messages – Logic control (control unit) 8.6.2 Event, warning and error messages – Motor MHP2 Follow the troubleshooting below for mTripod pedestrian gates with an MHP2 motor. Number Designation Possible cause Corrective action ›... - Page 76 Control unit MGC mTripod Corrective action Number Designation Possible cause Corrective action › 4220 Derating The power consumption Remove inadmissible of the motor is reduced attachments. WARNING › to prevent the Reduce load. › temperature from Reduce speed. increasing any further.
-
Page 77: Event, Warning And Error Messages - Motor Gw
Perform software update. Table 35: Event, warning and error messages – Motor MHP2 8.6.3 Event, Warning and Error Messages – Motor GW Follow the troubleshooting below for mTripod pedestrian gates with an MHP1 motor. Number Designation Possible cause Corrective action ›... - Page 78 Control unit MGC mTripod Corrective action Number Designation Possible cause Corrective action › 4220 Derating The power consumption Remove inadmissible of the motor is reduced attachments. WARNING › to prevent the If required, contact temperature from Service. increasing any further.
-
Page 79: Event, Warning And Error Messages - Safety Controller
Control unit MGC mTripod Corrective action 8.6.4 Event, warning and error messages – Safety controller Number Designation Possible cause Corrective action › 6150 Selftest failed EMC interference, Perform reset. motor control or ä Page 81, chapter 8.7. ERROR › microcontroller Perform software update. -
Page 80: Event, Warning And Error Messages - All Modules
Control unit MGC mTripod Corrective action 8.6.5 Event, warning and error messages – All modules Number Designation Possible cause Corrective action › 5510 Controller selftest failed EMC interference, MGC Perform reset. control unit or ä Page 81, chapter 8.7. ERROR ›... -
Page 81: Performing Reset
Control unit MGC mTripod Corrective action Performing reset If you use one of the following options, the control unit will perform a reset: › Switch of power supply and switch it on again after 10 s. › Press the two middle operating buttons on the control unit display for 5 s. -
Page 82: Menu Structure
Control unit MGC mTripod Menu structure Menu structure Menu structure directly on the control unit MGC FlowMotion mTripod-M – – – – Error, Warning, Main menu Event messages Inputs Settings Outputs In-/Outputs Modul info Service System Passage counter Information Motor MHP2 Factory reset Fig. - Page 83 Control unit MGC mTripod Menu structure Main menu Settings Hold-open time Permanent open In-/Outputs Interlock Service Safety/Security Safety mode Holding force System Vend count Counter left Passage counter Counter right Max pulse count Information Max pulse w/o passage Motor MHP2...
- Page 84 Control unit MGC mTripod Menu structure Main menu Settings In-/Outputs Inputs Digital inputs 1 – 8 Outputs Digital outputs 1 – 4 Relay outputs 1 – 6 Invert In-/Outputs Service Gate HW Homing offset Align home position Drop arm Cycles...
- Page 85 Control unit MGC mTripod Menu structure Main menu Setup In-/Outputs Service Système Language Date/Time Passage counter From left From right Information Serial no Hardware version Software # SW version Temperature Logic voltage Motor MHP2 Motor temperature Information Factory settings Fig. 32: "System", "Passage counter", "Information", "Motor MHP2"...
- Page 86 Control unit MGC mTripod...
-
Page 87: Index
Control unit MGC mTripod Index Index Emergency ..........68 Emergency open ........11 Symbole End switch drop arm ....... 12 | Emergency open ........11 Entering password ........36 | End switch drop arm ......12 Error ............14 | Error ............14 Error messages ........ - Page 88 Control unit MGC mTripod Index Inverted In-/Outputs ....... 54 Open from right ........11 Invert In-/Outputs ........54 Operating modes ........65 Operation ..........56 Operational view ........38 Language ..........57 Outputs ..........10, 45 Left Factory setting ........13 Definition ..........
- Page 89 Control unit MGC mTripod Index Safety/Security ........47 Security mode ......... 47 Serial no ........... 58 Service Menu ........... 55 MGC.Connect........30 Mode ........... 43 Service mode active ........ 15 Service module SM01 ......19 Settings ............ 46 MGC.Connect........28 Signalling ..........
- Page 90 Control unit MGC mTripod...
- Page 91 Control unit MGC mTripod...
- Page 92 MAGNETIC AUTOCONTROL GMBH Sales partner Grienmatt 20 D-79650 Schopfheim Germany Phone +49 7622 695 5 Fax +49 7622 695 802 info@magnetic-germany.com www.magnetic-access.com F10044701...
