ANTAIRA INJ-C200G-60-24-T-AIX Quick Installation Manual

Antaira Technologies

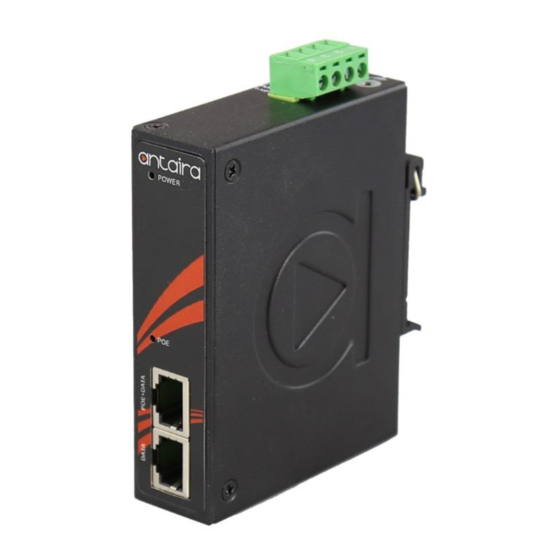

INJ-C200G-60-24-T-AIX
Industrial IEEE 802.3bt Gigabit Type 3 4PPoE Injector; EOT:
-40°C ~ 75°C - This injector is designed for use with Axis
Q6055-e MKii PTZ camera requiring High Power (up to 60 watts)
Quick Installation Guide
Version 1.0
(Feb 2023)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick Installation Guide
1 – INJ-C200G-60-24-T-AIX
⚫
⚫ 1 – Wall Mounting Bracket Set with Screws
⚫ 1 – Terminal Block

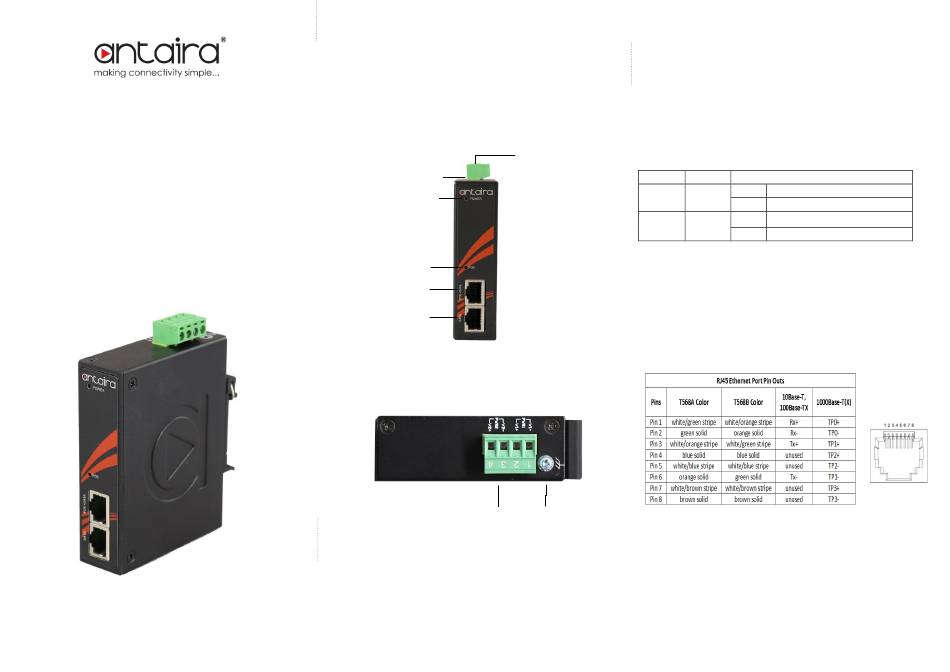

Front Panel Layout
Grounding Screw
(Behind)
LED for Power
LED for PoE
Ethernet Port for PoE and Data
Ethernet Port for Data
Top Panel View
INJ-C200G-60-24-T-AIX top panel is equipped with one 4-pin
removal terminal block connector for dual DC power inputs
(9~48VDC).
Terminal Block
Product Overview
System Interface/Performance

10/100/1000BaseT Power over Ethernet Injector

Provides Power Feeding up to 60 Watts

Overload Current Protection
Power Input & Connection

DC 9~48V a 4-Pin Removal Terminal Block
Operating Temperature

Extended Operating Temperature (-T): -40°C to 75°C
Case/Installation

IP30 Protection

Installation in a Pollution Degree 2 Industrial Environment

DIN-Rail and Wall Mount Design
4-Pin Removal Terminal Block
(Power Input) LED Indicators
LED
Power
PoE
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDIX)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, and
1000Base-T(X) device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Grounding Screw
Color Description
On
Power input is active
Green
Off
Power input is inactive
On
The port is supplying power to the powered-device
Green
Off
No powered-device attached or power supplying fails
