ANTAIRA STE-501C Quick Installation Manual

Antaira Technologies
STE-501C

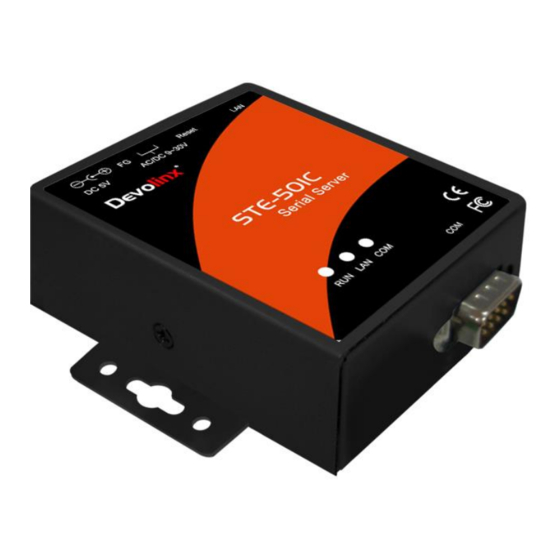

1-Port RS-232/422/485 to Ethernet Device Server (STE-501C)
Quick Installation Guide
Version 2.0
(September 2018)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – STE-501C Serial Server
⚫ 1 – Product CD
⚫ 1 – Wall Mount Screws
⚫ 1 – 3-pin terminal block for power input
Hardware Setup
LED Indicators
LAN LED
Message Description
Off
Ethernet disconnected
Blinking with Green Data is transmitting on Ethernet for 100Mbps
Blinking with Orange Data is transmitting on Ethernet for 10Mbps
COM Port LED
Message Description
Off
No data is transmitting on COM port
Blinking Data is transmitting on COM port
RUN LED
Message Description
Jumper JP1 Pin1 and Pin2 are shorted to disable
On
AP firmware running
Blinking (rate: AP firmware is running normally
0.5 Sec)
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI)
All RJ45 ports are auto-sensing for 10Base-T or 100Base-TX
device connections. Please follow the wiring pin assignment
table below for Ethernet port installation.
Serial Pin Assignments
RS-232 RS-485 2-wire
Pin#
Full Duplex Half Duplex
1 DCD N/A
2 RXD N/A
3 TXD DATA+
4 DTR N/A
5 SG SG
(Signal Ground) (Signal Ground)
6 DSR N/A
7 RTS DATA-
8 CTS N/A
9 N/A N/A
RS-422/RS-485
4-wire
Full Duplex
N/A
TXD+
RXD+
N/A
SG
(Signal Ground)
N/A
RXD-
TXD-
N/A
