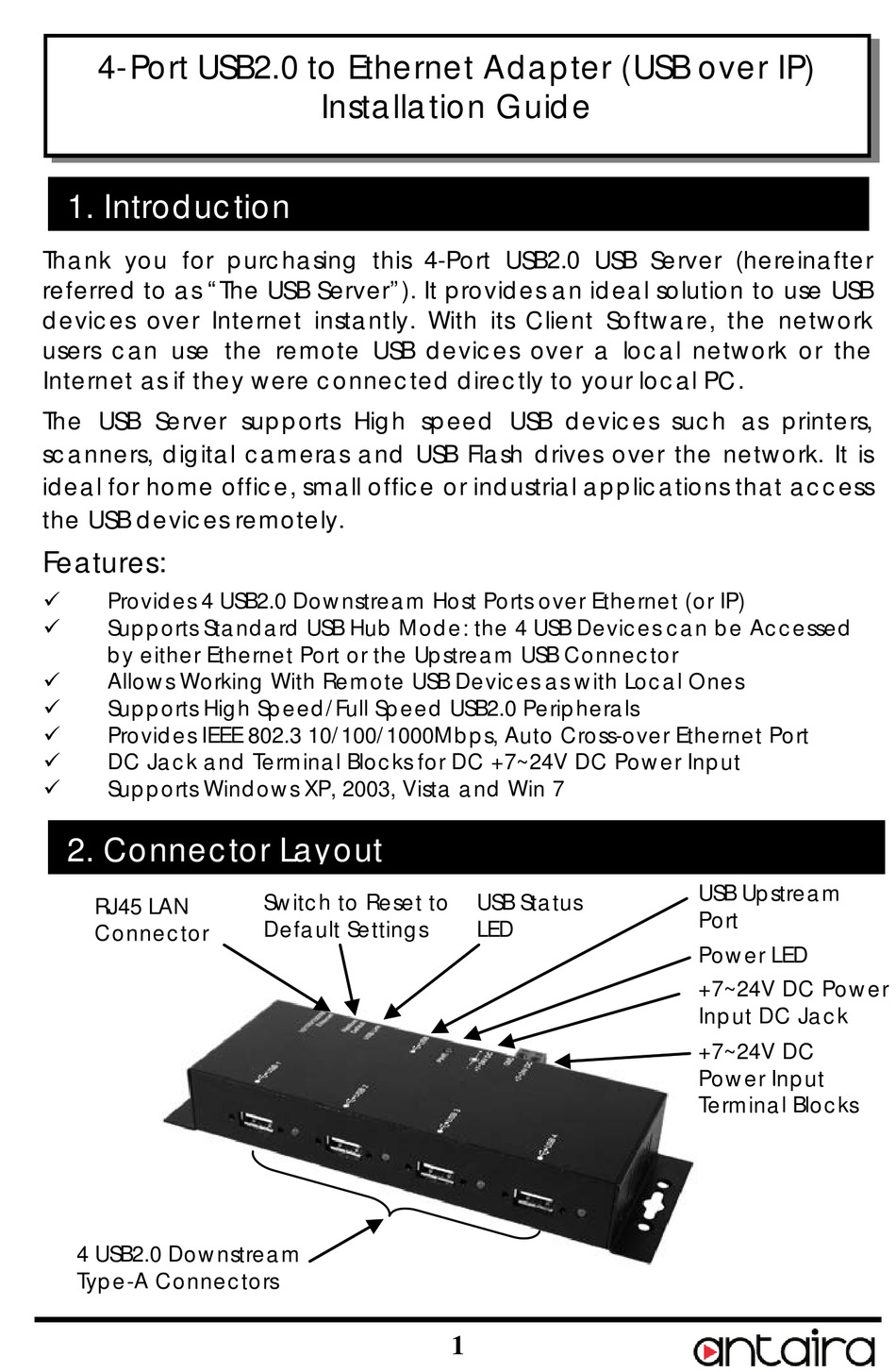

4-Port USB2.0 to Ethernet Adapter (USB over IP)
1. Introduction
Thank you for purchasing this 4-Port USB2.0 USB Server (hereinafter
referred to as "The USB Server"). It provides an ideal solution to use USB
devices over Internet instantly. With its Client Software, the network
users can use the remote USB devices over a local network or the
Internet as if they were connected directly to your local PC.
The USB Server supports High speed USB devices such as printers,
scanners, digital cameras and USB Flash drives over the network. It is
ideal for home office, small office or industrial applications that access
the USB devices remotely.
Features:
Provides 4 USB2.0 Downstream Host Ports over Ethernet (or IP)
Supports Standard USB Hub Mode: the 4 USB Devices can be Accessed
by either Ethernet Port or the Upstream USB Connector
Allows Working With Remote USB Devices as with Local Ones
Supports High Speed/Full Speed USB2.0 Peripherals
Provides IEEE 802.3 10/100/1000Mbps, Auto Cross-over Ethernet Port
DC Jack and Terminal Blocks for DC +7~24V DC Power Input
Supports Windows XP, 2003, Vista and Win 7
2. Connector Layout
RJ45 LAN
Connector
4 USB2.0 Downstream
Type-A Connectors
Installation Guide
Switch to Reset to
Default Settings
USB Status
LED
1
USB Upstream
Port
Power LED
+7~24V DC Power
Input DC Jack
+7~24V DC
Power Input
Terminal Blocks
Advertisement
Table of Contents
Related Manuals for ANTAIRA ute-404k
Summary of Contents for ANTAIRA ute-404k
-
Page 1: Installation Guide
4-Port USB2.0 to Ethernet Adapter (USB over IP) Installation Guide 1. Introduction Thank you for purchasing this 4-Port USB2.0 USB Server (hereinafter referred to as “The USB Server”). It provides an ideal solution to use USB devices over Internet instantly. With its Client Software, the network users can use the remote USB devices over a local network or the Internet as if they were connected directly to your local PC. - Page 2 4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case DC Jack and Terminal Blocks Power Connectors: A 7V~24V DC Power is required for this product. Power is supplied from either the DC Jack or the Terminal Blocks, but not both at the same time. RJ45 Ethernet Connector: 10/100/1000Mbps Ethernet port.
- Page 3 4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case Connecting LAN cable: Use a standard straight-through Ethernet cable to connect to a Hub or Switch. If you connect the USB Server to your computer’s Ethernet port instead, you don’t need to change to a cross-over type cable since the Adapter provides auto cross-over feature.
- Page 4 4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case To access the USB devices on the USB Server, each Client PC should install this GUI utility. We call it USB Server Program. This GUI Utility provides Device Mapping functionality for a user to connect and disconnect various devices found on the network.
