Installation Guide

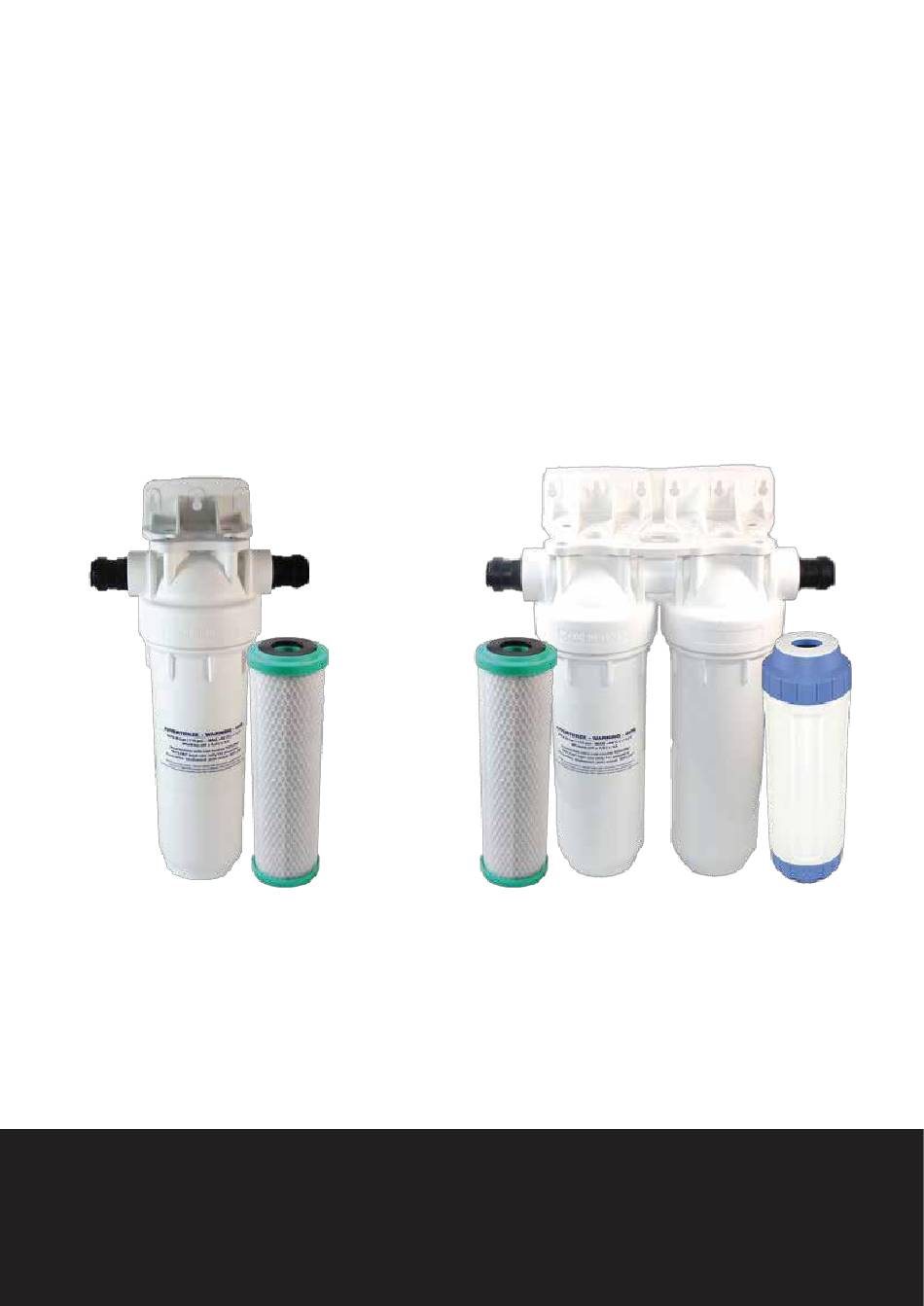

This installation guide covers the complete Osmio EZFITPRO range
Installed to an existing cold tap:
Osmio EZFITPRO-100
Osmio EZFITPRO-200
Osmio EZFITPRO-300
Email : sales@reverseosmosisworld.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZFITPRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Osmio EZFITPRO Series

  • Page 1 Installation Guide This installation guide covers the complete Osmio EZFITPRO range Installed to an existing cold tap: Osmio EZFITPRO-100 Osmio EZFITPRO-200 Osmio EZFITPRO-300 Email : sales@reverseosmosisworld.co.uk...
  • Page 2: R E A D T H I S B E F O R E I N S T A L L A T I O N

    Philips head screwdriver & Flat edge screwdriver Pressure gauge Electric drill Spirit level Marker pen FIG1: OSMIO EZFITPRO-300 Appropriate screws to mount the filter to the verti- INSTALLED WITH HOSES. IT IS AN EASY WAY TO DO IT IN SOME CASES cal surface (e.g. wood screws)
  • Page 3: Step1: Mounting The Bracket

    I N S T A L L A T I O N S T E P S STEP1: MOUNTING THE BRACKET After planning your installation, you can first determine where you are going to mount the filter system and using the screws supplied (4 for the EZFITPRO-100 and 8 for the EZFITPRO-200/300).
  • Page 4 Filter 1: Osmio 2.5" x 10" Carbon Block 5 Micron Filter. Change every ð months or 11,000 litres whichever comes first. Remove the packaging of the Osmio 2.5" x 10" Carbon Block 5 Micron Filter. The filter is bi-directional so it does not matter which way around you put it in.
  • Page 5 FIG6: THE RUBBER WASHER GOES ON litres or 6 months whichever comes first. THE TOP OF THE FILER Filter 2; Osmio 2.5 x 10 Chlorine & Limescale Filter: As per previous section. FIG7: THE BOTTOM AND CLOSED END OF THE...
  • Page 6 S T E P 4 : S C R E W I N G T H E B O W L S TO T H E H E A D Holding the bowl upright, hand screw the bowl anticlockwise with the filter inside it to the filter unit head to screw it on.
  • Page 7: Step6: Mounting The System

    STEP6: MOUNTING THE SYSTEM The filter system can now be mounted onto the side where you want to fit it. Use your own screws appro- priate to the surface you are mounting them to, i.e. wood screws for kitchen cupboards, drywall screws for drywall etc.
  • Page 8 F I L T E R C H A N G E S Please refer to Step 3 for average filter durations. Due to massive variation in water conditions, this is meant to be taken only as a guide. Filters can and do block because of variations in the incoming water quality and situations surrounding supply zones or private water supplies.
  • Page 9 T R O U B L E S H O O T I N G Problem: Leak coming from between the housing bowl and filter head. Solution: Take the bowl o" and ensure the o ring is correctly seated. Remove the o ring and check it for any bumps or stretches.
