Summary of Contents for Luxinar OEM 65iX

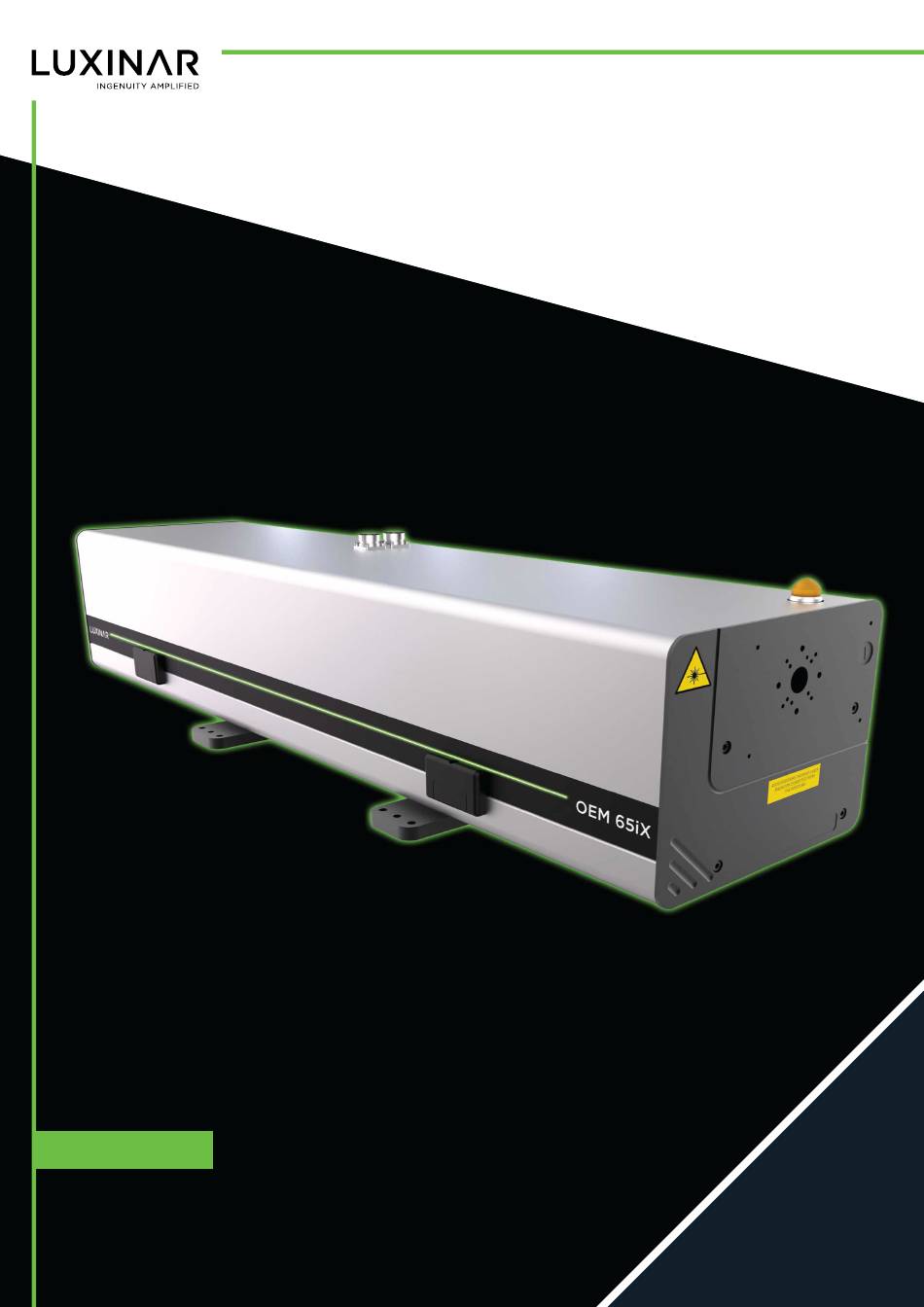

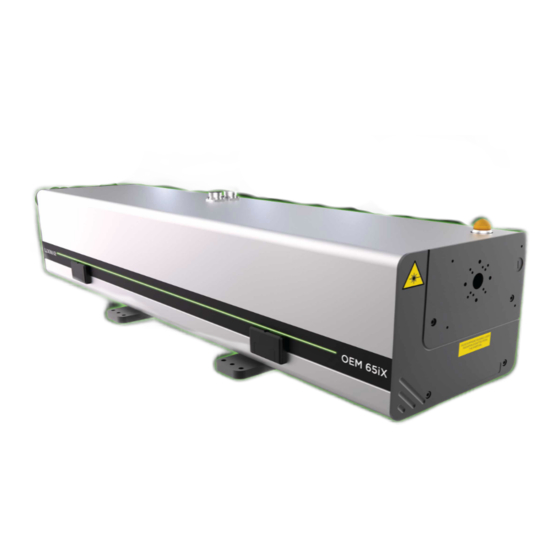

  • Page 1 OEM 65iX USER MANUAL Sealed CO laser source...
  • Page 2 This manual is copyrighted with all rights reserved. Under copyright laws, this manual may not be copied in whole or part or reproduced in any other media without the express permission of Luxinar Ltd. Permitted copies must carry the same proprietary and copyright notices as were affixed to the original. Under law, copying includes translation into another language.
  • Page 3 Tel.: +1 (0)586 291 2709 www.luxinar.com Warranty shipments, returns and adjustments Warranty claims must be made promptly and must be received by Luxinar Ltd during the applicable warranty period. Always identify the product, by both model number and serial number, when contacting Luxinar Aftersales.
  • Page 4 Luxinar Aftersales. Service and repair Servicing or calibration of the system can only be carried out by trained Luxinar service engineers or customers who have undertaken and passed a Luxinar approved service training course. Details of training...

  • Page 5: Table Of Contents

    2.1. Principle of operation.......................... 2.2. Laser head — standard version......................2.3. Laser head — shutter version......................2.4. DC power supply (optional).......................10 2.5. OEM 65iX three-phase DC power supply (016-0031-00)..............2.5.1. General description........................2.5.2. Specification..........................2.5.3. Installation..........................12 2.5.4. Operation........................... 2.6. OEM 65iX three-phase DC power supply (016-0033-00)..............
  • Page 6 6.2.4. Laser output aperture location....................6.2.5. Coolant connections and pipework....................56 6.2.6. Beam delivery optics purge gas....................57 6.2.7. Luxinar combined controller/DC power supply................. 6.2.8. OEM-sourced DC power supply and Luxinar controller............. 6.2.9. DC cabling........................... 6.2.10. DC connectors.......................... 6.2.11. RF cables...........................66 6.2.12. Cables for robotics applications....................
  • Page 7 F.2. Causes and corrective actions......................906-0238-00 REV 4 Table of contents...
  • Page 8 Table of contents 906-0238-00 REV 4...

  • Page 9: Other Publications

    Read this manual carefully before operating the laser for the first time. Pay special attention to the Safety chapter. The OEM 65iX is designed and sold for use in Original Equipment Manufacturer (OEM) systems and is not to be used as a stand-alone laser. The OEM is responsible for compliance with all applicable safety regulations.
  • Page 10 Preface 906-0238-00 REV 4...

  • Page 11: Safety

    Luxinar Aftersales office or distributor for advice before proceeding. The installation, operation, maintenance and repair of this laser equipment must only be carried out by Luxinar service personnel or trained staff who have received correct instruction concerning the hazards associated with this particular equipment.

  • Page 12: Label Locations

    1.2. Label locations Version with covers Figure 1 - Location of safety labels - Version with covers 1. Safety 906-0238-00 REV 4...
  • Page 13 Version without covers Figure 2 - Location of safety labels — Version without covers 906-0238-00 REV 4 1. Safety...

  • Page 14: Labels

    Shutter Figure 3 - Location of safety labels — Shutter option 1.3. Labels Figure 4 - Label A1 — Output specification without diode option Figure 5 - Label A1 — Output specification with red diode option 1. Safety 906-0238-00 REV 4...
  • Page 15 Figure 6 - Label A1 — Output specification with green diode option WARNING Disconnect the mains supply before removing this cover Figure 7 - Label A2 — Mains supply warning AVOID EXPOSURE INVISIBLE LASER RADIATION IS EMITTED FROM THE APERTURE Figure 8 - Label A3 —...

  • Page 16: Emission Warning Indicator

    Luxinar does not accept liability for any damage or injury howsoever caused or arising. 1. Safety...

  • Page 17: Maximum Permissible Exposure And Nominal Ocular Hazard Distance

    Emission warning indicator Figure 14 - Emission warning indicator location 1.5. Maximum Permissible Exposure and Nominal Ocular Hazard Distance The Maximum Permissible Exposure (MPE) is the level of radiation to which, under normal circumstances, persons may be exposed without adverse effects. The MPEs represent the maximum level to which the eye or skin can be exposed without consequential injury and are related to the wavelength of the laser radiation, the pulse duration or exposure duration, and the tissue at risk.
  • Page 18 1. Safety 906-0238-00 REV 4...

  • Page 19: General Description

    (6) and output (4) is used to cool the electrodes. 2.2. Laser head — standard version The OEM 65iX laser is a high-frequency RF excited, diffusion-cooled CO slab laser designed for industrial use as a cutting, welding or marking tool.

  • Page 20: Laser Head - Shutter Version

    2.3. Laser head — shutter version The OEM 65iX can be fitted with a safety shutter to block the laser output. The shutter is designed as a safety device and is not intended to operate as a continuous beam block or process shutter.

  • Page 21: Oem 65Ix Three-Phase Dc Power Supply (016-0031-00)

    Note: This equipment is designed for indoor use only, pollution degree 2 and overvoltage category II as defined within EN 61010-1:2010+A1:2019. The OEM 65iX three-phase power supply is a free-standing/ rack mountable, AC to DC liquid-cooled power supply (PSU). Figure 17 - OEM 65iX three-phase DC power supply 2.5.2.

  • Page 22: Installation

    Figure 18 - Overall dimensions Table 2 - Electrical specifications OEM 65iX Input voltage range 360-440VAC (50/60Hz) three-phase Mains input fuse rating (per phase) AC inrush current (max) Output voltage (DC) 50 ± 2% Output current 300A Power factor >0.90 at full power...
  • Page 23 Mains AC power connections Important! Under certain conditions, it may be possible for high voltage and current cables to emit noise energy levels that may interfere with control signal cables. To eliminate the possibility of interference, cables carrying control signals should be routed along a different path to power cables.
  • Page 24 Figure 21 - Cable connectors Figure 22 - Cable connectors DC power cables of the correct specification can be supplied by Luxinar. Cooling system connections The power supply requires a liquid cooling source. It is recommended that it is connected in series with the laser system cooling circuit.

  • Page 25: Operation

    Coolant OUT Coolant IN Figure 23 - Coolant connections The coolant inlet and outlet connectors are labelled as shown in the following table. Coolant IN Coolant OUT Note: The DC power supply has internal temperature monitors. If the internal temperature exceeds pre- defined limits, the power supply will shut down.
  • Page 26 Control electronics power switch When mains voltage is connected to the power supply (see section 2.5.3) the electronics to control the OEM 65iX can be switched on and off using this switch. This switch does not turn the mains supply on or off Power supply indicators The LED indicators on the front panel provide information about the power supply operating status.
  • Page 27 Meaning FAULT This indicator illuminates when corrective action is required. At the same time DC output is turned off. Switch off the three-phase mains supply to reset the power supply. If Faults are detected, 1 or more status indicators will be off or displaying red/amber. Disconnect and reconnect the mains supply to restart the power supply.
  • Page 28 Function RF temperature fault RF fault Shutter fault Shutter disabled Laser temperature fault Coolant flow fault MCU connection (optional) Connection for MCU, if available. 2. General description 906-0238-00 REV 4...

  • Page 29: Oem 65Ix Three-Phase Dc Power Supply (016-0033-00)

    Note: This equipment is designed for indoor use only, pollution degree 2 and overvoltage category II as defined within EN 61010-1:2010+A1:2019. The OEM 65iX three-phase power supply is a free-standing/ rack mountable, AC to DC liquid-cooled power supply (PSU). Figure 25 - OEM 65iX three-phase DC power supply 2.6.2.

  • Page 30: Installation

    Figure 26 - Overall dimensions Table 6 - Electrical specifications OEM 65iX Input voltage range 380-480VAC (50/60Hz) three-phase Mains input fuse rating (per phase) AC inrush current (max) Output voltage (DC) 50 ± 2% Output current 330A Power factor >0.90 at full power Power consumption (max) 16.5kW at full power...
  • Page 31 Mains AC power connections Important! Under certain conditions, it may be possible for high voltage and current cables to emit noise energy levels that may interfere with control signal cables. To eliminate the possibility of interference, cables carrying control signals should be routed along a different path to power cables.
  • Page 32 Figure 29 - Cable connectors Figure 30 - Cable connectors DC power cables of the correct specification can be supplied by Luxinar. Cooling system connections The power supply requires a liquid cooling source. It is recommended that it is connected in series with the laser system cooling circuit.

  • Page 33: Operation

    Coolant IN Coolant OUT Figure 31 - Coolant connections The coolant inlet and outlet connectors are labelled as shown in the following table. Coolant IN Coolant OUT Note: The DC power supply has internal temperature monitors. If the internal temperature exceeds pre- defined limits, the power supply will shut down.
  • Page 34 Control electronics power switch When mains voltage is connected to the power supply (see section 2.6.3) the electronics to control the OEM 65iX can be switched on and off using this switch. This switch does not turn the mains supply on or off Power supply indicators The LED indicators on the front panel provide information about the power supply operating status.
  • Page 35 Table 8 - System indicators Function DC power supply status RF enabled Modulation mode Modulation present Diode pointer enabled Shutter closed monitor RF VSWR status PWM input out of range (Over modulation) Interlock fault RF disabled RF temperature fault RF fault Shutter fault Shutter disabled Laser temperature fault...

  • Page 36: Oem-Sourced Dc Power Supply And Luxinar Controller

    Note: This equipment is designed for indoor use only, pollution degree 2 and overvoltage category II as defined within EN 61010-1:2010+A1:2019. The OEM 65iX controller is free-standing/rack mountable and must be used to interface the laser system to the DC power supply.

  • Page 37: Installation

    Table 10 - Electrical specifications OEM 65iX Input voltage range 380-480VAC (50/60Hz) three-phase Mains input fuse rating (per phase) 0.5A Mains inrush current (max) Output voltage (DC) 50 ± 2% Output current Power factor >0.90 at full power Power consumption (max.)
  • Page 38 Important! An earth connection is essential. Ensure that the earth wire is connected before connecting the mains supply. CAUTION Risk of irreparable damage to the power supply Do not connect the power supply to neutral. Mains AC power connections Important! Under certain conditions, it may be possible for high voltage and current cables to emit noise energy levels that may interfere with control signal cables.

  • Page 39: Absorbing Thin Film Reflector (Atfr)/Circular Polariser

    An earth connection is essential. Ensure that the earth wire is connected before connecting the mains supply. 50V DC power connection The controller requires 50VDC from the power supply to monitor and use for driving the OEM 65iX laser head electronics. This must be provided on the two-way plug provided on the controller.

  • Page 40: Back Reflection Considerations

    Static minimum bend radius 152mm Dynamic minimum bend radius 400mm RF connector torque setting 25Nm Cable length Contact Luxinar Aftersales for details of available cable lengths and other properties. 6. 500Hz–5kHz unavailable for 10.25µm variant 2. General description 906-0238-00 REV 4...

  • Page 41: Oem Sourced Dc Power Supply Requirements

    Refer to Chapter 8 for interfacing details. 2.9.7. Cooling system The OEM 65iX requires a temperature stabilised recirculating coolant circuit in order to operate correctly. The preferred coolant is deionised water or deionised water with anti-bacterial additive. See Appendix Important! To prevent condensation on optical surfaces, the coolant temperature must be maintained above the dew point.

  • Page 42: Optics Purge Gas

    Table 15 - Minimum laser resonator coolant temperatures Ambient temperature (°C) Relative humidity Table 16 - Coolant specification Minimum flow rate (L/min) Maximum flow rate (L/min) Maximum pressure 4.0–6.0bar (58–88psi) Dissipation 16kW Required refrigeration capacity 16kW Coolant temperature 19–25°C (Optimum temperature 21°C. Allow 1% output power drop per 1°C increase.) Note: Coolant temperature must be above the dew point.

  • Page 43: Environmental Specifications

    Storage temperature (with drained cooling circuit) 5–70°C Relative humidity (non-condensing) 10–85% Maximum altitude < 2000m 2.9.10. Performance Table 19 - OEM 65iX output characteristics Output wavelength 10.6µm (10.45–10.7µm) 10.25µm (10.17–10.33µm) Rated average power range at 400µs 35–650W 30-540W maximum duty (1.5kHz)
  • Page 44 Table 20 - Laser diode pointer specification (Red) Wavelength 635 ± 10nm @ 25°C Maximum output power Power stability 5% @ 25°C Divergence <2.5 mrad Beam diameter (at the output aperture) 0.25mm @ the output aperture Pointing stability <0.2mrad per °C Table 21 - Laser diode pointer specification (Green) Wavelength 520 ±...

  • Page 45: Operation

    3. Operation 3.1. Overview of control options Two options may be used to control the OEM 65iX laser: 3.1.1. Hand-held MCU (Mobile Control Unit) The MCU (Mobile Control Unit) may be used to set up and program the system controller. This option is normally used for initial system setup and for troubleshooting or servicing.

  • Page 46: Host Machine Commands Using The U1 Connector

    3.1.2. Host machine commands using the U1 connector The system controller may be directly set up and programmed by the host machine using the U1 connector. This option is used for normal operation of the laser in a production environment. For interfacing details see Chapter Figure 42 - Combined controller/DC power supply —...

  • Page 47: Start-Up

    Luxinar does not accept liability for any damage or injury howsoever caused or arising.
  • Page 48 • Remove the RF enable signal. • Break the laser interlock circuit. Important! For the shutter version and power feedback version, the laser will not restart unless the trigger signal is removed and re-applied. Control signal timings must be respected when restarting. See section 8.4.5.

  • Page 49: Diagnostics And Troubleshooting

    4. Diagnostics and troubleshooting 4.1. Laser status indicator diagnostics controller Table 22 - Laser status indicator diagnostics – Luxinar PSU with integrated controller Indicator display Status Action Indicators 1–8 Normal operation — internal mode No action required Indicators 9–16 Indicators 1–8 Normal operation —...
  • Page 50 Indicators 9–16 Indicators 1–8 Temperature fault — internal mode Contact Luxinar Aftersales Indicators 9–16 Table 23 - Laser status indicator diagnostics – OEM PSU with separate Luxinar controller Indicators — left Indicators — right Status Action Normal operation — internal...
  • Page 51 Indicators — left Indicators — right Status Action VSWR error — internal mode Contact Luxinar Aftersales RF IN RF PSU RF TEMP RF FLT DIOD SHTR FLT SHTR SHTR DIS VSWR LAS TEMP CMOD FLOW • Shutter closed — internal...

  • Page 52: Rs232 Error Codes

    Table 24 - RS232 error codes Error code ID Description Action Shutter error The shutter module must be replaced. Contact Luxinar Aftersales. Emission indicator failure • Check the emission indicator wiring loom for damage. • The emission indicator array is faulty and must be replaced.
  • Page 53 • Check the PID parameters. • Test the system with adaptive control switched off. 1. For information concerning use of the OEM 65iX controller, refer to 906-0106-00. 2. Pins 19 and 20 if system is operating in SCX 30 Emulation Mode.
  • Page 54 Check the external modulation signal is within the specified operating parameters. 4. For information concerning use of the OEM 65iX controller, refer to 906-0106-00. 5. For information concerning use of the OEM 65iX controller, refer to 906-0106-00. 4. Diagnostics and troubleshooting...

  • Page 55: Routine Maintenance

    5. Routine maintenance The OEM 65iX has been designed to be low maintenance. Internal routine maintenance procedures are not required. The system's sealed construction and limited number of moving parts ensure trouble-free and reliable operation. 5.1. General cleaning WARNING Laser radiation and electrical hazards Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser radiation exposure.
  • Page 56 Figure 44 - Purge gas filter — version with covers Figure 45 - Purge gas filter — version without covers Replacement filters (part number 402-0006-00) are available from Luxinar Aftersales. Important! Damage caused by a contaminated purge gas supply is not covered by the warranty. It is the responsibility of the OEM system integrator to ensure a correct and adequate purge gas supply is installed.

  • Page 57: Fuse Replacement

    • F3 — Shutter driver Note: If a fuse fails again after replacement, this may indicate a more serious fault. For more information and advice, contact Luxinar Aftersales. Figure 46 - Control unit rear panel fuse holder location 906-0238-00 REV 4...

  • Page 58: Cooling System Contamination

    The pH value, conductivity and dissolved solids levels can be measured using a portable meter. The bacterial contamination level can be checked using a test kit. For more information and advice, contact Luxinar Aftersales. Pay particular attention to the instructions provided by the manufacturer of the NALCO water treatment kit: Drain off the contaminated coolant.

  • Page 59: Frost Protection

    Ensure that disposal of all the materials used in this product is conducted according to all local and national regulations. Flush the coolant circuit with tap water by filling and draining once only. Mix tap water with deionised water in a 1:1 ratio and fill the coolant circuit. Add a NALCO biocide water treatment kit and mix well with the cooling water.
  • Page 60 5. Routine maintenance 906-0238-00 REV 4...

  • Page 61: Installation

    • A flat surface with prepared fixing locations to match the laser mounting feet. See section 6.2.3. • A DC power supply supplied by Luxinar or sourced locally. • A beam delivery system and support brackets with a prepared connection for the laser output window mounting point •...

  • Page 62: Unpacking, Mounting And Connections

    Perform a delivery check An itemised list of the ordered equipment is provided by Luxinar on delivery. Check the equipment against the list to ensure that all items are present. If any equipment is missing inform Luxinar immediately. Check the outside of the packing boxes for obvious signs of damage or change of the shock or tilt labels.
  • Page 63 This could cause the premature failure of the cable and this may in turn eventually damage the power supply or laser head. Note: Luxinar can supply a mounting rail kit (part number 120-0001-00) to assist with system integration.

  • Page 64: Mechanical Fixing

    Figure 51 - Manual lifting with two people — RF power supply 6.2.3. Mechanical fixing Secure the laser head to the host machine using the mounting feet on the base. Each mounting position has an M10 threaded hole and two Ø9 holes. Secure the RF power supply to the host machine using the four M8 threaded holes in the base.

  • Page 65: Laser Output Aperture Location

    CAUTION Risk of optical damage due to vertical orientation Vertical mounting, as shown by orientations B and C, can result in premature failure of laser optics and should be avoided. Mounting with the output window on top of the laser, shown in orientation B, is totally prohibited.

  • Page 66: Coolant Connections And Pipework

    6.2.5. Coolant connections and pipework If the optional Luxinar DC power supply is fitted and the power supply is connected in series with the laser and RF power supply, the coolant must flow through the DC and RF power supplies before the laser head.

  • Page 67: Beam Delivery Optics Purge Gas

    6.2.7. Luxinar combined controller/DC power supply The laser requires a 50VDC power supply, either sourced locally or available from Luxinar as part of a combined controller/DC power supply module. For specifications refer to sections and 2.6.
  • Page 68 Respect the polarity of the terminals on the DC power supply and the RF power supply. The Luxinar combination controller/DC power supply requires a three-phase mains supply with a supply voltage of 360–440VAC. The cable connections are: • L1 — Brown •...
  • Page 69 Figure 59 - Three-phase terminal strip (016-0033-00) The cross-section of the cable connecting the DC power supply to the RF power supply depends on the cable length. Contact Luxinar Aftersales for details of pre-configured cables. Figure 60 - Pre-configured DC cable Two DC cables are required to link the DC power supply and the RF power supply.

  • Page 70: Oem-Sourced Dc Power Supply And Luxinar Controller

    Hazardous energy levels are present at the rear of the controller. 6.2.8. OEM-sourced DC power supply and Luxinar controller The laser requires a 50VDC power supply, either sourced locally or available from Luxinar as part of a combined controller/DC power supply module. For specifications refer to section 2.9.3.
  • Page 71 1A fuse for 50VDC input part number 552-0007-00) Figure 62 - Controller rear panel connections The Luxinar controller requires a three-phase mains supply with a supply voltage of 360–440VAC, however, only two phases are required to power the controller. The cable connections are: •...

  • Page 72: Dc Cabling

    Figure 63 - Two-phase and earth mains cable The mains input is protected by two 500mA fuses located within the controller. The OEM integrator must provide a 50VDC @1A to the controller. The controller monitors this voltage which is used to power electronics within the laser head. The input is protected by a 1A fuse located below the connector.

  • Page 73: Dc Connectors

    A DC connector kit (part number 010-0163-00) is provided for connection from the OEM sourced power supply to the laser system and comprises the following components: Harting 0914 002 2751 female axial module (Luxinar part number 558-0177-00) 906-0238-00 REV 4...
  • Page 74 Harting 0914 016 0361 hinged frame (Luxinar part number 558-0179-00) Harting 0930 016 0521 side entry hood (Luxinar part number 558-0182-00) 6. Installation 906-0238-00 REV 4...
  • Page 75 Harting 0900 000 5106 PG cable gland (Luxinar part number 551-0010-00) To fit a connector: Insert a 4mm hexagonal key into the front of the Harting axial module and turn it anti-clockwise to fully open the module. Strip back the DC cable 12–14mm and push the stripped end fully into the back of the axial module,...

  • Page 76: Rf Cables

    Connector 1 Connector 2 OEM sourced 50VDC PSU Figure 66 - OEM sourced power supply — DC connections 6.2.11. RF cables RF cables linking the RF power supply to the laser head are supplied with the system. RF cables are manufactured to a matched cable length and must not be altered.

  • Page 77: Cables For Robotics Applications

    • Ensure that the RF cable is oriented or positioned to avoid twisting along the axis of the cable. 6.2.12. Cables for robotics applications If the OEM 65iX will be used as part of a robotics system, Luxinar can supply a range of high flexibility cables. For details, contact Luxinar Aftersales.

  • Page 78: Absorbing Thin Film Reflector (Atfr)/Circular Polariser

    110.00 105.00 20.00 2.10 36.00 52.00 8 x DRILL 4.2 THRU ALL & TAP M5 - 6H THRU ALL THEN C 'SINK 5.5 X 90° EQUI-SPACED ON 44.0 PCD Figure 68 - Beam delivery system mounting dimensions Note: The shutter version has a visible light laser diode pointer to assist with beam delivery system alignment.

  • Page 79: Transport And Recommissioning

    7. Transport and recommissioning Before transporting the laser, observe the following precautions: • Completely drain the laser cooling system to prevent damage during shipping. Use clean compressed air, at a maximum pressure of 2bar, to blow out all traces of coolant in the cooling system pipework. WARNING Risk of contamination due to leaking coolant Failure to remove coolant from the system prior to transport can cause damage to the laser.
  • Page 80 7. Transport and recommissioning 906-0238-00 REV 4...

  • Page 81: Interfacing

    8. Interfacing User interface connections for the OEM 65iX are made through the 25-pin connectors on the rear panel of the combined controller/DC power supply or the stand-alone controller. Important! Under certain conditions, it may be possible for power cables carrying high voltages and currents to emit electrical noise levels that may interfere with control cable signals.

  • Page 82: Standard Interface

    8.1. Standard interface Table 27 - Standard interface — U1 pin designations Pin N° Function I/O type Description Signal Program 4 Opto-isolated input Remote program selector bit 5–24V @ 10mA (max) Shutter enable Opto-isolated input Enables operation of the 5–24V @ 10mA shutter (shutter version only) (max) Program 1...
  • Page 83 Pin N° Function I/O type Description Signal Shutter closed 1 Open-drain output Shutter closed position < 30V @ 50mA sensor (max) External interlock (pin 21) This input signal is always required and forms part of the safety channel. Removing this signal will turn off the DC power supply and will stop the laser firing.
  • Page 84 Laser enable (pin 11) — Auto mode only This input will enable the laser from standby without using the MCU. Removal of the input returns the laser back to standby. LM317LZ 120R ACPL-247 LASER ENABLE Vout PTVS24V 6,19 To enable, a voltage input of 5–24V is required on U1, pin 11. A 12V source is available on pin U1, pin Shutter control (pin 23) —...
  • Page 85 Shutter open/closed monitoring (pins 12, 15 and 25) — Shutter version only The safety shutter unit includes three shutter position sensors. One sensor to detect the shutter open position and two sensors to detect the shutter closed position. The sensors are monitored by the controller, and will prevent the laser from firing when a fault condition is detected.
  • Page 86 RS232 transmit and receive (pins 7 and 20) The RS232 interface can be used to communicate with a remote PC in order to monitor the laser ADM3251E For details refer to the Serial interface manual, part number 906-0109-00. VSWR status (pins 10 and 22) The VSWR signal is used to monitor the health of the system.

  • Page 87: Scx 30 Emulation Mode Interface

    B4 (pin 1) B3 (pin 18) B2 (pin 16) B1 (pin 3) Program number Auto mode In Auto mode, once the system is enabled, the system can be operated without using the MCU. Laser enable (U1, pin 11) and Shutter control (U1, pin 23) are used to enable the DC power supply and to open and close the shutter.
  • Page 88 Pin N° Function I/O type Description Signal Emission indicator Opto-isolated output Emission indicator monitor < 30V @ 50mA status (max) Not used — — — Not used — — — Not used — — — RF enable Opto-isolated input Connect to an external 5–24V @ 10mA voltage source or pin 19 (max)
  • Page 89 Laser diode pointer enable (pin 21) For the shutter version, this input is used to show the location of the laser beam without firing the laser. The shutter must be in the closed position for the laser diode beam to be visible. Note: When the shutter is opened, the laser diode pointer is turned off by the control electronics.
  • Page 90 RS422 VSWR status (pins 16 and 17) The VSWR signal is used to monitor the health of the system. If a fault occurs, the signal becomes active and laser output power is automatically reduced. V S WR_S TAT US+ V S WR_S TAT US- D S 8921M Shutter open/closed monitoring (pins 3, 5 and 23) —...

  • Page 91: Connector U2 -All Modes

    RS232 transmit and receive (pins 18 and 22) The RS232 interface can be used to communicate with a remote PC in order to monitor the laser. A DM3251E For details refer to the Serial interface manual, part number 906-0109-00. Emission indicator status monitor (pin 8) The laser emission indicator is located on top of the laser head, close to the laser output window.
  • Page 92 Pin N° Function I/O type Description Signal System enable Volt-free output Relay 3 (NO) 30VDC @ 1A (max) System enable Volt-free output Relay 3 (NC) 30VDC @ 1A (max) Analogue power (RTN) Input Analogue laser power control 4–20mA Not used —...

  • Page 93: Connector U1 - Standard Connections For Laser Output

    PIN 14 - U2 4 - 20mA Regulator Circuit VOLTAGE BC337G (7 - 40V) LOAD I = 4-20mA PIN 1 - U2 Figure 72 - Loop current circuit VSWR status, relay 1 (pins 9, 10 and 22) The VSWR relay is used to monitor the health of the system. If a fault occurs, the volt-free relay closes.

  • Page 94: Minimum Connections - Internal Pwm Mode

    8.4.1. Minimum connections — internal PWM mode WITH SHUTTER WITHOUT SHUTTER SHUTTER ENABLE USER 12V USER 12V TRIGGER TRIGGER EXTERNAL INTERLOCK RTN EXTERNAL INTERLOCK RTN EXTERNAL INTERLOCK OUT EXTERNAL INTERLOCK OUT Figure 73 - Internal PWM mode connections 8.4.2. Minimum connections — Auto mode Note: When operating in auto mode, the system defaults to standby at power up and the shutter and mode of operation can be controlled by external signals.

  • Page 95: Minimum Connections - External Pwm Mode

    8.4.3. Minimum connections — external PWM mode WITH SHUTTER WITHOUT SHUTTER EXTERNAL_PWM EXTERNAL_PWM SHUTTER_ENABLE EXTERNAL INTERLOCK RTN EXTERNAL INTERLOCK RTN EXTERNAL INTERLOCK OUT EXTERNAL INTERLOCK OUT Figure 75 - External PWM mode 8.4.4. Connector U1 SCX 30 emulation connections for laser output Figure 76 - SCX 30 emulation connections 906-0238-00 REV 4 8.

  • Page 96: Timing Diagrams

    Figure 77 - Auto mode timing • When using the Luxinar DC power supply, there will be a 7 second setup time delay before the power supply can be used. This is only valid when mains voltage is first applied.
  • Page 97 Figure 78 - Emulation mode timing • When using the Luxinar DC power supply, there will be a 7 second setup time delay before the power supply can be used. This is only valid when mains voltage is first applied.
  • Page 98 User Shtr Enable (U1.2) Laser Enable (U1.11) DC turn on Open Shutter (U1.23) 200ms 20ms Shutter position Trigger or PWM input Figure 79 - "Open Shutter" command within DC turn-on period User Shtr Enable (U1.2) Laser Enable (U1.11) DC turn on T >...

  • Page 99: Appendix A. Acoustic Zones

    Under certain pulsing regimes, acoustic resonances are set up in the laser which perturb the beam pointing characteristics. To ensure stable beam pointing, avoid operating the laser within the grey shaded areas in the graphs. OEM 65iX Acoustic zones Operating frequency (Hz) Figure 81 - OEM 65iX acoustic zones 906-0238-00 REV 4 A. Acoustic zones...
  • Page 100 A. Acoustic zones 906-0238-00 REV 4...

  • Page 101: Appendix B. Dimensional Drawings

    Appendix B. Dimensional drawings Laser head overall dimensions — version without covers 906-0238-00 REV 4 B. Dimensional drawings...
  • Page 102 RF power supply overall dimensions B. Dimensional drawings 906-0238-00 REV 4...
  • Page 103 Complete system with minimum length RF cables 906-0238-00 REV 4 B. Dimensional drawings...
  • Page 104 Complete system with mounting plates B. Dimensional drawings 906-0238-00 REV 4...
  • Page 105 System centre of gravity — version with covers 906-0238-00 REV 4 B. Dimensional drawings...
  • Page 106 System centre of gravity — version without covers B. Dimensional drawings 906-0238-00 REV 4...
  • Page 107 Controller for use with OEM DC power supply 906-0238-00 REV 4 B. Dimensional drawings...
  • Page 108 B. Dimensional drawings 906-0238-00 REV 4...

  • Page 109: Appendix C. Coolant Requirements And Additives

    <1000cfu/ml The pH value, conductivity and dissolved solids levels can be measured with a portable meter and the bacteria level can be checked with a test kit. For more information contact your local Luxinar Aftersales office. C.2. Suspended particle removal To remove particulate contamination, an in-line filter with a pore size of 100µm must be fitted as close...
  • Page 110 • Disposal of used material Ensure that the disposal of all the materials used in this product is conducted according to all local and national regulations. • Instructions for use Completely empty both inhibitor bottles which are included with the NALCO kit into the cooling water reservoir tank.

  • Page 111: Appendix D. Cooling System Pressure Drop Curves

    Appendix D. Cooling system pressure drop curves OEM 65iX — laser head and power supply circuits in series Flow (litres/min) OEM 65iX — laser head and power supply circuits in parallel Flow (litres/min) OEM 65iX — laser head and power supply (016-0033-00)
  • Page 112 D. Cooling system pressure drop curves 906-0238-00 REV 4...

  • Page 113: Appendix E. Parts List

    Fuse, 500mA T Cerm 600V 569-0002-00 Mains circuit breaker, 32A 553-0015-00 Emission indicator, 12V 95mA LED 552-0007-00 Fuse 5x20mm Cerm T HRC, 1A Note: These parts should only be fitted by trained Luxinar personnel. 906-0238-00 REV 4 E. Parts list...
  • Page 114 E. Parts list 906-0238-00 REV 4...

  • Page 115: Appendix F. Applications Troubleshooting

    Appendix F. Applications troubleshooting This appendix addresses common materials processing issues, their causes and corrective actions. F.1. Common issues Fluctuations in beam intensity at the workpiece The intensity changes can cause variations in marking intensity on some materials. Focus spot height changing relative to the workpiece When beam delivery optics heat up and distort, the focus spot height can change relative to the workpiece.
  • Page 116 Sampled power with the beam blocked by a power meter placed after the beam splitter. Sampled power from the beam splitter while running the machining process. Figure 82 - Sampled power comparison Important! Small back reflections from the surface of an external power sensor can contribute to poor power stability.
  • Page 117 • Contact Luxinar Aftersales • Beam distortion regarding suitability of beam • Unstable power delivery optics for OEM 65iX incident power. • Observe the effect of focussing in and out relative to the workpiece. Acoustic beam steering •...
  • Page 118 • Check for distortion caused by stress in final beam delivery optic mounts. • Contact Luxinar Aftersales regarding optical mounting methods. Intermittent RF power • Fluctuations in intensity at the Check the laser log history for errors.
  • Page 120 Visible and Invisible laser radiation and schematics contained herein are subject to change without notice. Avoid eye or skin exposure to direct or scattered radiation Luxinar Ltd Tel: +44 1482 650088 Meadow Road sales.uk@luxinar.com Bridgehead Business Park www.luxinar.com...
