Double Row 6-Inch Pole Top with SolarMount
© 2007 by UniRac, Inc. All rights reserved.
UniRac welcomes input concerning the accuracy and user-friendliness of this publication. Please write to publications@unirac.com.
T H E S TAN DA R D I N P V M O U N T I NG S T RU C T UR E S
Series 5004 and 5014
Installation Manual 507.6
U.S. Des. Patent No. D496,249S.
Other patents pending.
Thank you for purchasing a UniRac product. Please review
this manual com plete ly before proceeding. This rack mounts
to a 6-inch (150 mm) Schedule 40 or 80 steel pole, outside
diameter 6.625 inches (168.3 mm).

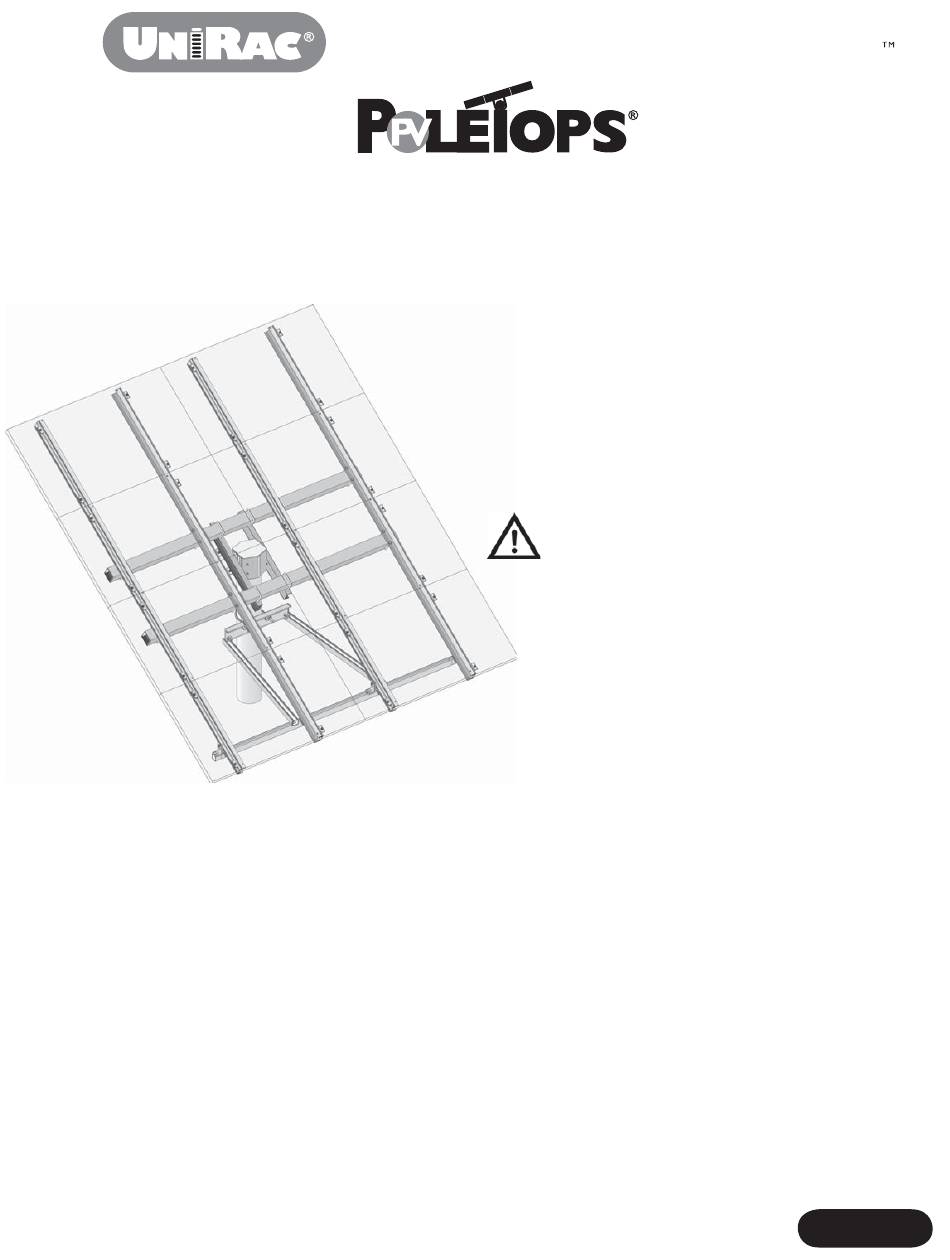

Series 5014 models include a high wind brace (illustrated above).
All Series 5004 models accommodate the high wind brace (item
no. 990365) as an option.
The installer is solely re spon si ble for:
• complying with all applicable building codes, in-
cluding any that supercede these instructions;
• pole installation appropriate for local wind and soil
conditions;
• using only UniRac parts and installer-supplied
parts as specifi ed by UniRac (substitution of parts
will void the warranty);
• installing all electrical aspects of the PV array.
HD Rails
®
May 2007
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for UNIRAC PoleTops 5004 Series
Summary of Contents for UNIRAC PoleTops 5004 Series
- Page 1 • installing all electrical aspects of the PV array. U.S. Des. Patent No. D496,249S. Other patents pending. © 2007 by UniRac, Inc. All rights reserved. May 2007 UniRac welcomes input concerning the accuracy and user-friendliness of this publication. Please write to publications@unirac.com.
- Page 2 (3) avoid spinning on nuts at high speed. See Installation * Per module to be mounted. Series 5014 and 5004 racks include clips and Supplement 910, Galling and Its Prevention, at www.unirac.com. hardware to mount from 4 to 12 modules, depending on the model number.
- Page 3 Series 5004 and 5014 PV PoleTops Manual 507.6 Installation ® Attach struts to pole can On each side of the can, install the center -inch carriage bolt, pushing it through the square hole from Carriage bolts inside the pole can. (The can may now be placed on the lubrication Tilt strut pole and set screws fi...
- Page 4 Manual 507.6 Series 5004 and 5014 PV PoleTops Installation ® 3 / 8 Flange nut, ˝ Plate washer SolarMount HD rail Square cross tube Plate washer Flange nut, 3 / 8 ˝ Square U-bolt Attach cross tubes and rails Rail cross section Attach square cross tube to tilt struts using four square U-bolts and U-bolt plates, secured with -inch fl...
-
Page 5: Install Modules
Series 5004 and 5014 PV PoleTops Manual 507.6 Installation ® Module bolt Flat Washer: Most PV modules have mounting PV module holes small enough to Install modules secure the module bolt without the washer. Use Module Secure each PV module using four clips. the washer with larger mounting hole holes. - Page 6 Series 5004 and 5014 PV PoleTops Installation ® Mounting pole guidelines for UniRac PV PoleTops® The installer is solely responsible for use of these general guide lines. The following variances can affect your installation: • The required diameter and depth of the hole depend on soil type. Sandy soil, for example, requires more concrete.
- Page 7 Manual 507.6 Series 5004 and 5014 PV PoleTops Installation ® High wind brace A high wind brace is standard with all Attach leg struts to pole bracket 3 / 8 Series 5014 PV PoleTops. For all Series and rail strut with remaining 5004 PV PoleTops, it may be installed as -inch hexhead bolts and strut an option (item no.
- Page 8 UniRac’s liability with respect to the Product shall be free from defects in material by UniRac IN WRITING, or if the Product is this limited Warranty. Under no circumstances and workmanship for a period of ten (10) years,...
