Quick Start Guide

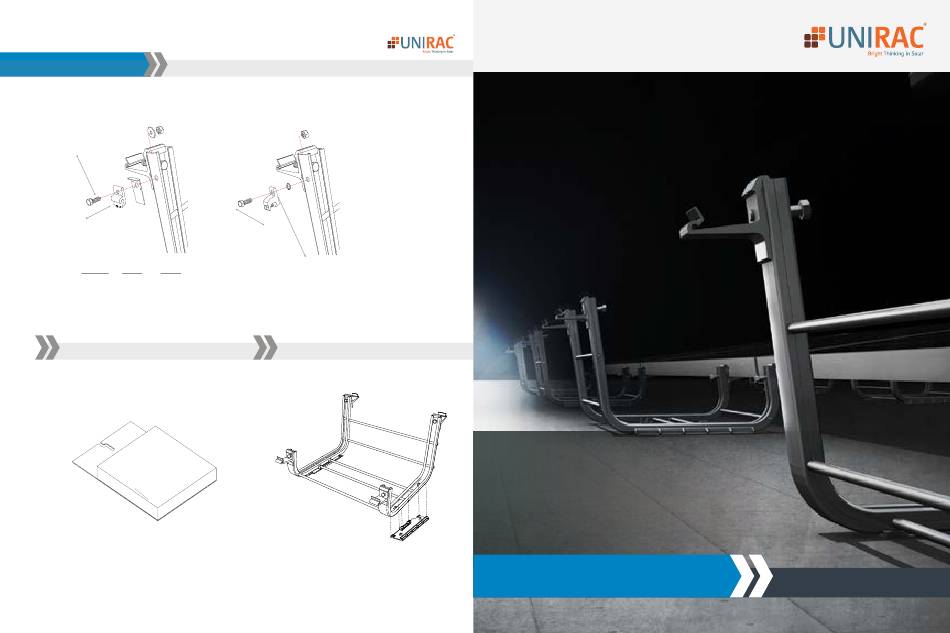

GROUNDING LUG DETAIL
WEEBLug UNIRAC PN 008002S
Conductor: See product data sheet
TORQUE TO 10FT-LBS
SEE PRODUCT DATA SHEET
FOR ACTUAL TORQUE VALUE
Ground Lug
Bolt size
Drill size
WEEBLug
1/4"-20
17/64"
Ilsco
#10-32
7/32"
OPTIONAL MICRO - INVERTER MOUNTING
Note:
Mounting & electrical bonding of micro inverter must be in
accordance with MFR's recommendations
Ilsco lay-in Lug Ilsco PN GBL-4DBT
Conductor: See product data sheet
Grounding Lug Mounting Details:
Details are provided for both the
WEEB and Ilsco
products. The WEEBLug has a
grounding symbol located on the lug
assembly. The Ilsco lug has a green
colored set screw for grounding
indication purposes. One lug is
recommended per string. Installation
must be in accordance with NFPA NEC
70, however the electrical designer
TORQUE TO 5FT-LBS
of record should refer to the latest
revision of NEC for actual grounding
conductor cable size.
TORQUE VALUE DEPENDS ON
CONDUCTOR SIZE.
SEE PRODUCT DATA SHEET
FOR TORQUE VALUE.
OPTIONAL ROOF PAD
PUB140221
RM
ROOF
MOUNT
Quick Start Guide
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for UNIRAC RM
Summary of Contents for UNIRAC RM
- Page 1 Quick Start Guide GROUNDING LUG DETAIL WEEBLug UNIRAC PN 008002S Ilsco lay-in Lug Ilsco PN GBL-4DBT Conductor: See product data sheet Conductor: See product data sheet TORQUE TO 10FT-LBS Grounding Lug Mounting Details: Details are provided for both the WEEB and Ilsco products.
- Page 2 Quick Start Guide Quick Start Guide STANDARD PARTS AND HARDWARE PLACE SOME BALLAST IN 1ST FOUR BAYS FOR FIRST MODULE CLIP OPTIONAL ROOF PAD BOLT AT TACH CLIPS LOOSELY TO BAY POSTS INTENDED TO HOLD MODULES PLACE MODULE IN CLIPS AND TIGHTEN BOLTS NOTE: For complete electrical bonding path, clips must be tapped in place with hammer.
- Page 3 YOUR UNIRAC DISTRIBUTOR SOLIGENT 800-967-6917 www.soligent.net Quick Start Guide Quick Start Guide REPEAT INTERCONNECTING ADJACENTLY COMPLETE BALLAST PLACEMENT NOTE: Place ballast as required. Deviations from block arrangements shown in this guide may cause shading OPTIONAL WIRE MANAGEMENT TORQUE CLIP BOLTS IN SEQUENCE NOTE: Components by others.
