Vulcan-Hart VDMT40 Specifications

SPECIFICATIONS:
Direct steam tilting kettle mounted in a module cabinet base,
Vulcan-Hart Model No. (VDMT40) (VDMT60). Stainless steel
front, doors, sides and legs with rear feet flanged. One-piece
stainless steel spring assist cover. Steam control and dual
temperature faucet mounted on cabinet table top. Direct con-
nected steam kettle. All welded, type 304 stainless steel kettle.
2
Kettle is / jacketed and the bottom is hemispheric design.
3
(Type 316 stainless steel liner - 40 gallons only.) Operates 35
psi (2.4 kg/cm 2 ), includes safety pop-off valve and steam
control. 2" tangent draw-off valve, perforated strainer. Swing
drain and removable strainer under draw-off valve. Hydraulic
power tilt locks into any position set by operator. Kettle tilts 90°
to empty into the stainless steel food receiving pan support.
Requires 120 volt, 60 Hz, 1 phase power supply, _______
amps and direct steam.
Exterior dimensions: (36") (42")w x 33"d x ____ overall height
with cover closed, ____ with cover open.
NSF listed. U L listed. Meets ASME code.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-31675 (10-03)
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________

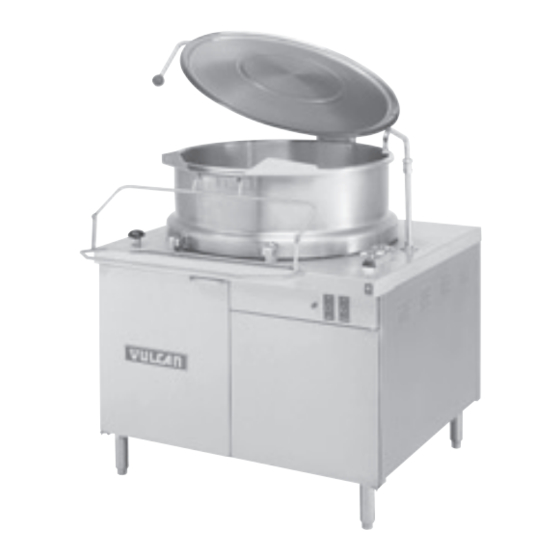

VDMT SERIES
TILTING DIRECT STEAM
KETTLE MODULE IN CABINET BASE
VDMT40 36" wide, 40 gallons (152 liters) capacity.
VDMT60 42" wide, 60 gallons (228 liters) capacity.
STANDARD FEATURES
Stainless steel front, doors, sides and legs with rear feet
flanged.
One-piece stainless steel spring assist cover.
Steam control and dual temperature faucet and 6" swing
faucet mounted on cabinet table top.
Direct connected steam kettle. All welded, type 304 stainless
steel kettle. Kettle is
spheric design. (Type 316 stainless steel liner - 40 gallons
only.) Operates at 35 psi (2.4 kg/cm
valve and steam control. 2" tangent draw-off valve, perforated
strainer.
Swing drain and removable strainer under draw-off valve.
Hydraulic power tilt locks into any position set by operator.
Kettle tilts 90° to empty into the stainless steel food receiving
pan support.
One year limited parts and labor warranty.
OPTIONS
Type 316 stainless steel liner - 60 gallon.
2
50 psi (3.4 kg/cm ) operating pressure.
Correction facility package.
- Cabinet door with hasp (lock by others).
- Security type tamper resistant fasteners with tack welds.
- Front flanged feet.
Stainless steel finishing back.
Mount and interconnect kettle with boiler base at factory.
Includes steam supply piping. Shipped on one skid.
Second year extended limited parts and labor warranty.
ACCESSORIES
Solid strainer (2").
Pressure reducing valve.
Triple perforated stainless steel basket assembly.
Contour measuring strip.
Clean-up kit - includes draw-off brush, clean-up brush with
36" handle and paddle scraper with 40" handle.
Stainless steel 48" whip.
C.S.I. Section 11420
2 / JACKETED
3
2 / jacketed and the bottom is hemi-
3
2 ), includes safety pop-off
