VEVOR ADGT01 User Manual

Cordless grass trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Technical Support and E-Warranty Certificate www.vevor.com/support
Cordless Grass Trimmer
MODEL:ADGT01
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADGT01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VEVOR ADGT01

Summary of Contents for VEVOR ADGT01

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support Cordless Grass Trimmer MODEL:ADGT01 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.

  • Page 2: Cordless Grass Trimmer

    CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...
  • Page 3 Warning-To reduce the risk of injury, user must read instructions manual carefully. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 · Only use the product in the manner and for the functions described in these instructions. Work area safety · Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. · Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
  • Page 5 Personal safety · Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 6 · Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. · Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
  • Page 7 Proper handling of the product will reduce possible personal injury from the cutter blades. 3. Hold the product by insulated gripping surfaces only, because the cutter blade may contact the hidden wiring of its own cord. Cutter blades contacting a "live" wire may make exposed metal parts of the product "live" and could give the operator an electric shock.
  • Page 8 · Always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals. · Always wear suitable working clothes during working, which allow freedom of movement. · Never operate the appliance which is damaged, incomplete or changed without the approval of the manufacturer.
  • Page 9 4). Store the product only in a dry place. 5). Use only spare parts and accessories approved by the manufacturer. Residual risks Even if you are operating this product in accordance with the provisions, residual risks will always still remain. The following dangers can arise in connection with the structure and design of this product: 1).
  • Page 10 2). Stop the motor and disconnect the battery from the product if there is any malfunction. Have the product checked by a qualified professional and repaired, if necessary, before you put it into operation again. Safety Warnings and Instructions: Batteries ■.
  • Page 11 electrocution. An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety, and to prevent loss of power and overheating. The smaller the gauge number of the wire, the greater the capacity of the cable; that is, 16 gauge has more capacity than 18 gauge.
  • Page 12 PRODUCT SPECIFICATIONS Model ADGT01 Rated Voltage 20V DC No Load Speed 7600rpm Cutting Device Auto Feed Cutting Swath 300mm Diameter Guaranteed 92 dB(A) Sound Power Level Battery Charger HY-1287U1 Battery Pack VV-SP2020 (20V 2AH) VV-EX2040 (20V 4AH) These instructions should be read in conjunction with the instruction manual for the battery pack and charger.

  • Page 13: Charging Procedure

    CHARGING PROCEDURE IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions. (1) To ensure that the charger you use is applicable to the battery pack. (2) Plug the charger plug into the charging hole of the battery pack. (3) Plug the charger into any suitable standard outlet.
  • Page 14 113°F (45°C). 3. While charging, the charger may hum and become warm to the touch. This is a normal phenomenon and does not indicate a problem. 4. If the batteries do not charge properly—(1) Check the current at the receptacle by plugging in a lamp or other appliance.

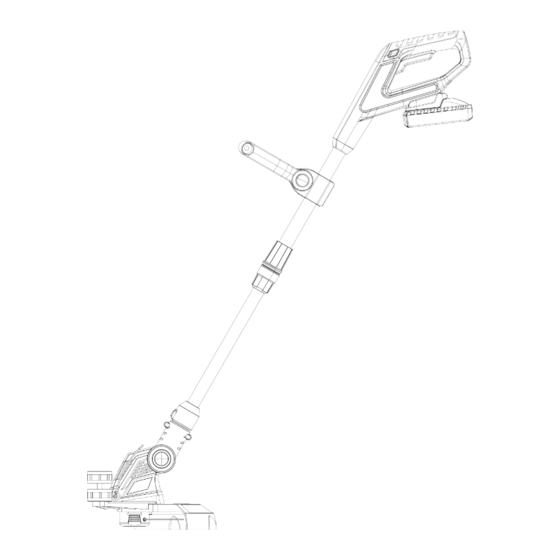

  • Page 15 MAJOR PARTS OF THE GRASS TRIMMER 1 unlock knob 2 switch handle 3 main handle 4 battery pack 5 Auxiliary handle 6 handle lock nut 7 handle support 8 locking sleeve(length adjustment) 9 telescopic pole 10 lock sleeve and edging function button 11 trimmer head 12 edging function wheel 13 flower guard...
  • Page 16 Scope of delivery ---Grass trimmer ---Battery pack ---Charger ---Safety guard ASSEMBLY Warning! Remove the battery pack before cleaning or maintaining the tool, fitting the plant guard before making any adjustments to the tool, especially around the string head. Remove the battery pack before transporting or storing the tool.
  • Page 17 Fitting the guard WARNING: Remove the battery pack before attempting to attach the guard. Never operate the tool without the guard firmly in place. The guard must always be on the tool to protect the user. -Push the Head Rotation Pedal to rotate the cutting head to a vertical position, then rotate the flower Guard (13) forward to the working position.

  • Page 18: Operation

    Fitting and Removing the battery (Fig6—Fig7) Fig.6 Fig.7 The battery should always be removed whenever you are not using the tool and especially when you are adjusting or transporting the tool to avoid accidental operation. To insert the battery, slide it into the grass trimmer until it latches into place. Check that the battery is securely locked into place ( Fig.6-7) To remove the battery, press and hold the button on the two sides of the battery pack and slide the battery away from the trimmer.

  • Page 19: Trimming Tips

    Trimming tips: -Keep the trimmer tilted toward the area being cut. This is the most efficient cutting area. -The string trimmer cuts when moving the unit from left to right. This will avoid throwing debris at the operator. -Use the tip of the string to do the cutting, do not force the string head into uncut grass.
  • Page 20 NOTE: The cutting line will wear faster and require more feeding if the cutting or edging is done along sidewalks or other abrasive surfaces or if heavier weeds are being cut. Setting the handle length Turn the lock sleeve towards the 'unlock' symbol about half a turn. Slide the lower part of the trimmer up or down to the desired length.

  • Page 21: Environmental Protection

    ENVIRONMENTAL PROTECTION We are certain that you share out love of nature, and that you have already devoted some thought to ways of protecting the environment. It may well be that you are already familiar with some of the following recommendations and view them as a matter of course.
  • Page 22 waste. They make a very good "mulch". Grass clippings can be spread under bushes or trees; they are a natural means of preventing the growth of weeds, and they protect the ground from drying up. Protect your little neighbors. A garden is inhabited by small animals such as beetles and frogs. Try to drive off any animals before trimming and allow them to find a temporary retreat.
  • Page 24 Technical Support and E-Warranty Certificate www.vevor.com/support...
