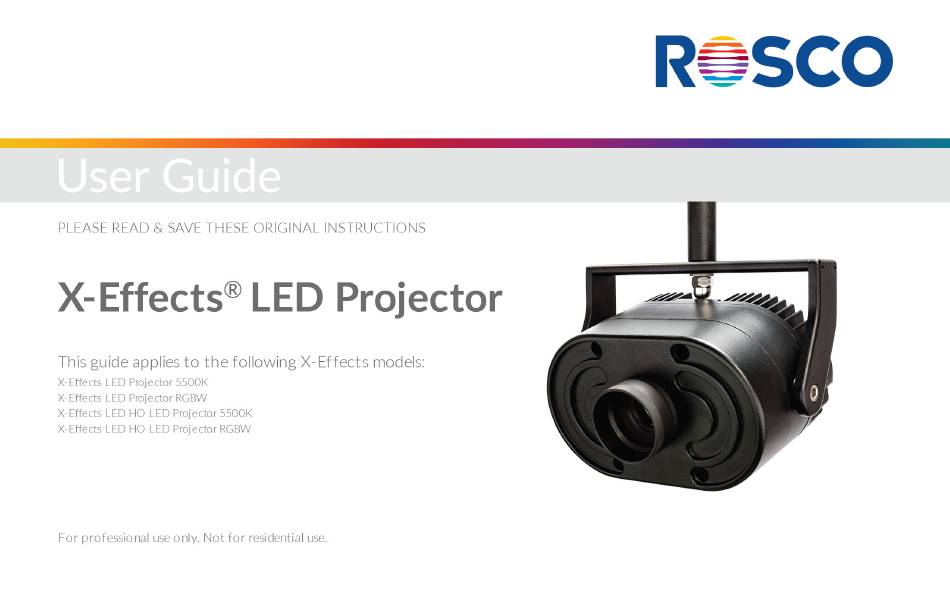

Summary of Contents for Rosco X-Effects LED Projector RGBW
-
Page 2: Table Of Contents
Warranty ............................ 24 Information and specifications in this document are subject to change without notice. Rosco assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. X-Effects LED Projector User Guide v6 Copyright ©2023 by Rosco... -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of a Rosco X-Effects LED Projector. The IP65-rated Rosco X-Effects LED Projector offers the perfect balance of performance and durability by providing dramatic illumination effects for a broad range of lighting-applications. Designed to create dynamic lighting effects, the X-Effects LED Projector is quick and easy to set-up with convenient on-board or remote DMX controls. - Page 4 PREVENTING ELECTRIC SHOCK This machine uses mains electrical power at 100-240VAC. When directly contacted, such voltages are hazardous to human life. Follow all local electrical codes and take precautions when using this product. This product is designed to operate from three-wire power systems, where one of the wires is a safety ground.
- Page 5 Rosco X-Effects LED Projector is not certified for use in hazardous locations Rosco X-Effects LED Projector is designed for operation within the range of -4° to 113°F (-20° to +45°C). Ensure Rosco X-Effects LED Projector is stored within the range of -4° to 140°F (-20° to +60°C).
-
Page 6: Unpacking
UNPACKING Carefully remove the unit from the box. Do not attempt to operate your Rosco X-Effects LED Projector if there are any signs of physical damage. In case of damage, contact your Rosco dealer. WHAT’S IN THE BOX 1x X-Effects LED Projector: •... -
Page 7: Assembly
ASSEMBLY INSERTING GOBOS Before operating, you must first insert the appropriate gobos to achieve your desired dynamic lighting effects. Your X-Effects LED Projector can accept one gobo in the static gobo pocket (37.4mm with custom bezel) and two rotating off-set effects glass gobos (96mm with custom bezel) in the Motor Rotation Module. You can utilize any combination of static gobos, Permacolor Filters, ColorWave, Image Glass, or custom gobos to create effects such as wispy smoke, rippling water, raging fire, and more. - Page 8 Static Gobo Insertion • If using a static gobo, ensure your it is clean, free of dust, fingerprints, and other residues. • Carefully insert the gobo in the static gobo pocket. — Hold the gobo to view the image the way you’d like it projected. —...
- Page 9 Ensure your effects glass gobos are free of dust, fingerprints, and other residues. — All X-Effects LED Projectors include two X-Effects LED Effects Glass (96mm) - Single 297000000075. Additional Effects glass can be found at www.rosco.com/products/catalog/gobos?type=68. • Place the first effects glass gobo into the first rotation carrier closer to the optic.
- Page 10 Quick-turn screws on the front of Static gobo pocket in the Motor the Lens Tube Module Rotation Module Image A Image B Gobos stack flat side to side Image C Image D...
-
Page 11: Weatherproofing
WEATHERPROOFING The X-Effects LED Projector is an IP65 rated fixture, but it must be installed and serviced properly to maintain its waterproofing. Here is a summary of procedures to follow for long lasting operation: • Do not install the unit without an X-Effects LED Projector lens. It is required for protecting and sealing the front opening from ingress. - Page 12 LEGACY X-EFFECTS UNITS WATERPROOFING For X-Effects LED units with serial numbers less than the below, it is strongly recommended to apply Rosco supplied sealing tape to protect against water exposure. Newer units have an improved design to help prevent ingress.
-
Page 13: Inserting Focusing Lens
INSERT FOCUSING LENS Your Rosco X-Effects LED Projector requires a focusing lens to project its effects properly. Four X-Effects LED Projector Lens options are available, providing a range of beam angles for various projection distances. Select the appropriate lens to optimize the effect in your venue: 297000000019 X-Effects LED Projector Lens - 19º, Black... -
Page 14: Wiring Instructions
WIRING INSTRUCTIONS Your Rosco X-Effects LED Projector will include a detached power+data cable with socket UTL connector that mates with the connector on the back of the luminaire. The user end of the cables are unterminated and should be connected to appropriate power and data supplies. -
Page 15: Mounting, Controls & Operation
MOUNTING, CONTROLS & OPERATION Mount the X-Effects LED Projector via the center hole in the yoke in the desired location, making sure it is located at least 4” (100mm) above ground level. Adjust pan and tilt as required and secure via the hex bolts on the sides of the yoke. - Page 16 The Rosco X-Effects LED Projector offers manual operation, or remote operation via user-supplied DMX512 data input. Manual Mode The X-Effects LED Projector beam intensity, motor speeds and direction can be adjusted independently via the dials on the rear panel. UTL Connector (Power &...
- Page 17 X-Effects LED Projector. • The default DMX address is 001 on all X-Effects LED units shipped from the factory. • Rosco’s 16-bit RDM ESTA UID is (0x5252) with the fixture’s 6-digit serial number equating to the low 4 octets of the UID.
- Page 18 RGBW X-Effects LED Projectors require a total of 8 DMX channels for control: 1. Motor 1 Speed 5. Output Intensity: Red 2. Motor 1 Direction 6. Output Intensity: Green 3. Motor 2 Speed 7. Output Intensity: Blue 4. Motor 2 Direction 8.
-
Page 19: Ordering Accessories
ORDERING ACCESSORIES 297000000019 X-Effects LED Projector Lens - 19°, Black 297000000030 X-Effects LED Projector Lens - 30°, Black 297000000050 X-Effects LED Projector Lens - 50°, Black 297000000070 X-Effects LED Projector Lens - 70°, Black 297000000010 X-Effects LED Framing Shutters - Set of 4 297000000011 X-Effects LED Lens Cover 297000000012... - Page 20 X-Effects LED Static ColorWave Gobo (XXXXX = five digit gobo number) X-Effects Static Gobos/Filters are the same size as the Image Spot Gobos/Filters and can be used interchangeably (37.4mm with custom bezel). The custom bezel is required for gobos to fit Rosco units properly.
- Page 21 Combine any two Dynamic Effects Glass Gobos (96mm) including ColorWaves, Image Glass, and Custom Gobos; and a Static Gobo including Steel, Glass, Permacolor, or Custom, to create endless unique lighting effects. Visit the gobos page to see all available options: http://www.rosco.com/products/family/gobos...
-
Page 22: Specifications
SPECIFICATIONS Power Input Voltage: Universal 100-240VAC 50-60 Hz Maximum Power Consumption: 45W/90W HO Data: DMX 512 – UTL Connector Physical Characteristics Dimensions: 5.5in L x 10.1in W x 5.8in H / 5.5in L x 10.1in W x 6.5in H HO (including yoke) (14.2cm L x 25.8cm W x 14.8cm H/ 14.2cm L x 25.8cm W x 16.7cm H HO) Weight:... - Page 23 Approvals: ETL: Meets UL standards #1573, #8750 cETL: Meets CSA standards C22.2 #166, #250 Ratings: IP65 Outdoor Use in Wet Environments Environmental Disposal of Old Electrical & Electronic Equipment This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 24: Warranty
This warranty does not cover damage to the Rosco Product caused by parts not manufactured, distributed or certified by Rosco. Rosco is not obligated to provide warranty service should the Product fail to be properly maintained or fail to function properly as a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as flood, fire and lightning, improper electrical current or unauthorized service repairs other than those by a Rosco Authorized Servicer. - Page 25 OF MERCHANTABILITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. EXCEPT AS PROVIDED IN THIS WRITTEN WARRANTY AND UNLESS EXCLUSIONS ARE SPECIFICALLY FORBIDDEN BY STATE LAW, NEITHER ROSCO NOR ITS AFFILIATES WILL BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING INJURY TO PERSONS OR PROPERTY, RESULTING FROM THE USE OR INABILITY TO USE THE ROSCO PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY OTHER LEGAL THEORY.
