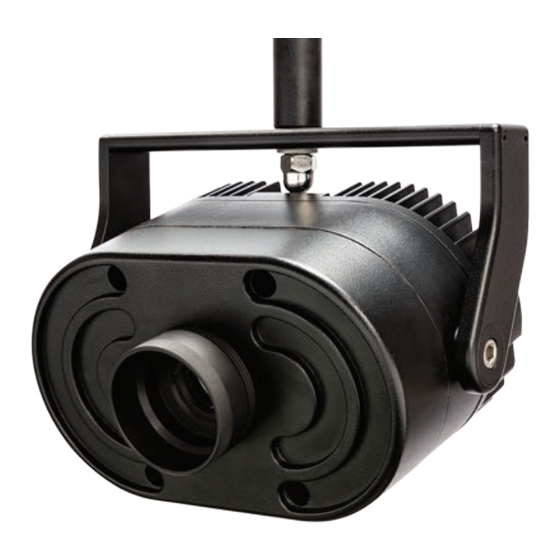

Rosco X-Effects LED Projector 5500K User Manual

X-effects series

Hide thumbs Also See for X-Effects LED Projector 5500K:

User manual (26 pages)

Table Of Contents

Quick Links

User Guide

PLEASE READ & SAVE THESE ORIGINAL INSTRUCTIONS

X-Effects

This guide applies to the following X-Effects models:

X-Effects LED Projector 5500K

Black (297000055001 )

White (297000055002)

Silver (29700005503)

X-Effects LED Projector RGBW

Black (2970000RGBW1)

White (2970000RGBW2)

Silver (2970000RGBW3)

For professional use only. Not for residential use.

LED Projector

Table of Contents

Need help?

Do you have a question about the X-Effects LED Projector 5500K and is the answer not in the manual?

Questions and answers

Summary of Contents for Rosco X-Effects LED Projector 5500K

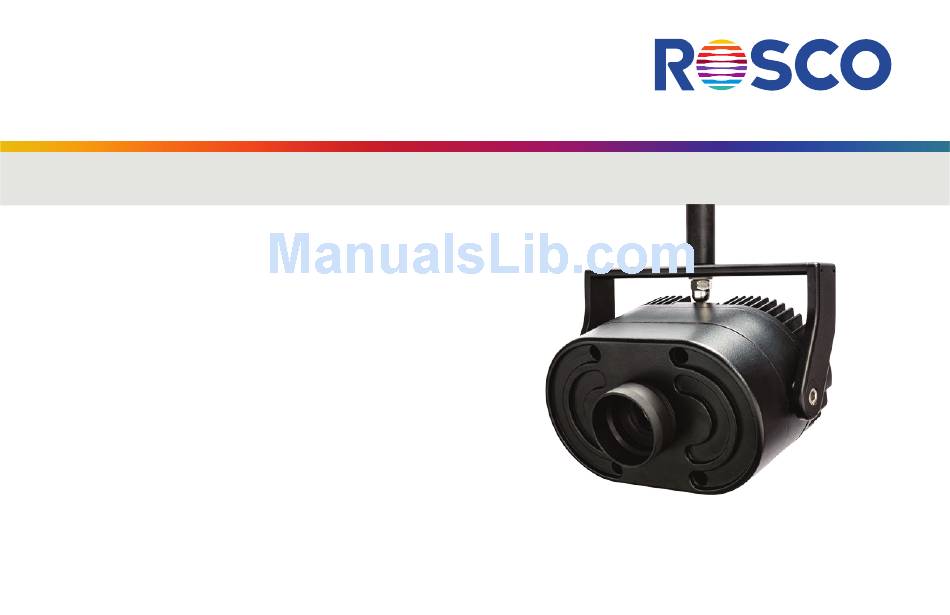

Page 1 User Guide PLEASE READ & SAVE THESE ORIGINAL INSTRUCTIONS X-Effects LED Projector ® This guide applies to the following X-Effects models: X-Effects LED Projector 5500K Black (297000055001 ) White (297000055002) Silver (29700005503) X-Effects LED Projector RGBW Black (2970000RGBW1) White (2970000RGBW2) Silver (2970000RGBW3) For professional use only.
Page 3: Table Of Contents
Warranty ............................ 26 Information and specifications in this document are subject to change without notice. Rosco assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. X-Effects LED Projector User Guide v1 Copyright ©2017 by Rosco...
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of a Rosco X-Effects LED Projector. The IP65-rated Rosco X-Effects LED Projector offers the perfect balance of performance, durability and affordability by providing dramatic illumination effects for a broad range of lighting-applications. Designed to create dynamic lighting effects, the X-Effects LED Projector is quick and easy to set-up with convenient on-board or remote DMX controls.
Page 5 PREVENTING ELECTRIC SHOCK • This machine uses mains electrical power at 100-240VAC. When directly contacted, such voltages are hazardous to human life. Follow all local electrical codes and take precautions when using this product. • This product is designed to operate from three-wire power systems, where one of the wires is a safety ground.
Page 6 • Rosco X-Effects LED Projector is not certified for use in hazardous locations • Rosco X-Effects LED Projector is designed for operation within the range of -4° to 113°F (-20° to +45°C). • Ensure Rosco X-Effects LED Projector is stored within the range of -4° to 140°F (-20° to +60°C).
Page 7: Unpacking
UNPACKING Carefully remove the unit from the box. Do not attempt to operate your Rosco X-Effects LED Projector if there are any signs of physical damage. In case of damage, contact your Rosco dealer.
Page 8: Assembly
ASSEMBLY 1.) Insert Effects Glass Gobos Prior to operating the X-Effects LED Projector, it is recommended that the unit’s Effects Glass Gobos (96mm) be inserted into the fixture’s Motor Rotation Module. The Motor Rotation Module can be accessed by loosening the (4) recessed quick-turn screws on the front of the unit.
Page 9 Quick-Turn Screws Image A Image B Image C Image D...
Page 10 Your X-Effects LED Projector can also be used for static image projections. Simply insert the X-Effects LED Gobo into the pocket in the center of the Motor Rotation module, and remove any Effects Glass Gobos if present. (Image B) Visit the Image Glass page to see all of the available options: www.rosco.com/imageglass...
Page 11 An assortment of (96mm) ColorWave, Textured or Custom Gobos can be used in place of one or both Dynamic Effects Gobos to create a variety of unique lighting effects. Visit the Image Glass page to see all of the available options: www.rosco.com/imageglass...
Page 12 Other Dynamic Effects Gobo Part Numbers: 2507210IDXFX X-Effects LED Dynamic Custom Steel Gobo 255XXXXXDXFX X-Effects LED Dynamic Image Glass Gobo (XXXXX = five digit gobo number) 255XXXXXDXFX X-Effects LED Dynamic ColorWave Gobo (XXXXX = five digit gobo number) 260CUSBWDXFX X-Effects LED Dynamic Custom B&W Glass Gobo 260CUS1CDXFX X-Effects LED Dynamic Custom One-Color Glass Gobo 260CUS2CDXFX...
Page 13 2.) Insert Focusing Lens Your Rosco X-Effects LED Projector requires a focusing lens (sold separately) to project its effects properly. Four X-Effects LED Projector Lens options are available, providing a range of beam angles for various projection distances. Select the appropriate lens to optimize the effect in your venue: 297000000019 X-Effects LED Projector Lens - 19º, Black...
Page 14 3.) Wiring Instructions Your Rosco X-Effects LED Projector will include a detached power+data cable with female UTL connector that mates with the connector on the back of the luminaire. Units sold in North America will utilize a cable harness assembly. Units sold outside of North America will utilize a hybrid power+ data cable. The user end of the cables are unterminated and should be connected to appropriate power and data supplies.
Page 15 The power wiring color-code for all product sold outside of North America is as follows: Core No1: Live (Hot) Lead Core No2: Neutral Lead Yellow/Green: Ground (YE-GN) The data wiring color-code is as follows: DMX IN Green (GN): Data+ Yellow (YE): Data –...
Page 16: Mounting, Controls & Operation
MOUNTING, CONTROLS & OPERATION Mount the X-Effects LED Projector via the center hole in the yoke in the desired location, making sure it is located at least 4” (100mm) above ground level. Adjust pan and tilt as required and secure via the hex bolts on the sides of the yoke.
Page 17 The Rosco X-Effects LED Projector offers manual operation, or remote operation via user-supplied DMX512 data input. Manual Mode The X-Effects LED Projector beam intensity, motor speeds and direction can be adjusted independently via the dials on the rear panel. Rotating the motor speed/direction dials fully clockwise or UTL Connector (Power &...
Page 18 X-Effects LED Projector. • The default DMX address is 001 on all X-Effects LED units shipped from the factory. • The RDM address will reference Rosco’s 16-bit UID (0x5252) with the fixture’s 6-digit serial number as the suffix.
Page 19 RGBW X-Effects LED Projectors require a total of 8 DMX channels for control: 1. Motor 1 Speed 5. Red Color Output 2. Motor 1 Direction 6. Green Color Output 3. Motor 2 Speed 7. Blue Color Output 4. Motor 2 Direction 8.
Page 20: Ordering Accessories
ORDERING ACCESSORIES 297000000019 X-Effects LED Projector Lens - 19°, Black 297000000030 X-Effects LED Projector Lens - 30°, Black 297000000050 X-Effects LED Projector Lens - 50°, Black 297000000070 X-Effects LED Projector Lens - 70°, Black 297000000S19 X-Effects LED Projector Lens - 19°, Silver 297000000S30 X-Effects LED Projector Lens - 30°, Silver 297000000S50...
Page 21 Static Filter Part Numbers 297000000085 X-Effects LED Amber Filter - Fire Effect 297000000090 X-Effects LED Green Filter - Aurora Effect 297000000095 X-Effects LED Blue Filter - Water Effect 120X-YYYY-SXFX X-Effects LED Permacolor Dichroic Glass Filter (YYYY = four digit color number) Static Gobo Part Numbers 2507210ISXFX X-Effects LED Static Custom Steel Gobo...
Page 22 Dynamic Effects Gobo (96mm) Part Numbers 297000000075 X-Effects LED Effects Glass (96mm) - Single 2507210IDXFX X-Effects LED Dynamic Custom Steel Gobo 255XXXXXDXFX X-Effects LED Dynamic Image Glass Gobo (XXXXX = five digit gobo number) 255XXXXXDXFX X-Effects LED Dynamic ColorWave Gobo (XXXXX = five digit gobo number) 260CUSBWDXFX X-Effects LED Dynamic Custom B&W Glass Gobo...
Page 24: Specifications
SPECIFICATIONS Power Input Voltage: Universal 100-240VAC 50-60 Hz Maximum Power Consumption: Physical Characteristics Dimensions: 10.25in x 9in x 7.4 in 7.4 in / 18.8 cm 10.25 in / 26 cm (including yoke) (26cm x 22.9cm x 18.8cm) Weight: 9 lb (4.1 kg) LED: Color Temperature = 5500K or RGBW 4,000 lumen output (5500K units)
Page 25 Approvals: ETL: Meets UL standards #1573, #8750 cETL: Meets CSA standards C22.2 #166, #250 Ratings: IP65 Outdoor Use in Wet Environments Environmental Disposal of Old Electrical & Electronic Equipment This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
Page 26: Warranty
This warranty does not cover damage to the Rosco Product caused by parts not manufactured, distributed or certified by Rosco. Rosco is not obligated to provide warranty service should the Product fail to be properly maintained or fail to function properly as a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as flood, fire and lightning, improper electrical current or unauthorized service repairs other than those by a Rosco Authorized Servicer.
Page 27 OF MERCHANTABILITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. EXCEPT AS PROVIDED IN THIS WRITTEN WARRANTY AND UNLESS EXCLUSIONS ARE SPECIFICALLY FORBIDDEN BY STATE LAW, NEITHER ROSCO NOR ITS AFFILIATES WILL BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING INJURY TO PERSONS OR PROPERTY, RESULTING FROM THE USE OR INABILITY TO USE THE ROSCO PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY OTHER LEGAL THEORY.
Page 28 5007481...
