Summary of Contents for Rosco Image Spot HO

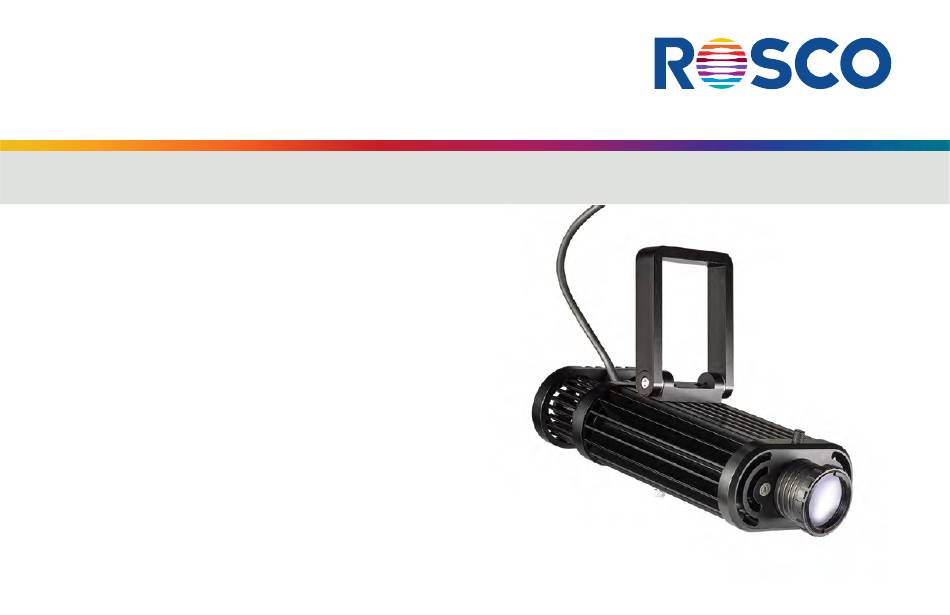

- Page 1 User Guide PLEASE READ & SAVE THESE ORIGINAL INSTRUCTIONS Image Spot ®...
-
Page 2: Table Of Contents
Warranty ............................20 Information and specifications in this document are subject to change without notice. Rosco assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Image Spot™ HO User Guide Copyright ©2023 by Rosco... -
Page 3: Introduction
Congratulations on your purchase of a Rosco Image Spot HO projector, designed to provide crystal-clear imaging. Image Spot HO is quick and easy to set up. Please refer to your Image Spot box label for the specifications of your Image Spot variant, such as the dimming method, IP rating, and more. - Page 4 PREVENTING ELECTRIC SHOCK This machine uses mains electrical power at 100-305VAC nominal. When directly contacted, such voltages are hazardous to human life. Follow all local electrical codes and take precautions when using this product. This product is designed to operate from three-wire power systems, where one of the wires is a safety ground.
- Page 5 Rosco Image Spot HO is not certified for use in hazardous locations. Rosco Image Spot HO is designed for operation within the range of -13° to 104°F (-25° to +40°C). Ensure Rosco Image Spot HO is stored within the range of -4° to 140°F (-20° to +60°C).
-
Page 6: Unpacking
UNPACKING Carefully remove the unit from the box. Do not attempt to operate Rosco Image Spot HO projector if there are any signs of physical damage. In case of damage, contact your local Rosco dealer. Your Rosco Image Spot HO projector requires that an Image Spot focusing lens tube (purchased separately) be inserted into the opening on the front of the unit prior to operation. -
Page 7: Installing Lens Tube
INSTALLING LENS TUBE Slip the two provided O-rings onto the grooves on the back end of the lens tube. Gently insert the end of the lens tube with O-rings into the opening on the front of the projector. Please note, if there is any resistance or pressure when installing the lens, you may need to remove the gobo cassette to allow air to flow out of the fixture. -
Page 8: Gobo Projection
GOBO PROJECTION Prior to operating the Image Spot HO projector insert an Image Spot gobo and/or Permacolor dichroic glass filter into the gobo cassette located on the underside of the fixture. Check to ensure the gobos are free of dust, fingerprints and other residue prior to inserting the cassette into the accessory slot. -
Page 9: Dichroic Color Filters
Rosco Permacolor dichroic filters are available to provide fully customizable, long-term color options for your Image Spot HO. For optimal performance and installation, specify Image Spot Permacolor Filters that feature custom bezels to fit securely inside the Image Spot gobo cassette. -
Page 10: Wiring
WIRING Your IP rated Rosco Image Spot HO projector will arrive with an unterminated hybrid power cord attached to the unit. Wiring to a Rosco-supplied driver and the driver to line voltage should be performed by a qualified electrician and is the responsibility of the installer or end user. - Page 11 Note: the suggested current is 1400mA, any variation may result in under performance or a shortened LED life cycle, and may void warranty. Ensure the correct power connections have been made to the Image Spot HO projector. The fixture will immediately illuminate upon receiving power and a valid control signal.
-
Page 12: Mounting
MOUNTING The Image Spot HO projector can be installed in the desired location via the 5/8” center hole in the yoke. Adjust pan as required. Adjust and fix the tilt of the projector via the threaded (1) hex screw using the included hex key or (2) optional knurled thumb knob (included with the Image Spot HO Welcome Pack) on the side of the yoke. -
Page 13: Focusing
Due to the ultra-clear optics of the Image Spot HO projector, it is advised to keep the optic path clean of dust and debris. Use a non-abrasive micro-fiber cloth with Rosco Lens Cleaner to clean the Image Spot lenses and any glass gobos or Permacolor dichroic glass filters you may have installed. -
Page 14: Maintaining Waterproofing
MAINTAINING WATERPROOFING The Image Spot HO is an IP65 rated fixture, but it must be installed and serviced properly to maintain its waterproofing. Here is a summary of procedures to follow for long lasting outdoor operation: Do not install the unit without a lens tube. It is required for protecting and sealing the front opening •... -
Page 15: Dimming Controls
Smartphone App* A single channel is required for output intensity control via DMX. • *Please refer to the for addressing your DMX Image Spot HO DMX programming guide Onboard Potentiometer External Driver • Manual intensity adjustment can be made with screwdriver... - Page 16 DIMMING CONTROLS - Continued External Driver Warnings 1. Electrical Shock Hazard: Always consult a qualified technician for any issues. 2. Weather Protection: Install the external driver indoors or ensure they are sheltered from rain when placed outdoors to prevent irreparable damage. 3.
-
Page 17: Accessories
Image Spot Wide Angle Lens Optic / 30º 296000010013 Image Spot OPTI-FLECS Filter Pack with Retaining Ring 296000010012 Image Spot Safety Cable, 3-ft (1m) 296000005101 Rosco Pole Mount Accessory - Black 296000005102 Rosco Pole Mount Accessory - White 296000005104 Rosco Wall Mount Accessory - Black... -
Page 18: Ordering Gobos & Permacolor Filters
ORDERING GOBOS & PERMACOLOR FILTERS Gobos and Permacolor Dichroic Filters for the Image Spot HO projector can be easily ordered through any Rosco dealer. Visit www.rosco.com to locate the dealer nearest you and provide them with the information below. Standard Gobos... -
Page 19: Technical Specifications
Minimum: 39VDC (from external driver) LM-79-08: 70,000 hours @ 25°C Maximum Power Consumption: Gobo Specifications Rosco Image Spot Gobo with Data Control: DMX, 0-10V or DALI via external driver custom carrier In and Thru, hybrid IP65 power & data cable Working Environment Ambient Temp.: Working temperature:... - Page 20 Approvals: Conforms to UL STD # 62368-1 & # 60950-22 Certified to CSA STDS C22.2 # 62368-1 & # 60950-22 Ratings: IP65 Outdoor Use in Wet Environments Environmental: Disposal of Old Electrical & Electronic Equipment This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 21: Warranty
This warranty does not cover damage to the Rosco Product caused by parts not manufactured, distributed or certified by Rosco. Rosco is not obligated to provide warranty service should the Product fail to be properly maintained or fail to function properly as a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as flood, fire and lightning, improper electrical current or unauthorized service repairs other than those by a Rosco Authorized Servicer. - Page 22 OF MERCHANTABILITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. EXCEPT AS PROVIDED IN THIS WRITTEN WARRANTY AND UNLESS EXCLUSIONS ARE SPECIFICALLY FORBIDDEN BY STATE LAW, NEITHER ROSCO NOR ITS AFFILIATES WILL BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING INJURY TO PERSONS OR PROPERTY, RESULTING FROM THE USE OR INABILITY TO USE THE ROSCO PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY OTHER LEGAL THEORY.
- Page 23 5007481...
