Michel's EZ-Lift Instructions

Multi mount trailer

Download this manual

0017-000001 - Michel's EZ-Lift Kit for Flat Deck, Van, Cattle Liner, and Small Trailers

Description:

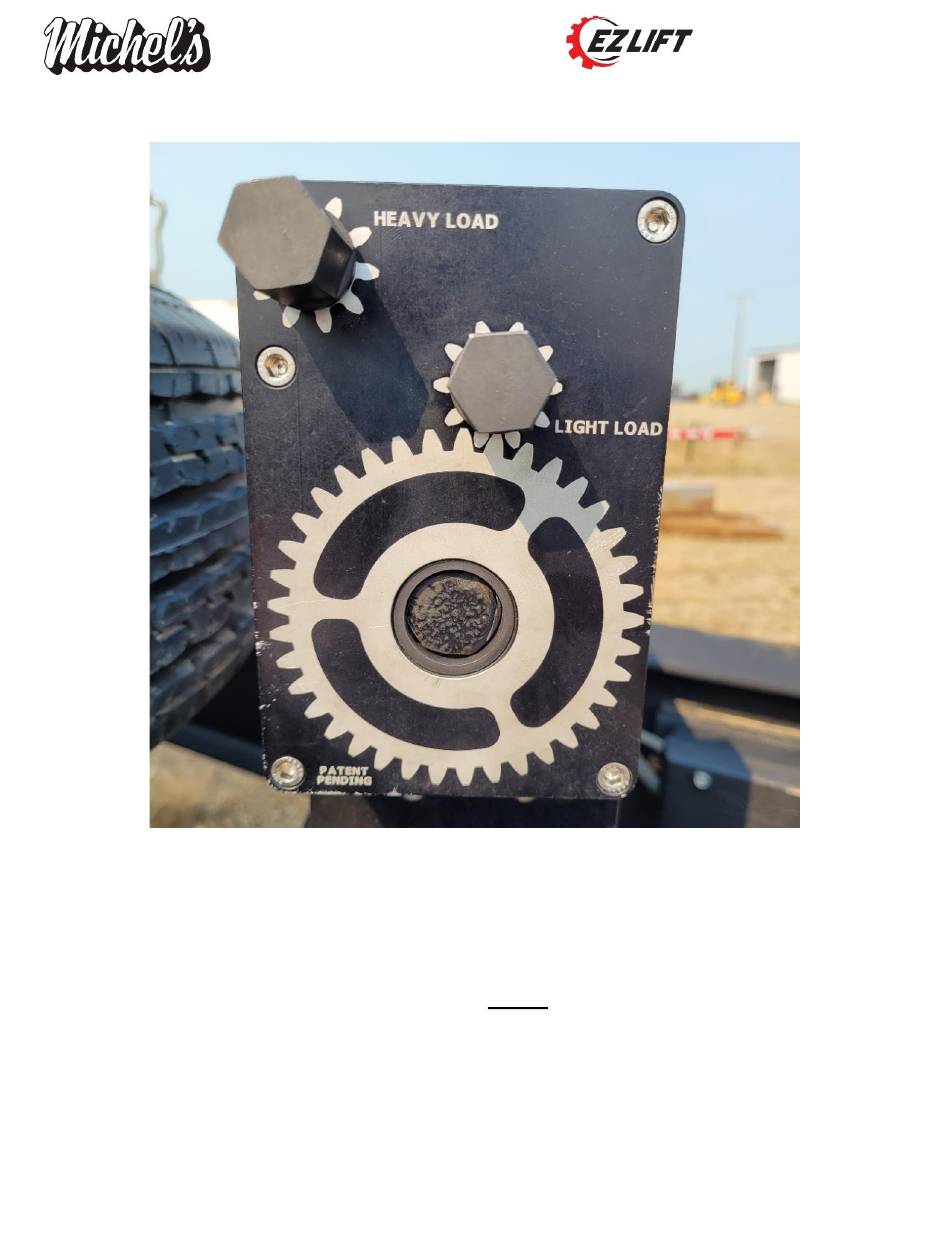

The Michel's EZ-Lift is a patent pending, torque amplifying gear box designed to raise and lower the Landing Gear on a

trailer. The Michel's EZ-Lift has two reduction ratios, one for lighter loads to get the job done faster, and one for heavy

loads to effortlessly raise or lower your loaded trailer. This kit allows for a wide array of mounting options and is

designed to work with Flat Deck, Van, Cattle Liner, and Small Trailers.

The Michel's EZ-Lift may be left on one trailer if desired and not removed between uses.

trailers the

EZ-Lift

can put the trailer over Legal width and MUST be removed after use.

What is included:

1-Michel's EZ-Lift

1-Mounting Bracket

1-Socket Adapter

1-STOP Decal

1-Nut Key

*Warning the use of Hammer Drill or Impact will void the Warranty*

Multi Mount Trailer

1-Mounting Bolt

1-Quick Pin

1-Quick Pin with chain

1-Lag screw

1-Instruction

Instructions

Please Note that on some

Need help?

Do you have a question about the EZ-Lift and is the answer not in the manual?

Page 1 The Michel’s EZ-Lift is a patent pending, torque amplifying gear box designed to raise and lower the Landing Gear on a trailer. The Michel’s EZ-Lift has two reduction ratios, one for lighter loads to get the job done faster, and one for heavy loads to effortlessly raise or lower your loaded trailer.
Page 2 Slide the EZ-Lift onto the input shaft and determine if the cross hole of the landing gear will line up with the slot in the EZ-Lift. If the hole does not line up with the slot in the EZ- Lift, the EZ-Lift may need to be reconfigured to the “Out The Rear Assembly”.
Page 3 When raising the trailer up using the Michel’s EZ-Lift, the “Yellow” portion of the decal means Caution. As soon as any portion of the red sticker is visible, it is a Warning to STOP raising the trailer up.
Page 4 Operation: Once the Michel’s EZ-Lift is attached to the landing gear of a trailer, it is ready to be used. To operate the EZ-Lift, use a socket adaptor (Included) with a 3/4″ socket and a cordless drill to effortlessly raise or lower the trailer.
