Michel's MIC210 Instructions Manual

MIC210 Electric Farm Conversion Instructions
Note: Apply the supplied Dielectric Lubricant to all wire connections when each wire is hooked up. The Dielectric
Lubricant will help to prevent corrosion.

Step 1: Disassemble

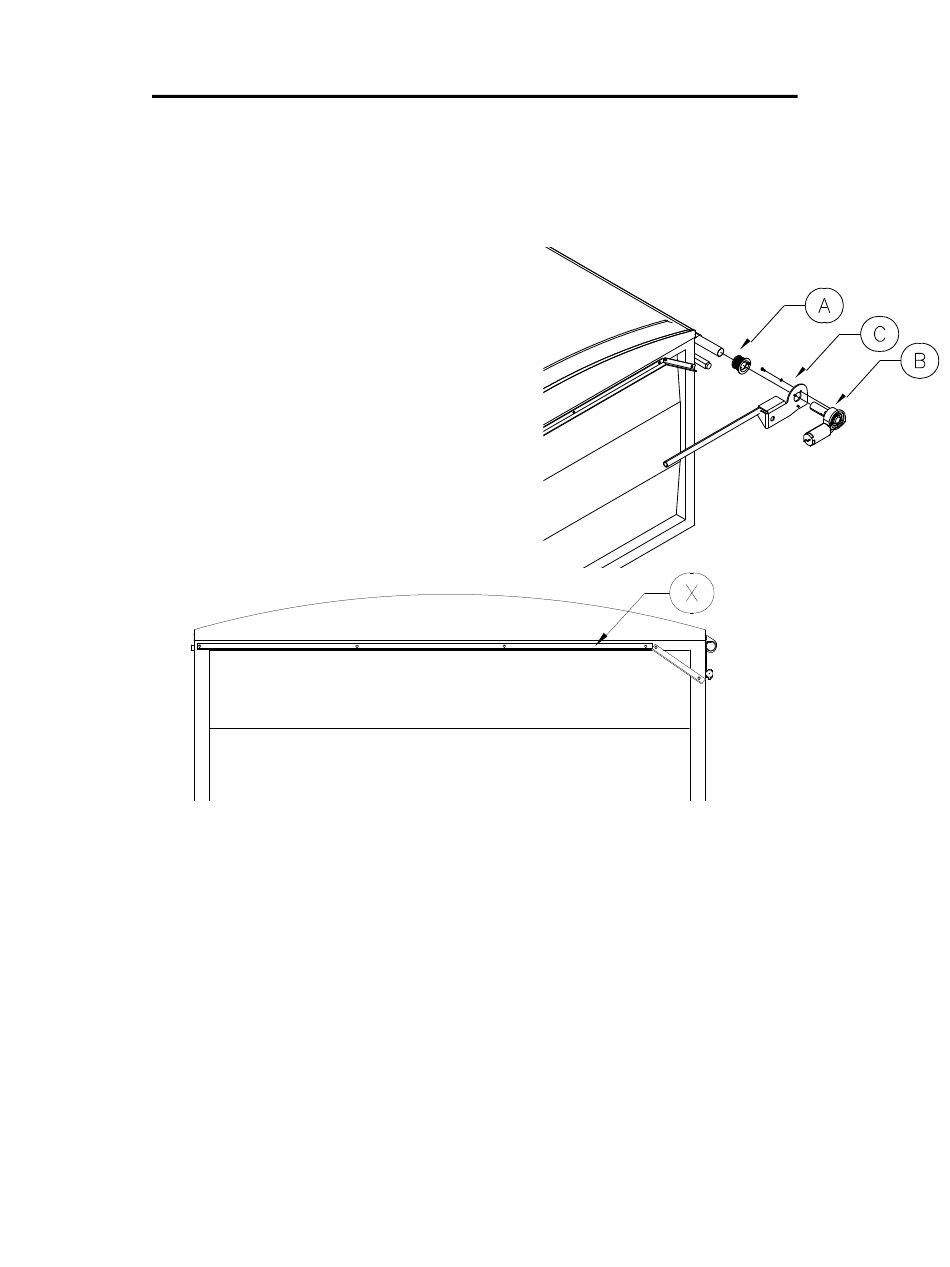

With the tarp all the way open, make a note of the number of
wraps of the tension cable on the front pulley (A) and measure
the distance from the pulley to the tarp. Now you can loosen the
pulley and remove it from the roll tube

Step 2: Electric Pivot Arm Guide

Procedure: The electric pivot arm guide (X) is an aluminum
angle with one end bent down. Place on the front of the box
against the top rail of the box with the bent end on the driver's
side. The bent end should be so it is just under the square tubing
of the holdbacks (see below). Secure to the box with 1/4"x1" lag
screws. You may need to bend it more and shorten the length if
necessary.

Step 3: Roll tube Preparation

If the roll tube does not stick at least 4" past the front of the box you will need to cut the roll tube back and weld
the supplied roll tube extension into the front of the roll tube. The minimum length of the extension piece can be
5-1/2" to the weld. After the roll tube extension is welded in, cut the front of the roll-tube so it sticks 4" past the
front of the box.
Step 4: Reinstall the front bevel pulley in the same location and wraps as were noted previously in Step 1.
.
Rev: 19/September/2017
