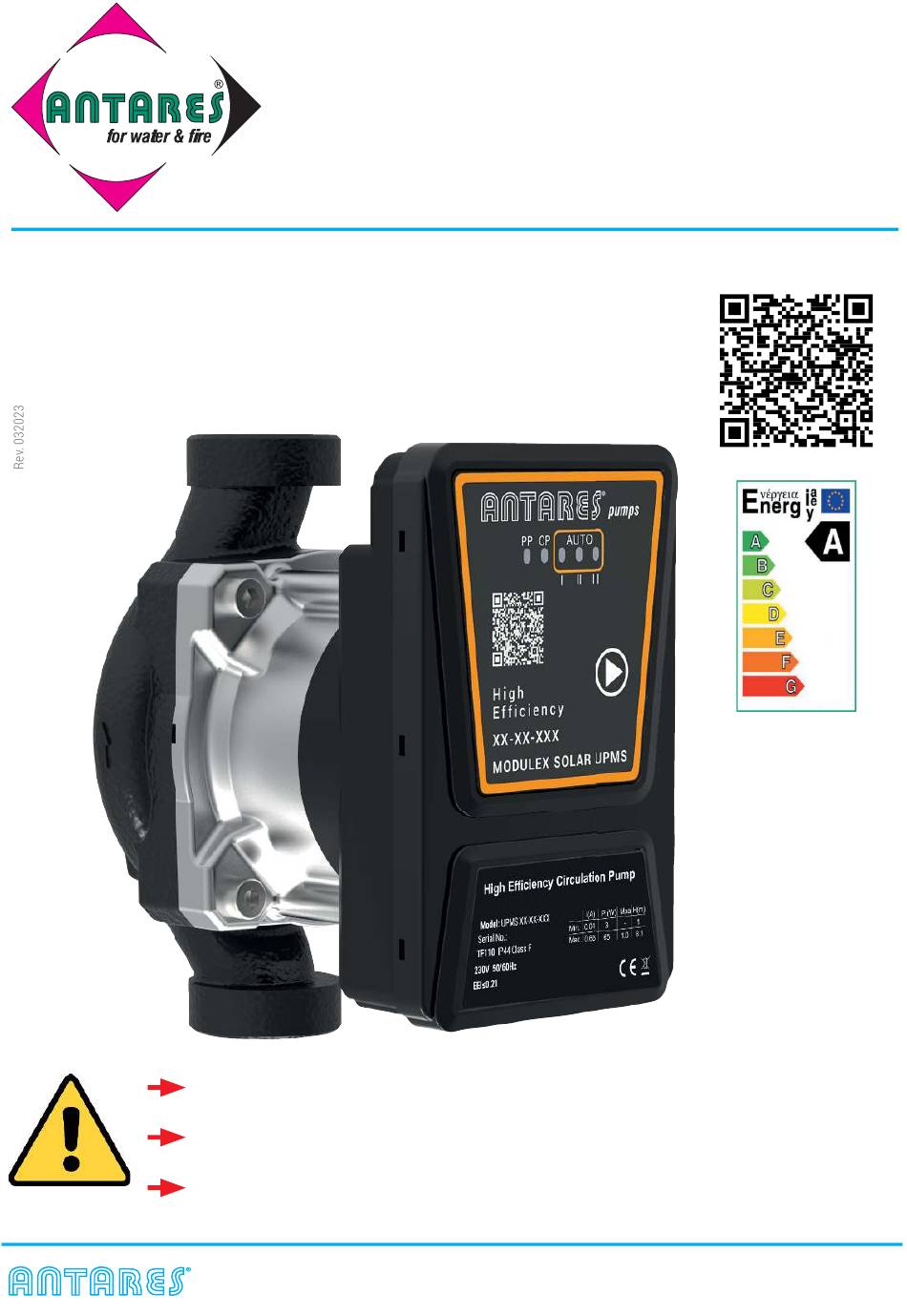

Intelligent frequency conversion circulation pump
INSTALLATION AND INSTRUCTION MANUAL
for water & fire
MODULEX SOLAR UPMS
CONNECT THE EARTH ROD BEFORE THE POWER SUPPLY
DO NOT TOUCH THE PUMP WHILEST FUNCTIONING
DO NOT FUNCTION THE PUMP WITHOUT WATER
ANTARES
®
for water & fi re S.r.l.- Via degli Alpini, 144 - 55100 Lucca - ITALIA
Tel. + 39 0583 473701 Fax +39 0583 494366 - ant3@antaresint.com- www.antaresint.com
P.023
EEI≤0,21
Advertisement
Table of Contents
Related Manuals for Antares P.023
Summary of Contents for Antares P.023
- Page 1 P.023 MODULEX SOLAR UPMS Intelligent frequency conversion circulation pump INSTALLATION AND INSTRUCTION MANUAL EEI≤0,21 CONNECT THE EARTH ROD BEFORE THE POWER SUPPLY DO NOT TOUCH THE PUMP WHILEST FUNCTIONING DO NOT FUNCTION THE PUMP WITHOUT WATER ANTARES ® for water & fi re S.r.l.- Via degli Alpini, 144 - 55100 Lucca - ITALIA Tel.
- Page 2 P.064 FIG. 1 FIG. 2 FIG. 4 FIG. 3 Power cable: 230 Vac Brown Yellow Blue Brown: (PH) Phase Yellow / Green: Earth Blue: (N) Neutral FIG. 5 Controller cable PWM Rosso Giallo Nero Yellow: PWM output (from pump) FIG. 6 Red:PWM input (from controller) Black: Earth cable (GND) FIG.7...
-
Page 3: Table Of Contents
MODULEX SOLAR UPMS Overview of components Fig. 1 e Fig. 2 Pump body with threaded connections Wet rotor motor Body fi xing screws Electronic control board Pump identifi cation plate Control button for pump setting Operation LED lights: control mode selected/fault Connecting the PWM control cable 230 Vac mains power supply: connection of the 3-pole plug INDEX... - Page 4 MODULEX SOLAR UPMS Thank you very much for choosing ANTARES products. Please read the instructions before installation and use and store them with care. Warning ● This product is not intended for the public, but for professionally specialized companies. ● Read the instructions carefully before installation and use.
-
Page 5: Introduction
MODULEX SOLAR UPMS 1 - Introduction The ANTARES MODULEX SOLAR UPMS circulation pump is an intelligent frequency conversion circulator with integrated electronic differential pressure control, with the possibility of setting the regulation module and the head (differential pressure). The differential pressure is controlled by the pump numbers of revolutions. -
Page 6: Technical Data
MODULEX SOLAR UPMS 2.3 - Technical data Supply Voltage 220-240 V, 50/60 Hz Motor protection Does not require any external protection Protection class IP44 Insulation class Relative room humidity Max 95% Pressure Max. 1.0 MPA, 10 bar 0.05 bar, ≤ 75°C 0.005MPa Liquid Min. -
Page 7: Precautions
MODULEX SOLAR UPMS 3 - Precautions CONNECT THE EARTH ROD BEFORE CONNECTING THE POWER SUPPLY DO NOT TOUCH THE PUMP WHILEST FUNCTIONING DO NOT FUNCTION THE PUMP WITHOUT WATER 3.1. - The power supply voltage of the electric pump is single-phase 220-240V and the frequency is 50/60Hz. -
Page 8: Use And Installation
MODULEX SOLAR UPMS 4.2 - Liquid temperature and room 4 - Use and installation temperature 4.1- Pumped liquids Clean liquids, not aggressive and not explosive, not containing solid particles, fi bers or mineral oils. The PH is 6,5-, 5. Max. pressure: 1.0 MPa (10 bar) 1.0 M Liquid temperature (t1) -
Page 9: Installation
MODULEX SOLAR UPMS 4.3 - Installation The motor shaft must be kept in horizontal direction during installation, the direction of liquid flow in the pipe must be the same as the arrow marked on the pump body. Step 1 Step 2 Step 3 Correct installation position of the motor Incorrect position... -
Page 10: Control Panel Positions
MODULEX SOLAR UPMS 4.4 - Control panel positions (Fig. 1 ref. 4) The following operations may only be performed by qualifi ed personnel High temperature High tem 1 - Installation direction preview 2 - Disconnect power supply before 3 - Drain the liquid from the system and close adjustment the valves High temperature... -
Page 11: Electrical Connection
If The socket of the new circulator does not match the plug of the old one, put an electric coversion adapter on the plug of the old cable and on the plug of the new circulator. See the adapters in the ANTARES catalogue of sockets for Grundfos (our art. -
Page 12: Pwm Controller Cable Connection
If the socket of the new circulator does not match the plug of the old one, insert an electrical conversion adapter on the plug of the old cable and that of the new circulator. See in the ANTARES catalogue gli socket adapters for Grundfos circulators (our art. P.163.01) or Wilo (our art. -
Page 13: Instructions For Use
MODULEX SOLAR UPMS 5 - Instructions for Use 5.1 - Control panel Button 5.2- Performance curves Pump performance symbols: PP= Proportional Pressure CP= Constant Pressure CS= Constant Speed AUTO = Self Adapt – Automatic Control Possibility to set the control mode and the delivery (differential pressure). The differential pressure is regulated by the pump speed. -
Page 14: Adjustment Mode With Reference To The Led Lights
MODULEX SOLAR UPMS 5.3 - Adjustment mode with reference to the LED lights The pump functionality setting is confi gured with different display of the LED lights. Press number of Model Descriptions Display times PP CP AUTO CS III (Factory setting) Constant curve speed III AUTO PP CP... -
Page 15: Adjustment Modes And Functions
MODULEX SOLAR UPMS 5.4 - Adjustment modes and functions Variable differential Recommended in case of heating systems with delivery pressure ∆p-v (I, II, III,) and return pipes with radiators, for the reduction of flow noise on thermostatic valves and zone sections. = Proportional Pressure The pump halves the delivery in case of flow reduction in the pipeline network (radiators or closed areas). -
Page 16: Pwm2 Input Signal For Solar Systems
MODULEX SOLAR UPMS The "MODULEX SOLAR PUMPS" was created for use in solar systems using the PWM2 signal but can also be used in heating systems by setting the PWM1 signal. The pump speed is controlled according to the signal PWM input External adjustment via signal, when connected. -
Page 17: Pwm1 Input Signal For Heating Systems
MODULEX SOLAR UPMS PWM input signal (%) Pump status Stop 0<PWM≤7 Standy mode: off 7<PWM≤15 Max speed work phase 12<PWM≤15 Max speed. initial phase 15<PWM≤95 Variable speed: from min. to max. 95<PWM≤100 Maximum speed 5.4.2 PWM1 input signal (heating systems) At high PWM signal rates (duty cycles), a hysteresis prevents the circulation pump from starting and stoping if the input signal fluctuates around the change point. -
Page 18: Pwm Signal: Technical Data
MODULEX SOLAR UPMS 5.4.3 PWM signal: technical data Galvanic isolation in the pump PWM frequency input 100 - 5000Hz High level input voltage UiH 3.3 - 24V Low level input voltage UiL <0.7V High input current IH 3.5mA - 10mA PWM input duty cycle 0-100% Signal polarity... -
Page 19: Additional Functions
MODULEX SOLAR UPMS 5.5 - Additional functions 5.5.1 - Vent function The vent function of the pump is activated by pressing the button for a long time until the fi rst three LEDs light up and releasing immediately. The pump will automatically vent. 5.5.2 - Manual release function after long periods of absence The manual restart function of the pump is activated by pressing the button for a long time... -
Page 20: Troubleshooting
MODULEX SOLAR UPMS 6 - Troubleshooting Symptom Probable cause What you can do Make sure that the power cord is Loose connection on power supply securly connected to the cable Blown fuse Replace the damaged fuse Damaged capacitator Replace the damaged capacitator Pump does not work The motor impeller can be wrapped with fi... - Page 21 Als Herteller erklären wir unter unserer alleinigen Verantwortung, daß die Nassläufer-Umwälzpumpen der Baureihen: Nous, Antares for Water & Fire Srl, déclarons sous notre responsabilité que les types de circulateurs des séries: We, Antares for Water & Fire Srl, declare under our responsability that these glandless circulating pump types of the series: - Il numero della serie è...
- Page 22 The warranty does not apply for installations on systems with an antifreeze glycol concentration higher than 50%.. ANTARES for water & fi re S.r.l. Via degli Alpini, 144 - 55100 Lucca - ITALIA Mespil House, Sussex Road, Dublin 4 Tel.
