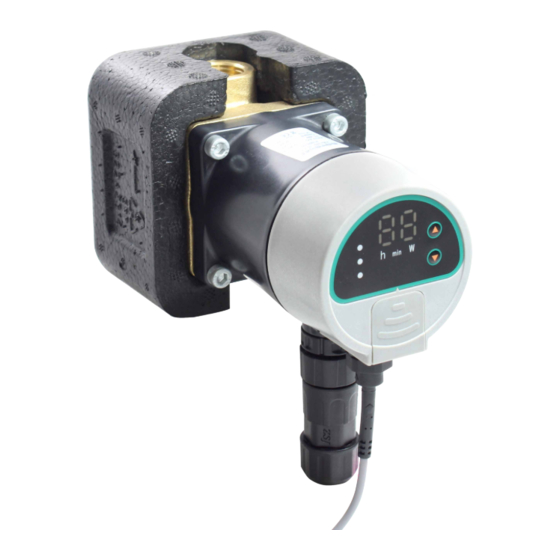

HOTMATIC 15-1.5
P.095.00
Advertisement
Table of Contents
Related Manuals for Antares HOTMATIC 15-1.5
Summary of Contents for Antares HOTMATIC 15-1.5
- Page 1 P.095.00 HOTMATIC 15-1.5 Energy-saving Microcirculation Pump INSTALLATION AND OPERATING INSTRUCTIONS ANTARES ANTARES for water & fire S.r.l.- Via degli Alpini, 144 - 55100 Lucca - ITALIA ® for water & fire S.r.l. - Via degli Alpini, 144 - 55100 Lucca - Italia ®...
-
Page 2: Precautions For Use
P.064 P.095.00 Precautions for use: Read the installation manual carefully before installation and use. The manufacturer will not be liable for any personal injury, motor pump damage and other property damage due to failure to comply with contents specified in safety warning signs. The installers and operators must comply with local safety regulations. -
Page 3: Symbol Description
P.064 P.064 P.095.00 19. The product should be placed in a dry, ventilated and cool place and stored at room temperature. This product is not for the use of unqualified persons but for professional installers. Warning: Before installation, you must carefully read the installation and operation manual. -
Page 4: Operation Conditions
4 - Installation 4.1 - Installation • When installing HOTMATIC 15-1.5 Microcirculationo pump, the arrow on the pump casing indicates the flow direction of liquid through the pump. • When installing the motor pump in the pipeline, two gaskets must be installed at the inlet and outlet. - Page 5 P.064 P.064 P.095.00...
-
Page 6: Electrical Connection
P.064 P.095.00 5 - Electrical connection Electrical connection and protection shall comply with local codes and norms. Warning: • The motor pump must be connected to an external power switch, and the minimum space between all the electrodes is 3mm. The motor pump needs no protection from external motor. -
Page 7: Control Panel
P.064 P.064 P.095.00 6 - Control panel Position Descriptions Indicating constant speed running mode Indicating Auto operation mode Indicating temperature control mode • Power indicated • Running (or stop) time indicated in timing mode Running (or stop) hours set in timing mode Running (or stop) minutes set in timing mode Power unit shown under normal operation •... -
Page 8: Timing Mode
P.064 P.095.00 7.3 - Indicating temperature control mode Temperature sensor will obtain the feedback in terms of fluid temperature and make a judgement on whether start or stop when it is in the indicating temperature control mode. In such mode,pump will stop when temperature is over 50 centigrade, but it will run in constant speed when temperature is below 36 centigrade. - Page 9 P.064 P.064 P.095.00 Fault Code Description malfunction detected, power supply must be cut off before Over-voltage protection trouble-shooting. After the trouble is Under-voltage protection addressed, re-connect the power and Over-current protection start the motor pump. Under-load protection Over-phase protection Locked-rotor protection Motor start failure protection (Motor paramaters do not match) Temperature sensor failure...
-
Page 10: Installation Dimensions
P.064 P.095.00 8.2 - Installation dimensions G 1/2” 141 ± 0.5 Trouble-Shooting Warning: Before conducting any maintenance and repair of the motor pump, ensure that power supply has been cut off and will not be connected accidentally. Symptom Control Panel Cause Corrective Action Equipment fuse burned... -
Page 11: Certificato Di Garanzia
P.064 P.064 P.095.00 HOTMATIC 15-1.5 Energy-saving Microcirculation Pump CERTIFICATO DI GARANZIA The product is guaranteed for a period of 24 months from the date of purchase. By guarantee we mean the repair or replacement of the circulator that shows functional faults excluding shipping costs which are charged to the Customer. - Page 12 Via degli Alpini, 144 - 55100 Lucca - ITALIA Landstrasser Hauptstrasse, 71/2 - 1030 Wien Tel. + 39 0583 473701 Fax +39 0583 494366 Tel. +49 8993 948950 Fax +49 8993 948953 internet: www.antaresint.com internet: www.antaresint.com e-mail: at@antaresint.com e-mail: ant3@antaresint.com 207, Av.
