Operation
ITEM NAME
FUNCTION
CONTROLS
j^Refer to figure 5 to identify the controls.

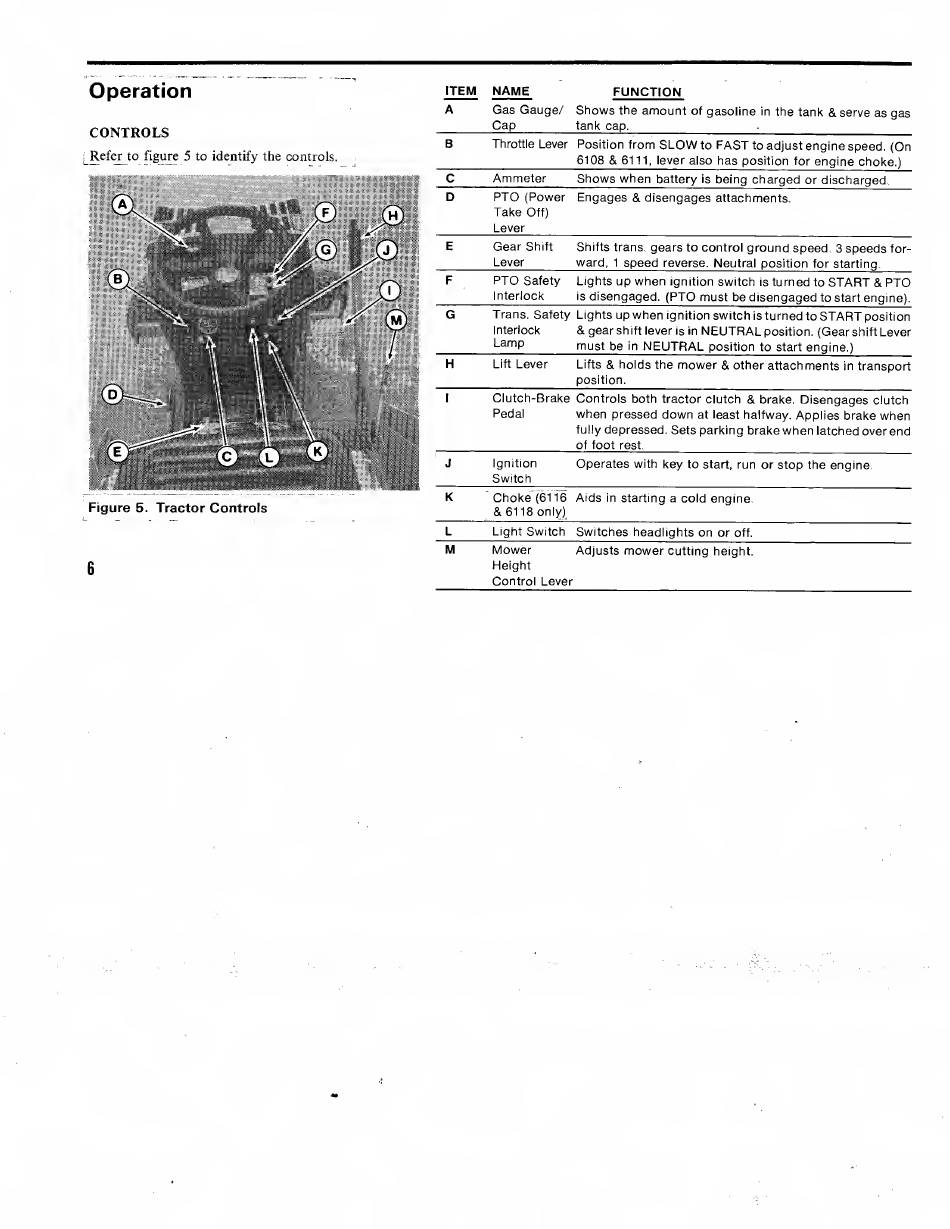

Figure 5. Tractor Controls
6
A Gas Gauge/
Cap
Shows the amount of gasoline in the tank & serve as gas
tank cap.
B
Throttle Lever Position from SLOW to FAST to adjust engine speed. (On
6108 & 6111, lever also has position for engine choke.)
C
Ammeter
Shows when battery is being charged or discharged.
D PTC (Power
Take Off)
Lever
Engages & disengages attachments.
E
Gear Shift
Lever
Shifts trans. gears to control ground speed. 3 speeds for¬
ward, 1 speed reverse. Neutral position for starting.
F
PTC Safety
Interlock
Lights up when ignition switch is turned to START & PTO
is disengaged. (PTO must be disengaged to start engine).
G
Trans. Safety Lights up when ignition switch isturned to START position
Interlock & gearshift lever is in NEUTRAL position. (Gearshift Lever
Lamp must be in NEUTRAL position to start engine.)
H
Lift Lever
Lifts & holds the mower & other attachments in transport
position.
I
Clutch-Brake Controls both tractor clutch & brake. Disengages clutch
Pedal when pressed down at least halfway. Applies brake when
fully depressed. Sets parking brake when latched over end
of foot rest._
J
Ignition
Switch
Operates with key to start, run or stop the engine.
K " Ohoke'(6116
& 6118 only)^
Aids in starting a cold engine.
L Light Switch Switches headlights on or off.
M
Mower
Height
Oontrol Lever
Adjusts mower cutting height.
