- Page 1 Pluto Assembly Manual...
-
Page 2: Tools Required

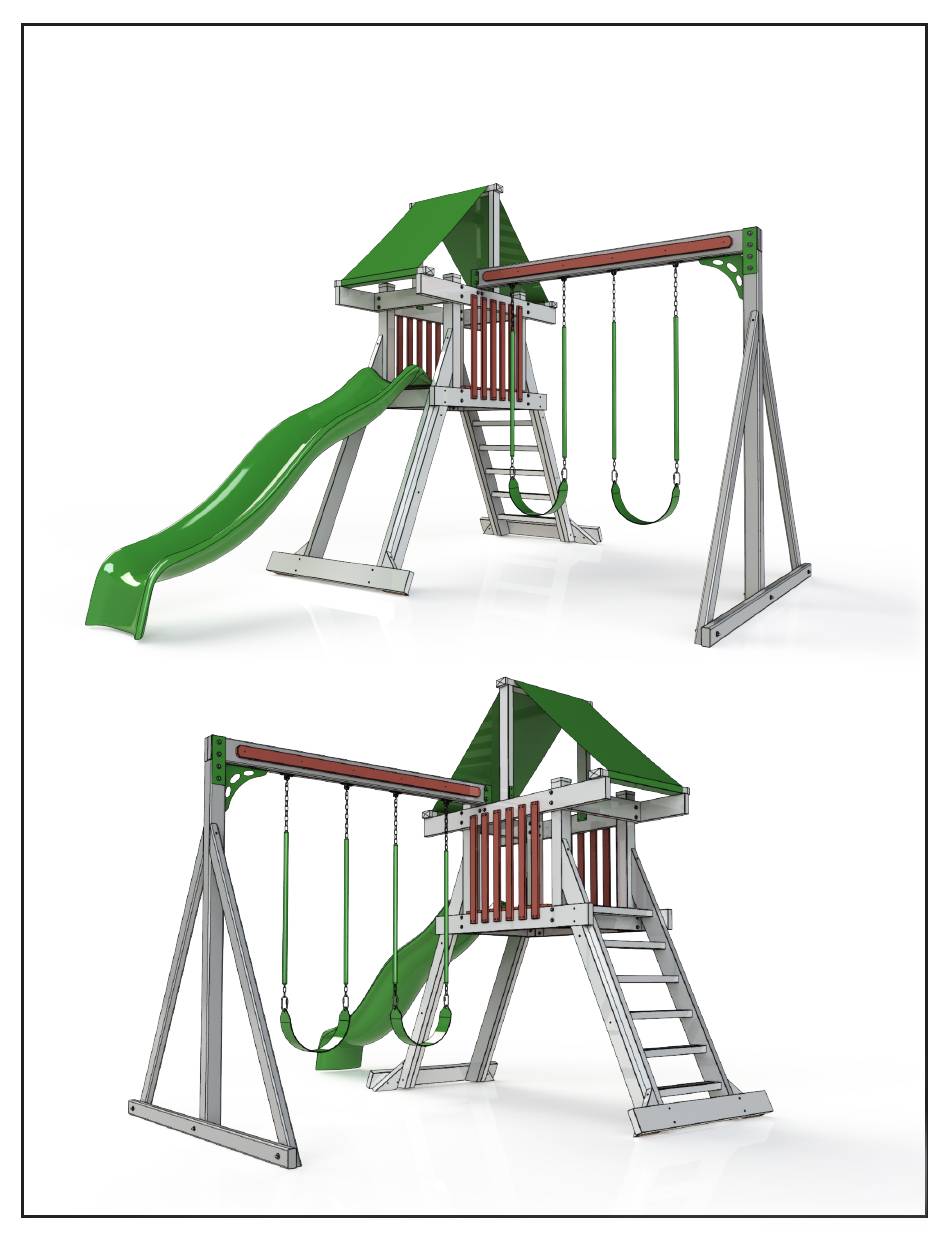

The vinyl construction keeps this playset low in mainte-nance but keeps the fun factor high! The Pluto Vinyl Playset will enhance the appearance of your backyard, while also making it a one-stop-shop for having fun and making memories! - Page 3 Hardware 3/8 x 6 7/8” Threaded Rod 3/8 x 6 1/8” Threaded Rod 3/8 x 4 7/8” Threaded Rod 3/8 x 2 3/4” Threaded Rod 3/8 x 4” Hex Head Lag 5/16 x 3 1/2” Hex Head Lag 1 1/2” Wafer Head Lag 1 3/4”...
- Page 4 Step 1. Step 2. Begin the assembly by locating the two 32” 2x6’s with the joist Place two 44” 2x4 joists in the joist hangers and fasten them with hangers attached. 1 3/4” washer head screws. Step 3. Step 4. Place four 42”...
- Page 5 Step 5. Step 6. Fasten everything together using 6 7/8” threaded rods, 3/8” washers Place the floorboards in place. There is one narrow board for the and acorn nuts. center and two shorter boards for each end. Step 7. Step 8. Fasten the floorboards using 1 1/2”...
- Page 6 Step 9. Step 10. Place the 80” 2x6 railings on the outside of the 4x4 posts and Install the slats on each side and fasten them with 1 3/4” washer fasten them with the same threaded rods. head screws. These 2x6’s have a pre-drilled hole at each end, make sure these Use the included spacer to properly position them.
- Page 7 Step 13. Step 14. Lay the legs in position at each end of the tower. Lift one end of the tower up and place one of the legs under it. Step 15. Step 16. Fasten the leg with 3 1/2” hex head lags in the pre-drilled holes. Repeat steps 14-15 to finish the other leg.
- Page 8 Step 17. Step 18. Locate these pieces to assemble the roof. Attach the 2x4 brackets to the 34 1/2” 2x4’s. Keep the side tabs even with the end of the 2x4 and attach it with 1 3/4” washer head screws. Step 19.
- Page 9 Step 21. Finished Tarp Roof. Unroll the tarp roof and place it in position over the center 2x4. Fasten one 2x4 first using 3 1/2” hex head lags into the 2x6 railing then stretch the tarp out with the second 2x4 and fasten it. Swing Frame Assembly Step 1.
- Page 10 Step 2. Step 3. Fasten the swing bearings to the swing beam using the included Locate the swing beam bracket and place it on the end of the lags. swing beam. Fasten the bracket with 4 7/8” threaded rods. Step 4. Step 5.
- Page 11 Step 7. Step 6. Place the corner bracket on the inside of the post and fasten it Lift the swing beam up into place on the tower. with 1 3/4” washer head screws. Note: The 4x4 end post may need to be shortened depending on the ground.
- Page 12 Step 10. Step 11. Place the 93” 2x4 in position on the ground then drill a 7/16” hole Place the two 2x4 braces on either side of the 4x4 post then through the 4x4 post. fasten the ends with 4 1/8” threaded rods. Fasten the 2x4 with a 6 1/2”...
- Page 13 Wonder Wave Slide Wonder Wave Slide Place the slide in the empty spot on the tower. Fasten the the slide using three 1 1/2” wafer head lags. Make sure the lags go into the 2x6 and not just the floorboards. Playset Stakes Playset Stakes The playset comes with a bundle of stakes and hardware...
