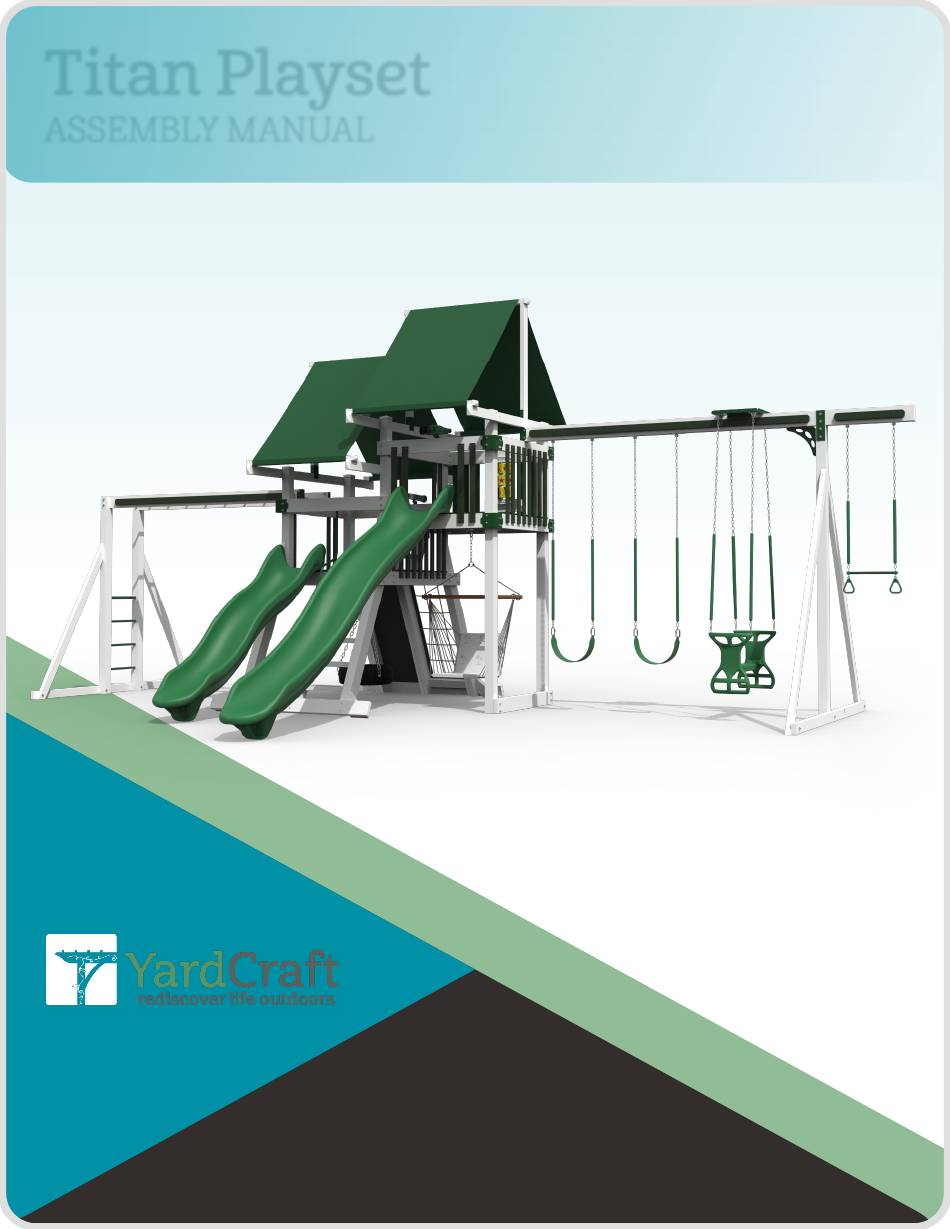

- Page 1 Titan Playset ASSEMBLY MANUAL 866-210-9273 YARDCRAFT.COM 271 S Shirk Road New Holland PA 17557...
-
Page 2: Tools Required
Race to the edge of Saturn on YardCraft’s Titan Vinyl Playset! With two slides, a rock climbing wall, monkey bars, and swings for up to seven kids, you’ll be the hit of the entire neighborhood! There’s an even a hammock swing for you to relax while the children play! The vinyl construction keeps this playset low in maintenance but keeps the fun factor high. -
Page 3: Parts List
Parts List Lower Tower Part No. Type Quantity 54" 4x4 Post 73 1/2" 2x6 56" 2x6 81 1/4" 2x6 Legs 79 1/2" 2x6 66 1/4" 2x6 15 1/2" 2x6 Brace 56" 2x4 Joists Floorboards 33 1/2" Poly Slats Upper Tower 128"... - Page 4 Step 1. Step 2. Begin the 5ft platform assembly by locating the two 56” 2x6’s (1C) Thread eight 6 3/8” threaded rods (6C) into the 56” 2x6’s. with the joist hangers attached. Place them as shown with the Turn them in by hand until they are flush with the t-nuts. joist hangers facing in.
- Page 5 Step 5. Step 6. Fasten the posts to the side 2x6’s using 6 7/8” threaded rods, Install three 56” 2x4 floor joists (1H) in the joist hangers. washers and acorn nuts. At this point you can go around and tighten all the nuts. Step 7.
- Page 6 Step 9. Step 10. Lay the floorboards (1I) into position. Center the floorboards and fasten them with 1 1/2” vinyl screws. Notice the narrow one in the center and the two short ones on (6G) either side. Step 11. Step 12. After the floor is finished assemble the railing section using three Fasten the top and bottom of each 2x6 corner bracket with 1 3/4”...
- Page 7 Step 13. Step 14. The next step is to fasten four poly slats (1J) to the 56” 2x6 to Prepare to assemble the legs by locating these pieces. complete the railings. There are two 81 1/4” 2x6’s (1D) for the sides and and one 79 1/2” Use the included template to align the slats then fasten them with 2x6 (1E) for the bottom.
- Page 8 Step 18. Step 17. Repeat steps 15-17 to assemble the opposite leg. Lift one side of the tower up and place one of the legs into place. Step 20. Step 19. Use a 4” lag in the predrilled hole on the end of the 2x6 leg to finish Fasten the legs using four 4”...
- Page 9 Step 21. Step 22. Repeat steps 18-20 to finish the legs. Locate the cargo net, rock wall and ladder panels and prepare to install them. (4D) (4E) (4A) These are all interchangeable with each other and can be arranged however you like. There will be a empty spot next to one of the panels for the slide.
- Page 10 Step 25. Step 26. Fasten all the panels to the tower using 3 1/2” lags through the side Also fasten the two panels together using the same lags through 2x6’s into the tower legs. the two center 2x6’s. Step 27. Step 28.
- Page 11 Step 29. Step 30. Follow steps 25, 27 and 28 to fasten the ladder panel. Locate the 66 1/4” 2x6 with the floorboard attached. This is to fill the empty spot where the slide will go later. Attach it to the tower leg using three 3 1/2” lags. Step 31.
- Page 12 Step 33. Step 34. Fasten the 23 1/2” poly slats (1Q) to the 56” 2x6 using 1 3/4” washer Locate two 56” 2x6’s with joist hangers and attach them to head screws. the 74” 4x4’s. These have a vinyl cap on one end, this end gets Use the slat spacer to position them.
- Page 13 Step 37. Step 38. Install the 2x6 corner brackets and fasten the rods using acorn Locate the 56” 2x6 with vinyl caps on both ends and fasten it to nuts and washers. the bottom of the 128” 4x4 posts. Fasten the top and bottom of the brackets using 1 3/4” washer Use 6 7/8”...
- Page 14 Step 41. Step 42. Place the floor boards (1O) in place and fasten them using 1 1/2” Install three 56” 2x6’s on the 4x4 posts for the railing. vinyl screws. Two of these have a vinyl end cap. Install them with the end caps Just like the 5ft deck, these have two short boards for the outside facing the 5ft platform.
- Page 15 Step 45. Step 46. Install four 33 1/2” slats on the side of the platform that you want Fill the other sides in with slats using the spacer to position them. the 14’ avalanche slide to be on. Fasten with the 1 3/4” washer head screws. Swing Frame Assembly Step 47.
- Page 16 Step 2. Step 1. Fasten the swing bearings (3H) to the swing beam using the lags Start the swing frame assembly with the 2x6 swing beam. (3A) provided with the bearings. These holes should all be pre-drilled. Step 4. Step 3. Pre-drill four 1/2”...
- Page 17 Step 5. Step 6. Attach the swing beam bracket (3G) to the end of the beam Fasten the side tabs of the bracket using 1 3/4” washer head without the end caps. screws. Use two 4 7/8” threaded rods with washers and acorn nuts to fasten the bracket.
- Page 18 Step 9. Step 10. Attach the corner bracket (3F) to the swing beam and end post. Lift the swing beam up into place on the tower. Fasten it with 1 3/4” washer head screws. Step 11. Step 12. Fasten the swing beam bracket to the 2x6 using 3” lags after Next pre-drill two 7/16”...
- Page 19 Step 13. Step 14. Find the ground runner 2x4 (3C) and fasten it to the end post Place the 2x4 end braces (3D) in place and fasten the bottom ends using a 6 1/2” threaded rod, nut and washer. to the ground 2x4. Use two 4 1/8”...
- Page 20 Climbing Set Assembly Step 17. Install the swings to finish the swing frame assembly. Step 1. Step 2. Locate these parts to begin the climbing set assembly. Install the ladder end brackets (5E) on the end of the top ladder. (5A) Fasten them with 2 5/8”...
- Page 21 Step 3. Step 4. Place the end ladder (5B) in position as shown and fasten it with 4 Flip the climbing set over and place it in position on the 5ft 1/8” threaded rods. platform. Step 5. Step 6. Fasten the side tabs on the end brackets using 3” lags. Next pre-drill two 7/16”...
- Page 22 Step 7. Step 8. Place the ground runner 2x4 (5C) in place and fasten it with two 6 Locate the 2x4 side braces (5D) and install them as shown. 1/8” threaded rods. Fasten the bottom ends to the ground runner 2x4 using 4 1/8” threaded rods.
- Page 23 Tarp Roof Assembly Step 1. Start the tarp roof assembly by locating these pieces. Step 2. Step 3. Install two 104” 2x4’s (2A) on the outside of the 4x4 posts. Locate the three 51” 2x4’s (2C) and fasten the 2x4 roof brackets Keep them centered and up against the vinyl post caps then (2I) to the end.
- Page 24 Step 4. Step 5. Place the 51” 2x4’s in the center of the 104” 2x4’s with the Fasten the brackets with 1 3/4” washer head screws. brackets facing in. Step 6. Step 7. Place a 61” 2x4 (2B) on top of the 51” 2x4’s and fasten it with two Locate the upper tarp roof (2G) and prepare to install it.
- Page 25 Step 8. Step 9. Place the 2x4 support bracket (2J) on the 74” 4x4 post on the Place a 28” 2x4 (2D) in the bracket and fasten it with 1 3/4” washer lower platform. head screws. Measure 46” inches up from the floorboards to the inside of the bracket to position it correctly then fasten it with 1 3/4”...
- Page 26 Step 12. Step 13. Place the 51” 2x4 with a roof bracket on the 104” 2x4 and fasten it Place the 52 3/4” 2x4 (2F) on top of the 51” 2x4 and fasten it with a with 1 3/4” washer head screws. single 3”...
- Page 27 Accessories 2ft Ladder (4B) Place the ladder in position on the 5ft platform and fasten it into the 2x6 using 1 1/2” vinyl screws. You can also fasten it up through the floorboards using the same screws for added stability. Ladder Handrail (4C) 10ft Avalanche Slide &...
- Page 28 10ft Avalanche Slide & 14ft Avalanche Slide (4F) (4G) Tire Swing (4K) Fasten the slides using 1 1/2”” lags. Place the tire swing mounting bracket on the center 2x4 floor joist Make sure the lags go into the 2x6 below and not just through the on the 5ft platform.
- Page 29 Hammock Swing (4L) Tic Tac Toe Panel (4H) Attach the hammock swing using the included chains. The tic tac toe panel comes with a 18 1/2” 2x6. Fasten one end of the panel to the 2x6 using four 1 3/4” washer head screws.
- Page 30 Binoculars (4J) Binoculars (4J) The binoculars comes with a mounting base, a bolt and a lag. Use the lag to mount the binocular base to the 2x6 railing. Binoculars (4J) Telescope (4I) Attach the binoculars to the base using the bolt. The telescope comes with a mounting base, a bolt and a lag.
- Page 31 Telescope (4I) Telescope (4I) Use the lag to mount the telescope base to the 2x6 railing. Attach the telescope to the base using the bolt.
