Summary of Contents for YardCraft Backyard Cliff Climb

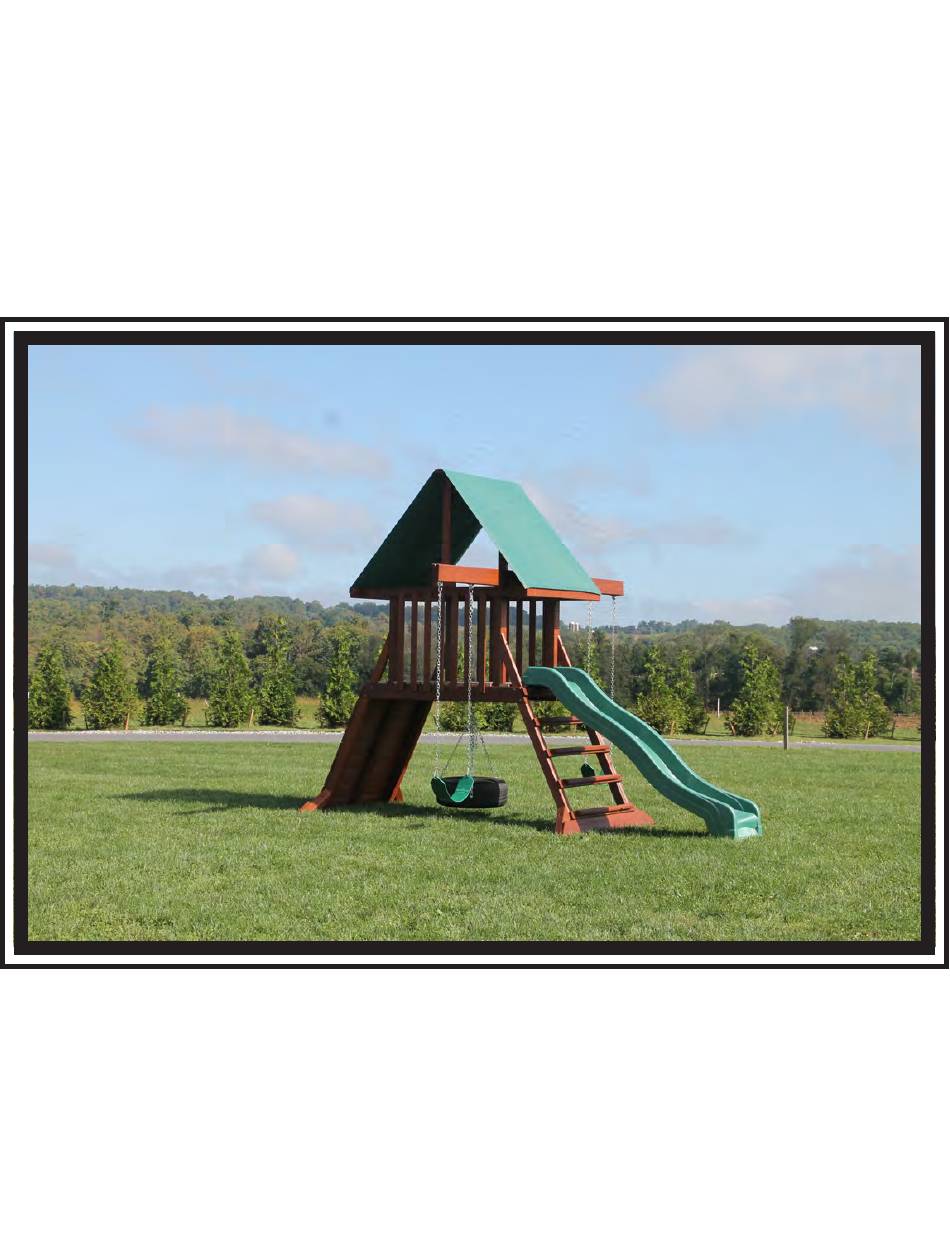

- Page 1 Backyard Cliff Climb Assembly Manual...
- Page 2 Backyard Cliff Climb Assembly Manual Thank you for your purchase of this hideout. This manual is designed to simplify the assembly process, however we recommend having an experienced carpenter involved in the project. Please read through the entire manual before starting! Take a deep breath and get at it;...
-
Page 3: Parts List
Parts List Ladder Leg Frame 2- 2x4x37" Rock wall Leg Frame 2 Side Frames Floor Deck Slide 2 Swings Hardware Roof Cover Packs 1 Tire Swing Cover Frame 2- 2x4x48" 2 Feet for Leg Frame Swing Beam Tire Swivel... - Page 4 Backyard Cliff Climb Assembly Manual Step:1 Step:2 Your package will look like this at the Identify all the parts needed to assemble the beginning. playset. Step:3 Step:4 Identify 4x4 where swing beam attaches. Place one side frame on level ground (2x6 with angles on both ends is part of the floor).
- Page 5 Backyard Cliff Climb Assembly Manual Step:8 Step:7 Position floor deck on side panel. Bottom of Fasten floor deck to 4x4 using two 5/16x 2.5" lag decking should be resting on top side of angled screws. Be sure decking is pulled down against 2x6.
- Page 6 Backyard Cliff Climb Assembly Manual Step:13 Step:14 Your assembly to this point should look Repeat step 11 on opposite side. like this. Step:16 Step:15 Fasten 2x4x48" with four 2.5" screws. Center Repeat step 15 at four corners. holes on 48" 2x4 with the side panel 2x4's.
- Page 7 Backyard Cliff Climb Assembly Manual Step: 20 Step:19 Identify ladder leg frame and one foot for leg Complete fastening foot to rock wall frame. by fastening 4x4 brace to side of leg using 2.5" lag screw. Step:21 Step:22 Attach foot to bottom of leg frame using Complete fastening foot to ladder leg frame by four 2"...
- Page 8 Backyard Cliff Climb Assembly Manual Step:25 Step:26 Continue lifting until you can properly align Complete fastening leg frame to tower using two 2.5" screws in pre-drilled holes on angled 2x6. angled 2x6 on floor assembly with this point on Repeat this step on opposite side.
- Page 9 Backyard Cliff Climb Assembly Manual Step:31 Step:32 Complete fastening rock wall leg frame to Your tower should now look like this. tower using 2.5" lags in pre-drilled holes. Check over complete assembly to be sure that all pre-drilled holes have a fastener in them.
- Page 10 Backyard Cliff Climb Assembly Manual Step:38 Step:37 Finger tighten until four bolts are in. Complete Fasten swing beam to 4x4's using four fastening swing beam to 4x4's by tightening 3/8"x6.5" carriage bolts (bolt head should be all four nuts with wrench.
- Page 11 Backyard Cliff Climb Assembly Manual Step:41 Step:42 Fasten assembled cover frame to tower Place cover frame on tower, centered using pre-drilled holes. Use four 2.5" between 4x4's. screws on each side. Step:44 Step:43 Repeat step 43 on opposite side. You are now ready to attach the cover to the 2x4x48"...
- Page 12 Backyard Cliff Climb Assembly Manual Step:46 Step:45 Attach tire swing to tire swivel using Fasten tire swivel to double 2x4 floor joist pear-shaped quick link. with 3" lags in pre-drilled holes. Step:48 Step:47 Fasten slide on top of floor using 2" screws.
