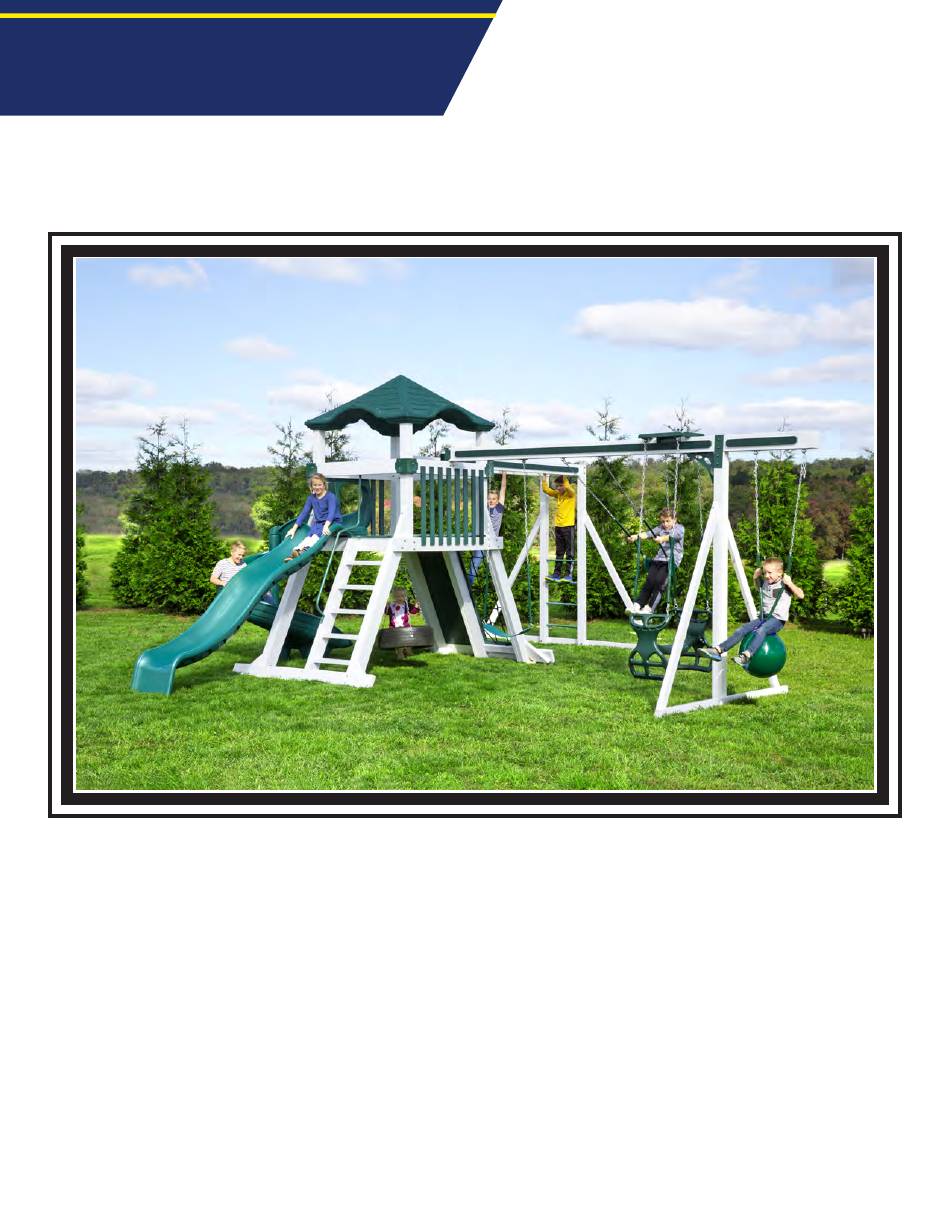

- Page 1 Cydonia Vinyl Playset Assembly Manual...
- Page 2 Cydonia Vinyl Playset Assembly Manual Thank you for your purchase of this playset. This manual is designed to simplify the assembly process, however we recommend having an experienced carpenter involved in the project. Please read through the entire manual before starting! Take a deep breath and get at it;...
-
Page 3: Parts List
Parts List... - Page 4 Cydonia Vinyl Playset Assembly Manual Step 1: Step 2: Unpack and identify parts. Identify and then place two 2x6x 73 1/2" and two 2x6x56" on a smooth, flat surface to begin. Make sure floor joist hangers are turned in. Also notice shims at four corners.
- Page 5 Cydonia Vinyl Playset Assembly Manual Step 5: Step 6: Tighten nuts at this point. Over-tightening acorn nuts Continue fastening 2x6's to 4x4's using 6 7/8" bolts. can cause the head to pop off. Step 7: Step 8: Install three floor joists.
- Page 6 Cydonia Vinyl Playset Assembly Manual Step 9: Step 10: Measure to ensure the floor frame is square before Lay out floor boards. Notice the two shorter ones between posts and narrow one in the center. Make sure continuing. the floor boards are flush with the 2x6.
- Page 7 Cydonia Vinyl Playset Assembly Manual Step 13: Step 14: Fasten slats to tower using pattern provided to find Fasten top and bottom flanges of corner bracket using proper spacing. Be sure you know where any 1 3/4" screws. components you may have purchased will be attached prior to fastening slats.
- Page 8 Cydonia Vinyl Playset Assembly Manual Step 17: Step 18: Fasten brace to 2x6x81 1/2" using 3 1/2" stainless steel Repeat steps 15-17 for second leg. lag screw. Step 20: Step 19: Prepare to fasten leg to tower. Start four 4 3/8" bolts in holes before lifting...
- Page 9 Cydonia Vinyl Playset Assembly Manual Step 21: Step 22: Leg assembly and tower assembly should join together Fasten long point to 4x4 using 4" lag. You may need like this. 4 3/8" bolts that were started in previous step to drill a 1/4" or 5/16" pilot hole in the 4x4.
- Page 10 Cydonia Vinyl Playset Assembly Manual You are now ready to install the cargo net, rock wall, and step ladder panels. These are interchangeable at all locations on the "legs." Decide where you want these positioned prior to fastening. Typically there is one "empty"...
- Page 11 Cydonia Vinyl Playset Assembly Manual Step 26: Step 25: Fasten about halfway up the "leg" as well. These components should now be fastened in place using 3 1/2" stainless steel lag screws. A lag should be put in at this location on both the rockwall and cargo net.
- Page 12 Cydonia Vinyl Playset Assembly Manual Step 30: Step 29: Short pieces of decking should be fastened after Install the step ladder. installing the rockwall and cargo net. Step 31: Step 32: The next step is to install the roof. Assembly instructions for the pyramid roof can be found on page 13.
- Page 13 Pyramid Roof Assembly Instructions Step 2: Step 1: Fasten flat roof bracket to top of post using three 3" Space roof equally at all four corners. screws. Repeat on four posts always with tab towards the center of the tower. Step 3: Step 4: Your completed plastic roof should look like this.
- Page 14 Cydonia Vinyl Playset Assembly Manual Step 42: Step 41: You are now ready to install the tire swing. Attach slide using 1 3/4" washer-head screws. Attach tire swing swivel under the deck using 3" lags. Then attach the tire swing to the swivel.
- Page 15 Swing Frame Assembly Step 1: Step 2: You are now ready to assemble the swing frame. Begin Fasten swing bearings to swing beam using lags by identifying the swing beam. provided in bearing packs. The end of the beam without caps gets fastened to the tower.
- Page 16 Swing Beam Assembly Step 5: Step 6: Rotate the swing beam 180 degrees so that the swing Finish fastening using the 1 3/4" washer head screws bearings are turned up. Fasten the swing beam receiver provided. bracket to the swing beam using two 4 7/8" bolts provided.
-
Page 17: Swing Beam Assembly
Swing Beam Assembly Step 10: Step 9: Fasten corner brace to swing beam and end post. Be Lift swing beam into position. One person should be up in the tower. The other person should continue to hold sure end post is plumb. Attach using six 1 3/4" washer the end post steady. - Page 18 Swing Beam Assembly Step 14: Step 13: Identify ground runner and fasten to end post using Swing beam receiver properly fastened. 6 1/2" bolts. Thread acorn nut onto rod as far as you can, then back off several turns. Be sure to place washer between acorn nut and vinyl.
- Page 19 Swing Beam Assembly Step 17: The next step is to install the climbing set. Instructions for the climbing set assembly can be found on pages 20-22. Your completed swing frame should appear like this.
- Page 20 Climbing Set Assembly Step 2: Step 1: You are now ready to assemble climbing beam. To begin, identify the main components; one top ladder, one ground runner 2x4, and two brace 2x4's, and one One one end, fasten two brackets as shown, using end ladder.
- Page 21 Climbing Set Assembly Step 6: Step 5: Fasten flange on bracket to 2x6 using two 3" lags. Be Pre-drill 7/16" hole through hole on inside flange sure inside flange is tight against inside of 2x6. and through 2x6. Step 8: Step 7: Finish fastening top ladder to tower using two 2 5/8"...
- Page 22 Climbing Set Assembly Step 9: Step 10: Fasten short angle of brace 2x4 to ground runner using Fasten long angle to end ladder using 4" lag. Pre- two 4 1/8" bolts. Tighten immediately. drilling is recommended. Your climbing ladder assembly is now complete. The next step is to install any other components you might have purchased.
- Page 23 Component Assembly Instructions Tic-tac-toe panel: With your tic-tac-toe panel, you will receive a Fasten opposite end to tower at any desired 2x6x18 1/2". Fasten one end of the tic-tac-toe to 2x6, location, using four 1 3/4" washer head screws. centered, using four 1 /3/4" washer head screws. Fasten 2x6x18 1/2"...
- Page 24 Component Assembly Instructions Framing for peek-a-boo panel, tornado tube, tunnel express, and sidewinder slides: Fasten small angle brackets to 2x4x26" using 1 3/4" There should be two like this one pictured when washer head screws. you have completed this step. Fasten with 1 3/4"...
- Page 25 Component Assembly Instructions Tornado tube, Tunnel Express, and Sidewinder slide Assembly: Step 2: Step 1: To fasten the slide to the tower, first fasten L brackets to Then place 2x4's at desired location on tower and outside of two 2x4x26" using 1 3/4" screws provided. fasten using 1 3/4"...
- Page 26 Component Assembly Instructions Super Spiral Slide Assembly: After assembling slide according to instructions given One person hold slide steady while other in the box the slide came in, lift slide into place where person goes up into the tower to fasten slide. you have already framed for the slide to be.
