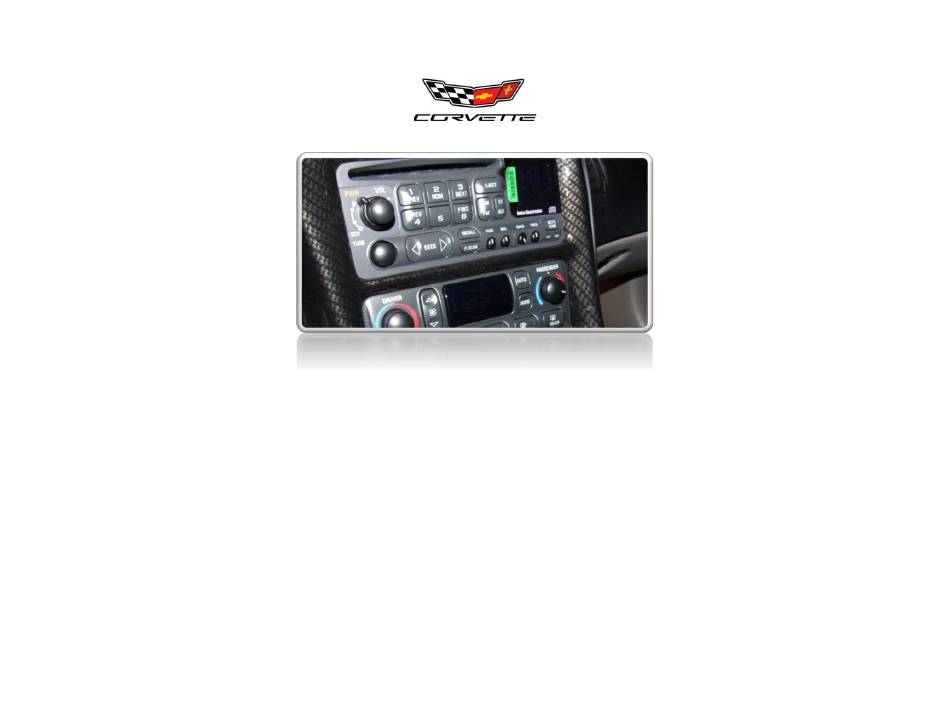

- Page 1 Courtesy of:DiscountCarStereo.com IL-C5 Quick Start Installation Guide for IOS Adapter in 1997-04 Corvette Created January 16, 2013 Revised December 23, 2023...
- Page 2 PRODUCT SAFETY & DISCLAIMER READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING, FAILURE TO DO SO MAY CAUSE Click links below for radio removal videos: Radio removal - PERSONAL INJURY OR DAMAGE TO PRODUCT AND/OR PROPERTY https://www.youtube.com/watch?v=Gcrlufo1ctc https://www.youtube.com/watch?v=WTbWYNJTSDs This installation guide is provided as a GENERAL installation guide, some vehicles vary and ▪...
- Page 3 5. Route Lightning plug (See Fig. 3) to desired mounting location on Installation 2: Connects to 10-pin CD plug in trunk/hatch using the dashboard, glove box, console etc. within 5 ft. of radio. Use caution to PXHGM2 harness not cut, pinch or crimp the cable during this step. Selecting the PXHGM2 allows the module to connect at the 10-pin CD plug (See Fig.
- Page 4 Operation Connect iOS device (iPod, iPhone, iPad) to lightning plug 2. Apple device will begin charging 3. Press CD/AUX or TAPE/AUX button on radio. 4. Select favorite track using IOS device built-in controls or optional Fig. 6 wireless remote control (See next section for details) 10-pin socket Warning! Playlist and Track selection is *NOT* possible from the radio.

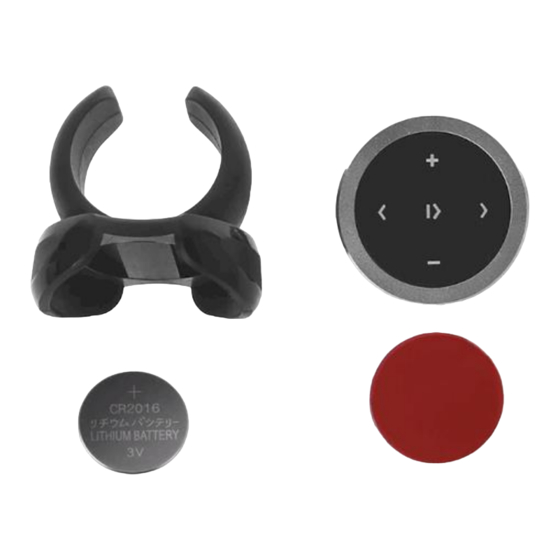

- Page 5 Operation: Optional remote Use smart remote to perform the following functions on any iOS7.0 and higher or Android 4.4 and higher. The C5 radio buttons dol NOT operate iOS device, so instead of fumbling around while steering simply pair this remote and control select phone functions from the remote while also keeping eyes on the road.
- Page 6 Email support@discountcarstereo.com © 1995-Dec-23 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
