U s e r ' s m a n u a l
8000 series IP PTZ cameras

Advertisement

loading
Need help?

Need help?

Do you have a question about the 8000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Novus 8000 Series

Summary of Contents for Novus 8000 Series

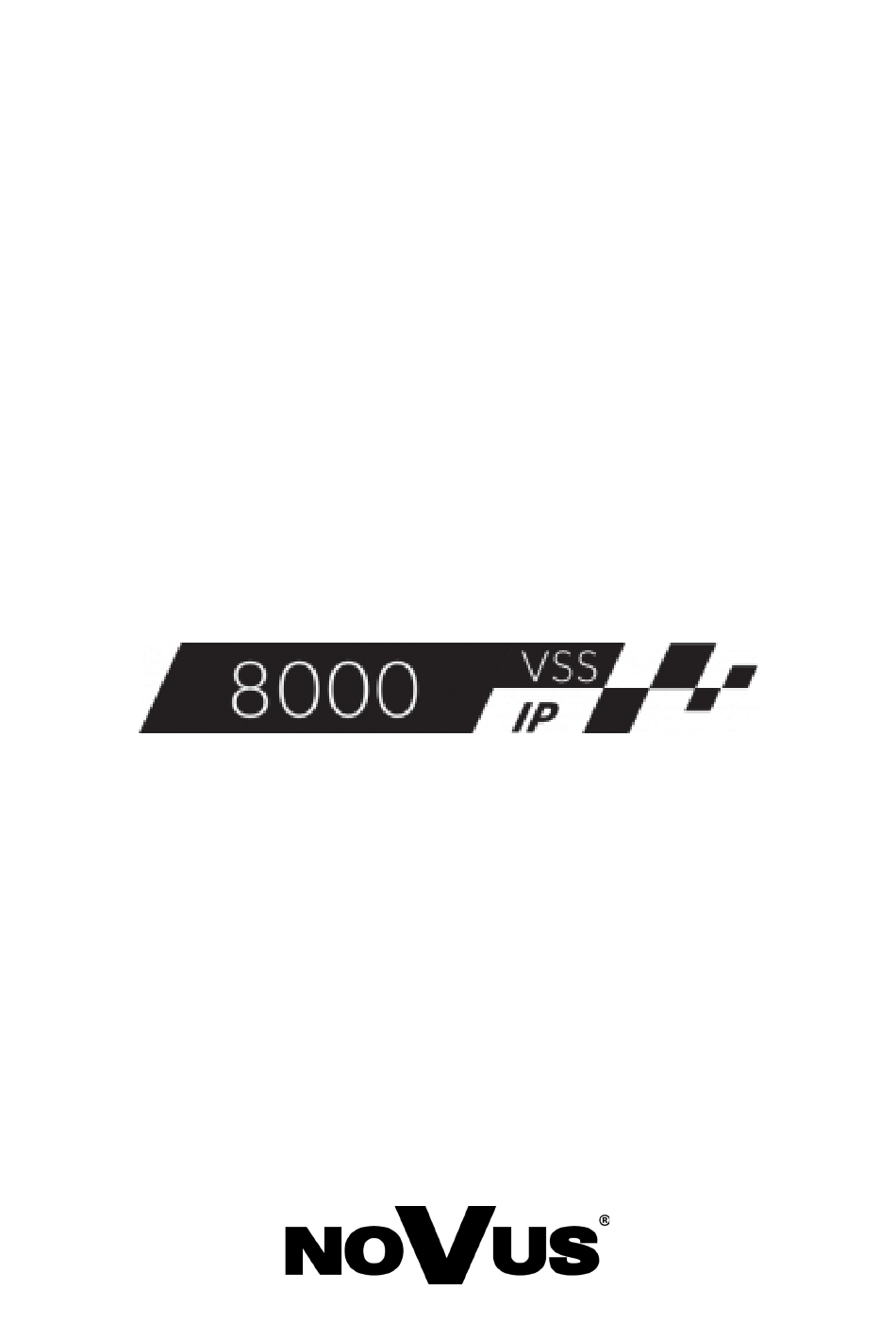

  • Page 1 U s e r ’ s m a n u a l 8000 series IP PTZ cameras...
  • Page 2 8000 series IP PTZ cameras user manual, version 1.0 INTRODUCTION NOTICE: Following user’s manual refers to PTZ control part only. Please read installation manual prior using PTZ camera. After proper ActiveX installation and logging user interface of the camera appears.

  • Page 3: Ptz Panel

    8000 series IP PTZ user manual, version 1.0 PTZ PANEL Zoom-in Zoom-out 2. PTZ Panel Other way of camera control is using PTZ panel where appropriate icons control corresponding camera action and function. Below there is a general appearance of the PTZ panel Further chapters of the manual describe function of each part of the panel.
  • Page 4 8000 series IP PTZ cameras user manual, version 1.0 PTZ PANEL - CAMERA CONTROL 2.1. Camera control On the left side of the panel there are navigation buttons intended for control the camera in real time. After moving the cursor on particular elements of the panel information about their functions appears.
  • Page 5 8000 series IP PTZ user manual, version 1.0 PTZ PANEL - PRESET 2.2 Preset tab The Preset tab allows to add, delete and invoke predefined camera positions. NOTE: The preset tab allows to save up to 400 presets, except these with ID: 64;...
  • Page 6 8000 series IP PTZ cameras user manual, version 1.0 PTZ PANEL - TRACK 2.3 Track tab The Track tab allows to add, delete and invoke predefined tracks along which the camera will move. The program allows to save up to 6 tracks.
  • Page 7 8000 series IP PTZ user manual, version 1.0 PTZ PANEL - SCAN 2.4 Scan tab The Scan tab allows to add, delete and invoke the camera scanning between two points. The program allows to save up to 12 scans. 2.4.1 Adding a scan To define a new scan, select an ID number from the drop-down list in the ID field(1) and assign a scan name in the Name field (2).
  • Page 8 8000 series IP PTZ cameras user manual, version 1.0 PTZ PANEL - TOUR 2.5 Tour tab The Tour tab allows to add, delete and invoke the tour function between predefined presets. The program allows to save up to 12 tours.
  • Page 9 8000 series IP PTZ user manual, version 1.0 PTZ PANEL - IDLE 2.6 Idle tab The Idle tab is used to set the reaction of the camera to the inactivity of the operator. The idle function could be switched on and off by using the on/off button (1). When the idle function is enable, select in the Type field (2) the program function which is activated after the waiting time (4), then select the function name in the Name field (3).
  • Page 10 8000 series IP PTZ cameras user manual, version 1.0 PTZ PANEL - TIMER 2.7 Timer tab The Timer tab is used to set the action schedule of the various functions of the program during the day. To access the schedule, click the button with the gear symbol.
  • Page 11 8000 series IP PTZ user manual, version 1.0 PTZ PANEL - EXTENSION In the Time field (2) the date is in the format YYYY/MM/DD. User can input date manually or indicate it with the cursor. The Clear button is used to delete the values entered in Time field (2).
  • Page 12 AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o. 431 Pulawska St., 02-801 Warsaw, Poland tel.: +4822 546 0 546, kontakt@aat.pl www.novuscctv.com 12.05.2021 DK, MK v.1.0...
