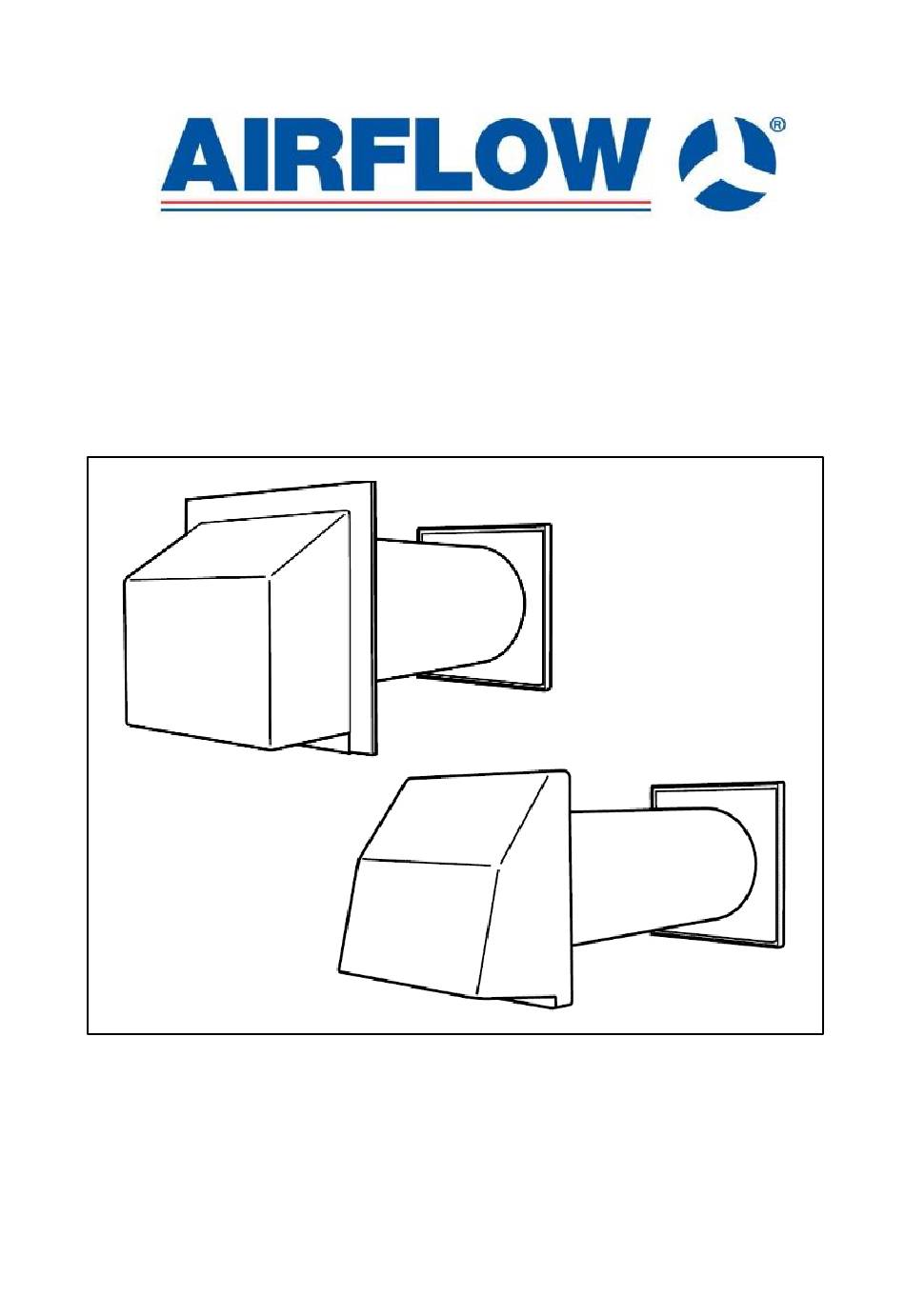

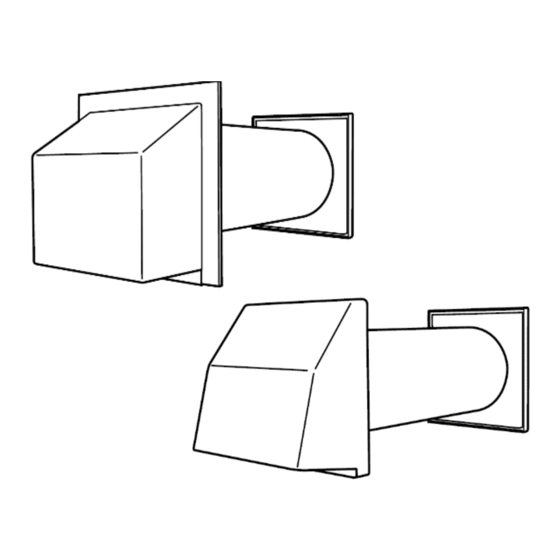

- Page 1 80001286 – Issue 1 01/23 Airflow 100mm & 125mm Wallvent Installation Guide Page 1 of 13...
- Page 2 80001286 – Issue 1 01/23 Contents 100mm Wallvent Fixing External Grille ........5 100mm Wallvent Fixing Internal Grille ........8 125mm Wallvent Fixing External Grille ........9 125mm Wallvent Fixing Internal Grille ........11 Page 2 of 13...
- Page 3 Use a 102mm dia. Core drill for Airflow 100mm Wallvent. Use a 127mm dia. Core drill for Airflow 125mm Wallvent. Fig.1 Measure the wall thickness and cut the duct to length.
- Page 4 80001286 – Issue 1 01/23 NOTE: Airflow 125mm Wallvent duct comes in three detachable pieces. Fig.2 - For Airflow 100mm Wallvent only. To ensure the integrity of the wall, each end of the cut duct between the duct and the wall should be sealed.
-
Page 5: 100Mm Wallvent Fixing External Grille
80001286 – Issue 1 01/23 100mm Wallvent Fixing External Grille The external grille can be fixed to the brickwork using screws in the preformed holes located on the reverse side of the grille. (Fittings not supplied.) Carefully unclip the weather hood from the grille. - Page 6 80001286 – Issue 1 01/23 The preformed holes for fixing the external grille to the brick will be located at each corner of the backplate. Fig.4 Page 6 of 13...
- Page 7 80001286 – Issue 1 01/23 Apply a bead of sealant around the spigot of the external grille. (Sealant not supplied.) Fig.5 Insert the external grille inside the duct from the outside. Before the sealant sets, ensure the grille is flush and level before screw fixing.
-
Page 8: 100Mm Wallvent Fixing Internal Grille
80001286 – Issue 1 01/23 100mm Wallvent Fixing Internal Grille Unclip the louvre panel from the grille backplate by using a flat head screwdriver in the gap shown in Fig.3. The preformed holes for fixing the internal grille to the internal wall will be located at each corner of the backplate –... -
Page 9: 125Mm Wallvent Fixing External Grille
80001286 – Issue 1 01/23 125mm Wallvent Fixing External Grille The external grille can be fixed to the external brickwork using the preformed holes located on the reverse side of the external grille in each corner. Fittings not supplied. Punch-through the holes on the reverse side of the external grille using a suitable tool, avoiding damage to the plastic panel. - Page 10 80001286 – Issue 1 01/23 Apply a bead of sealant around the spigot of the external grille. (Sealant not supplied.) Fig.9 Insert the external grille to the duct from the outside. Before the sealant sets, secure the grille to the wall using the punched holes in each corner, ensuring the grille is flush and level.
-
Page 11: 125Mm Wallvent Fixing Internal Grille
80001286 – Issue 1 01/23 125mm Wallvent Fixing Internal Grille The internal grille can then be mounted using the preformed holes found on grille backplate. Fig.10 Detach the louvre panel from the grille backplate by using a flat head screwdriver in the gap shown below. - Page 12 80001286 – Issue 1 01/23 Fig.11 Apply a bead of sealant around the spigot to secure the internal grille in place. Page 12 of 13...
- Page 13 80001286 – Issue 1 01/23 Fig.12 Insert the internal grille into the duct. Before the sealant sets, fix the grille in place ensuring it is flush and level before screw fixing. Page 13 of 13...
- Page 14 80001286 – Issue 1 01/23 Page 14 of 13...
