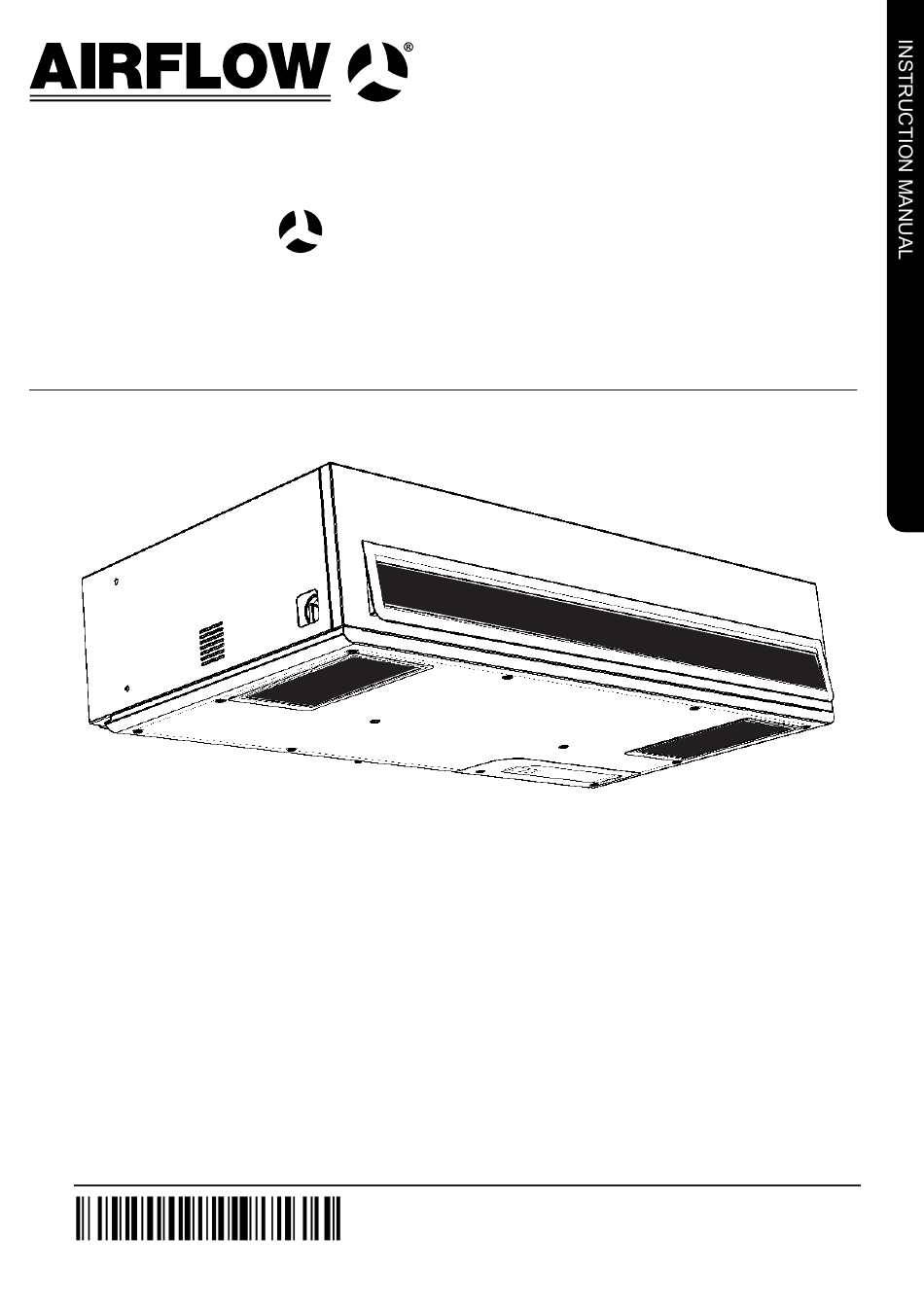

- Page 1 Susurr Instruction Manual Mechanical Ventilation with Heat Recovery Mechanical Ventilation with Heat Recovery 4-118-0314 P02-0346-0419...
-
Page 2: Before Starting
1. BEFORE STARTING BEFORE STARTING The following symbols in the manual serve for better guidance. The following table describes the symbols and their meaning. Symbol Meaning Warning or Caution ATTENTION! PLEASE NOTE! Important instructions YOU WILL NEED Practical tips and information TECHNICAL INFORMATION Detailed technical information Reference to a different part of the... -
Page 3: Unpacking The Unit
All the packing material is environmentally friendly and can be reused or recycled. Please, contribute actively to the protection of the environment and procure the regular disposal or recycling of packing materials. © Airflow - All rights reserved... - Page 4 3. MAIN PART Outlet grill with Straw system Main power switch Outside fresh air duct with spring loaded damper usscheidung Outside exhaust air duct with DX / CO spring loaded damper Operational diagram Funktionsschema Inlet grill with Straw system Condensate drain Fan / Ventilator Heat exchanger /...
-
Page 5: Spare Parts
4. SPARE PARTS The codes of the spare filters and these filters can be found in “Maintenance”, replacing filters © Airflow - All rights reserved... - Page 6 A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] H [mm] I [mm] J [mm] K [mm] L [mm] Susurro 400 1806 1408 1835 Susurro 700 2078 1098 1649 2105 1006 Susurro 1000 2406 1262...
- Page 7 F [mm] G [mm] H [mm] I [mm] J [mm] K [mm] L [mm] M [mm] Susurro 400 1901 1408 1835 Susurro 700 2171 1116 1649 2105 1054 Susurro 1000 2501 1280 1920 2435 1251 © Airflow - All rights reserved...
-
Page 8: Technical Parameters
EPOH WPOH class filter class [kg] [Hz] ePM1 60%(F7) Coarse 60%(G4) Susurro 400 EPRH 1 / 230 / 9,2 / 1840 1 / 230 / 15,8/ 3340 1 / 230 / 9,2 / 1840 Susurro 400-X ePM1 60%(F7) Coarse 60%(G4) - Page 9 200 mm 200 mm 200 mm © Airflow - All rights reserved - The unit is fixed using suspension holders located on both - Das Gerät wird mit Anhängehaltern an beiden Seiten des sidewalls of the unit. Gerätes befestigt - The unit shall be fixed safely to avoid its dropping.
- Page 10 B) Preparing the attachment to the ceiling 2) Drill the holes 1) Measure carefully the position of the holes for the threaded rods (not included) 3) Install threaded rods of the appropriate length Susurro 400 110 mm Susurro 700 168 mm Susurro 1000...
- Page 11 The design version may require to remove the side covers. You will need a no. 3 Allen wrench. Move the cover upwards to remove it. It is secured by auxiliary brackets (see following picture). © Airflow - All rights reserved...
- Page 12 6. INSTALLATION Hang the unit from the rods and secure the holes in the Install protection grilles on the outside of the wall to pre- • • wall appropriately. vent the ingress of water and bigger objects. (not included) Control the fixing •...
- Page 13 Terminals for the power supply (L) and the output of the auxiliary power supply (12V, 24V) Terminals to connect N and PE cables Auxiliary power supply (12V, 24V) Engine fuse Main power switch Safety Contactor (units with electric heater) © Airflow - All rights reserved...
-
Page 14: Connecting The Condensate Drain
6. INSTALLATION CONNECTING THE CONDENSATE DRAIN Sink (SK-AKS3) (non included) PLEASE NOTE! The sink must be well connected to the unit • and sealed. We recommend to submerge the sink in water check its in- • tegrity. ATTENTION! If the sink is not well connected, the unit may be flooded and dam- aged. -
Page 15: Electric Installation And Wiring
= Phase • av = Air output • I = Total current • P = Output Serial number • m = weight • IP = IP cover • ver = designation for pro- ducer © Airflow - All rights reserved... - Page 16 72 71 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 70 69 J1/J2 59 58 57 56 55 54 53 52 51 PRESENCE COOL/HEAT IN GND ERROR DEFROST EXTERNAL REC ERR FIRE BOOST 15VAC...
-
Page 17: Initial Commissioning
Activate boost mode Ventilation rate settings Required temperature settings Detailed information on ventilation status Unit’s settings (Service menu) Back Information on Password lock Unit's time switch the type of unit © Airflow - All rights reserved... -
Page 18: Unit Settings
UNIT SETTINGS Weekly mode Display settings Language settings Date and time Ventilation rate settings Required temperature settings Touch a day to set ventilation modes Unit's service settings Back Ventilation rate settings Display required air flow Reduce or increase the Display current unit's air flow air flow Touch to set ventilation time modes... -
Page 19: Nfc Settings
In the NFC menu you can display the informa- tion after placing an NFC compatible mobile device. TIME AND DATE SETTINGS 23 - User lock 50 - Factory reset Access selected menu 06 - Filter timer Scroll to select menu © Airflow - All rights reserved... - Page 20 MENU 01 - MODE MENU 06 - FILTER TIMER 23 - User lock 50 - Factory reset 06 - Filter timer 03 - Filter timer 04 - AQS Sensor 05 - Temperature sensor Ventilation ac- Manual ventila- cording to the tion mode requirements Status to notify...
- Page 21 MENU 11 - BYPASS TEMPERATURE 09 - Temperature sensor 10 - Supply Duct Limits 11 - Bypass Temperature 12 - Flow Offset 13 - Fire Flow Setting the minimum temperature that allows to open the bypass (0-20°C) © Airflow - All rights reserved...
- Page 22 MENU 12 - FLOW OFFSET MENU 14 - OCCUPANCY The FIRE FLOW and OCCUPANCY modes can not be used simultaneously 10 - Supply Duct Limits 11 - Bypass Temperature 12 - Flow Offset 13 - Fire Flow 14 - Occupancy 12 - Flow Offset 13 - Fire Flow 14 - Occupancy...
- Page 23 18 - HW test 20 - Modbus RTU 21 - Network 23 - User lock Set control features. If the control is unsteady or variable, this con- figuration can be done only after consulting the manufacturer. © Airflow - All rights reserved...
- Page 24 MENU 23 - USER LOCK 20 - Modbus RTU 21 - Network 23 - User lock 50 - Factory reset 01 - Mode The MODBUS menu is used to set the Modbus communication. MENU 21 - NETWORK 18 - HW test 20 - Modbus RTU 21 - Network 23 - User lock...
-
Page 25: Maintenance
CAUTION! The service of internal components and the cleaning of the unit must be done only by a professional. It is forbidden to operate the unit without filters. It may damage the unit. © Airflow - All rights reserved... -
Page 26: Error Messages
8. MAINTENANCE Clean the unit with a vacuum cleaner, a small brush, cloth and soapy water, especially the exchanger. Do not use the follow- ing product to clean the unit: Sharp objects, corrosive chemi- cals, solvents, abrasive cleaners, pressurized water, pressur- ized air or steam. - Page 27 The following picture shows the location of the filters in the unit and the table lists the appropriate types of spare filters. There are 2 type 1 filters and it will be therefore necessary to order 2. © Airflow - All rights reserved...
-
Page 28: Troubleshooting
9. TROUBLESHOOTING The unit error is indicated with a red exclamation mark in the middle of the control display. Pressing the exclamation mark shows the information on the error, see table below. Reports on the display Unit's behavior Likely problem SOLUTION Check that the air is flowing freely through the unit, that the 1 –... - Page 29 The thermostat can be returned to the ON state pressing a button. • Återställningen av den elektriska återuppvärmningen finns här: • The reset of the electric reheating is located here: • The reset of the electric preheating is located here: © Airflow - All rights reserved...
- Page 30 Disassembling the engine Release the bracket from the set – square bit no. 2 Release the engine from the bracket – Allen bit no. 4 Printed circuit Open boards with a flat screwdriver Removing the boards from the plastic frame – pliers for precision mechanics Releasing the printed circuit –...
- Page 31 Certificate No. EMS 569454 Certificate No. FM 00152 are accepted subject to our conditions of sale BS EN 1SO 14001 : 2015 BS EN 1SO 9001 : 2015 United Kingdom, HP12 3QP which are available on request © Airflow - All rights reserved...
