Protech Systems SP-7256 Quick Reference Manual

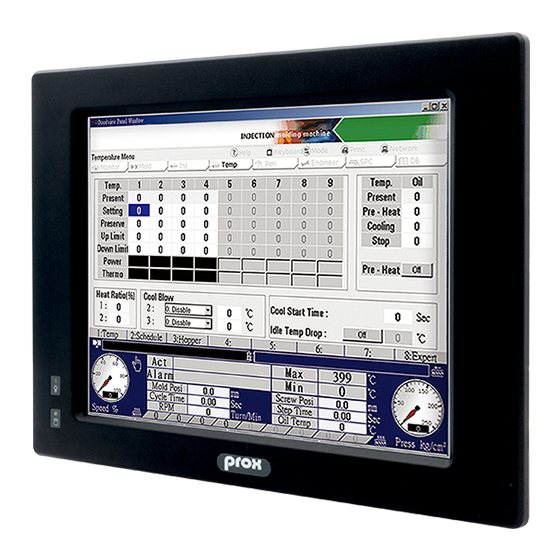

SP-7256
Quick
Reference
Guide
Specifications
System
CPU Support Intel Celeron N3350 processor on board
®
Memory Support 1 x SO-DIMM socket supporting 1600/1867MHz DDR3L
memory up to 8G (non-ECC)
OS Support Windows 10 64-bit, Ubuntu 16.04
Drive Bay 1 x 2.5" SATA HDD drive bay
Power Supply DC-in 9V~36V
Power Adapter 24V, 60W
System Weight 3.2 kg
Dimension (WxHxD) 391mm x 250mm x 48mm
Certificate FCC/CE/CB/UL
I/O Ports
Serial Port 1 port support (COM1 for RS232)
USB 4 x USB 3.0
1 x USB 2.0 on side bezel
Display Port 1 x DP
LAN 2 x LAN
(Controller: 2 x Intel I210-IT (MAC+PHY, PCIe interface))
Supports Wake-On-LAN
Audio 1 x Line-out, 1 x MIC-in
Digital I/O 4 in / 4 out
DC-IN 1 x 4-pin DC power jack
Power On/Off 1 x Power On/Off button on side bezel, 1 x Remote Switch
Display
LCD Panel Size 15.6" WXGA (resolution: 1366 x 768)
Touchscreen Projected capacitive touch screen
Environment
Operating Temp. 0°C ~ 40°C (32°F ~ 104°F)
Storage Temp. -20°C ~ 80°C (-4°F ~ 176°F)
Humidity 20% ~ 90%
Ver. Q3
All Rights Reserved. Copyright 2017
SP-7256
Packing Checklist
If you discover any item below is damaged or lost,
please contact your vendor immediately.
SP-7256
This Quick Reference Guide
Driver DVD

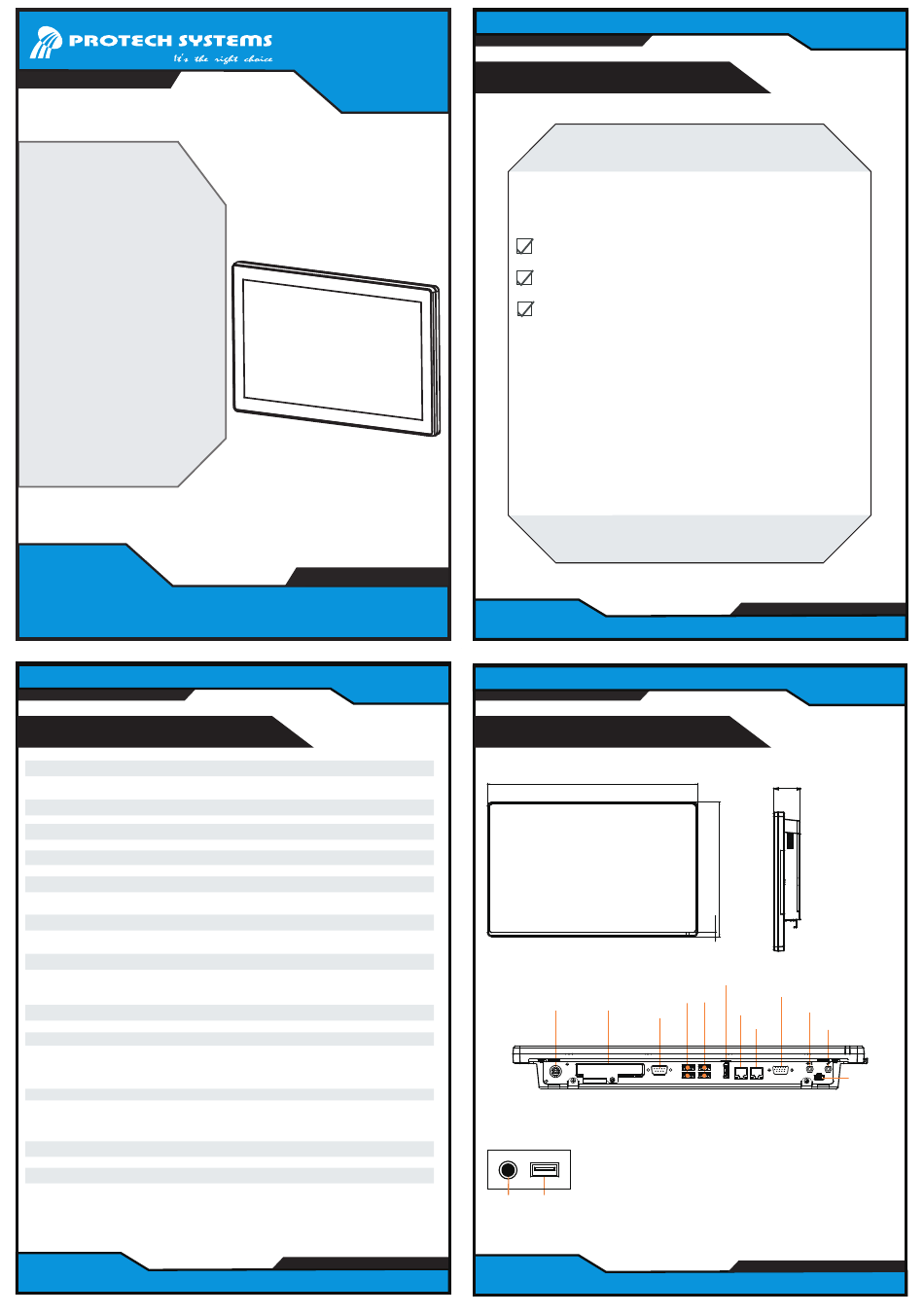

System View
FRONT VIEW
391
REAR I/O
DC-IN HDD
COM1
COM
DC-IN HDD
SIDE I/O
Power USB 2.0
Button
SP-7256
x1
x1
x1
SP-7256
SIDE VIEW
48
250
7.8
DP
DIO
USB 3.0
Line-out
LAN1
LAN2
MIC-in
Remote
DP LAN1 LAN2 DIO
USB USB
Remote SW
Switch
Unit: mm
