Protech Systems SP-7117 Quick Reference Manual

SP-7117
Quick
Reference
Guide
Specifications
System
CPU Support Intel ® D2550 (1.86 GHz, 1M cache)
Chipset Intel ® NM10
OS support Windows 7
Memory Support 1 x DDR3 SO-DIMM Socket (up to 4GB, 1067 MHz)
Drive Bay 1 x 2.5" SATA HDD
Power Requirement DC-in 9~36V
Mounting Type VESA 75/100
IP65 For front panel only
System Weight 5.95 kg
Dimension (WxHxD) 410.7 x 374.6 x 62 mm (16.16" x 14.75" x 2.44")
Certificate CE/FCC
I/O Ports
Serial Port 3 ports, RI/5V/12V selectable.
(COM1: RS-232 only; COM2/3: RS-232/422/485)
USB 4 x USB 2.0
LAN 2 x LAN (RJ-45 10/100/1000 Mbps)
DVI 1 x DVI-I
Audio 1 x Line-out; 1 x MIC
Expansion Slot 1 x CFast slot, 1 x Mini-PCIe slot
Display
LCD 17" TFT LCD (LED)
Resolution 1280 x 1024
Touchscreen 5-wire bezel-free resistive or projected-capacitive
Environment
Operating Temp. HDD: 0 ~ 45°C (32 ~ 113°F)
CFast card: 0 ~ 55°C (32 ~ 131°F)
Storage Temp. -20 ~ 60°C (-4 ~ 140°F)
Humidity Operating: 20 ~ 90% ; Stoarage: 20~95%
Ver. Q1
All Rights Reserved. Copyright 2013
SP-7117
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor.
SP-7117
Driver/Manual CD
This Quick Reference Guide
Mini Jumper (2 mm)

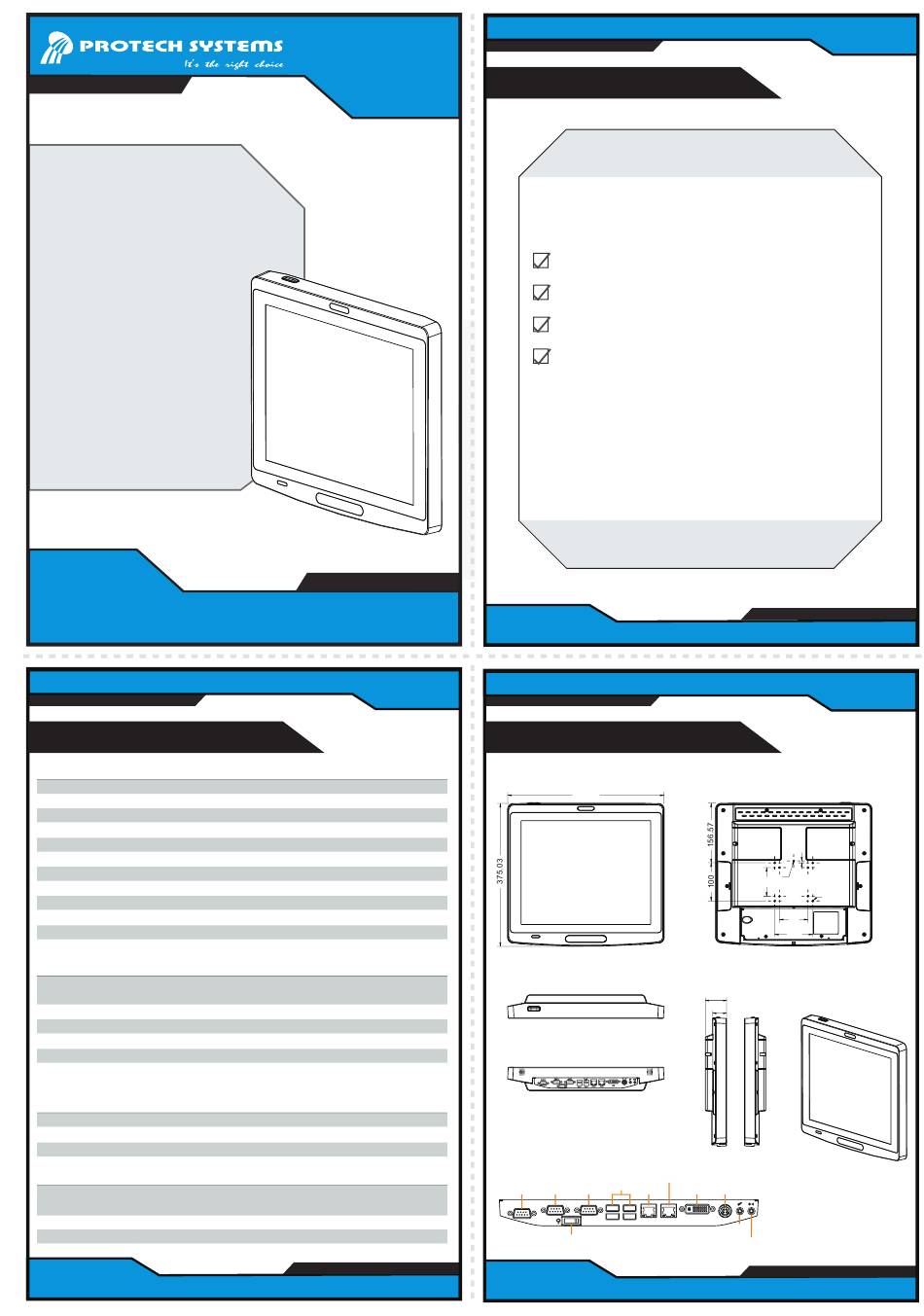

System View
Front View
410.7
Top View
Rear View
I/O View
LAN1
USB
COM3 COM2 COM1 LAN2
Power switch
SP-7117
x 1
x 1
x 1
x 8
SP-7117
Rear View
5
M3
75
M4 (x8)
75
100
Side View Quarter View
62
40.5
DVI DC IN
MIC
Line-out
