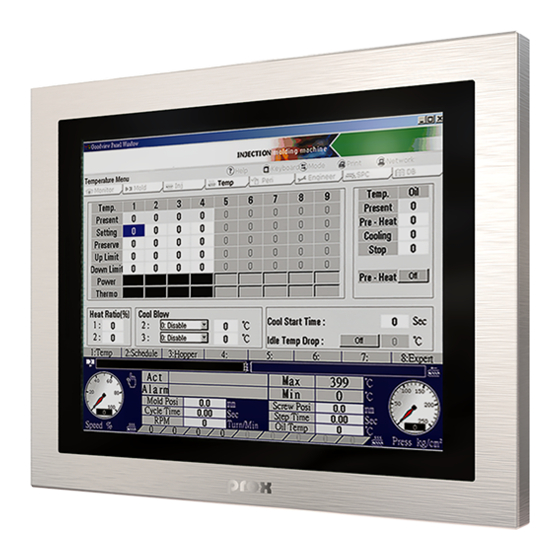

Protech Systems SG-S156 Quick Reference Manual

SG-S156/
SG-S176/
SG-S216
Quick
Reference
Guide
Jumper Setting
5 4
8 1
SG-S156
1024x768 Channel S/8bit
Pins 1, 8: ON Pins 2, 7: OFF
Pins 3, 6: ON Pins 4, 5: ON
SG-S176
1280x1024Channel D/8bit
Pins 1, 8: ON Pins 2, 7: OFF
Pins 3, 6: OFF Pins 4, 5: ON
SG-S216
1920x1080 Channel D/8bit
Pins 1, 8: ON Pins 2, 7: OFF
Pins 3, 6: OFF Pins 4, 5: OFF
CAUTION!
Danger of explosion may occur if the battery is replaced incorrectly. Replace batteries only with the same or equivalent type recommended by the manufacturer. Dispose the
used batteries according to the manufacturer's instructions.
The waterproof capability of the device may be incapable when the screws are loosened.
The O-ring to seal the device may be damaged during the maintenance process. Qualified engineer is recommended to make the O-ring replacement to keep the waterproof
capability of the device.
All Rights Reserved. Copyright 2020
JP_COM2 Port RI & Voltage
Selection
6 5 6 5 6 5
2 2 1 2 2 1 2 1
12V
RI 5V
(default)
LAN2
J1(DP+HDMI)
2 10
1 9
AUDIO1
SPK_R_OUT1
1
SPK_L_OUT1
1
COM2
20 19
1 6
9
5
1 6
6 5
9
5
1 2
2 1
COM1
JDIO1
JP_COM2
1 3
ATX1
1
2 4
CPU_FAN1
Specifications
System
CPU Type
Memory Support
Operating System
Enclosure
IP Rating
Power Input
Watchdog
Mounting Support
System Weight
Dimensions (WxHxD)
Certificate
I/O Ports
Power Input
Serial Port
LAN
USB
Storage
Expansion Slot
Display
LCD
Touchscreen
Environment
Operating Temperature HDD: 0°C~40°C (32°F~104°F) / SSD: 0°C ~ 50°C (32°F ~122°F)
(with airflow)
Storage Temperature
Ver. Q2
Humidity
LAN1 USB1 USB2
M_SATA1
1 2
7
8
JP7
JFP1 JUSB1
9 1
9
DIMM1
2 10
SG-S156/SG-S176/SG-S216
Intel 7th Gen. Core TM i5-7300U Processor
®
Intel Pentium 4415U Processor
®
1 x DDR4 2133MHz SO-DIMM socket (up to 16GB)
Windows 10 IoT LTSC 2019
®
Ubuntu16.04 LTS
Stainless SUS304/SUS316
IP66/IP69K
DC In 12V/24V
1~255 second Watchdog timer selectable
Wall Mount / VESA 100 / Table Stand
SG-S156: 7.5kg / SG-S176: 8.5kg / SG-S216: 9.5kg
SG-S156: 420 x 335 x 70mm / SG-S176: 450 x 381 x 70mm
SG-S216: 590 x 395 x 70mm
FCC / CE
1 x M12 Waterproof Connector with Remote Switch
Supports 12V/24V DC
1 x COM port with M12 waterproof connector
COM 1 for RS-232/422/485 selectable under BIOS
2 x GbE LANs with M12 waterproof connectors
Supports Wake-On-LAN
2 x USB 2.0 with M12 waterproof connectors
1 x 2.5" SATA III HDD or SSD
1 x full-sized Mini PCIe slot (Mini PCIe and USB signals)
SG-S156: 15" TFT LCD(LED) XGA (1024 x 768), 450 nits
SG-S176: 17" TFT LCD(LED) XGA (1280 x 1024), 350 nits
SG-S216: 21.5" TFT LCD(LED) XGA (1920 x 1080), 350 nits
Projected capacitive or 5-wire resistive touchscreen (USB I/F)
-20°C ~ 80°C (-4°F ~ 176°F)
20%~ 90%
SG-S156/SG-S176/SG-S216
JP9 V3P3 MPCIE Setting
1 1
VCC3_3 (default) V3P3A
USB3
1
JBAT1
Normal
1
(default)
1
JCMOS1 1
JP5 LVDS VCC Selection
M_PCIE1
(default for
SG-S156)
SATA1
JHDD_PWR1
1
5 4
1
JP5
8 1
1
SW1
29 30
1
1
JLVDS1
JP6
1
1
1 2
1
Disable
1
JP1 (default)
8 2
1
Clear CMOS
1
1
3.3V 5V
(default for
SG-S176 &
SG-S216)
1
1
3.3V (default)
5V
1
Enable
