Summary of Contents for Masterbuilt AutoIgnite 545 Series

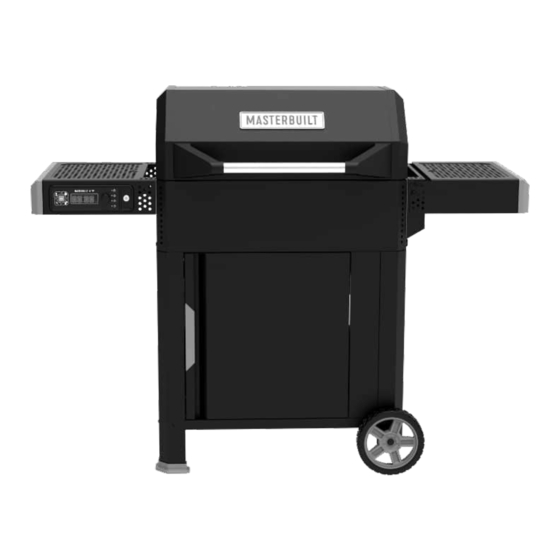

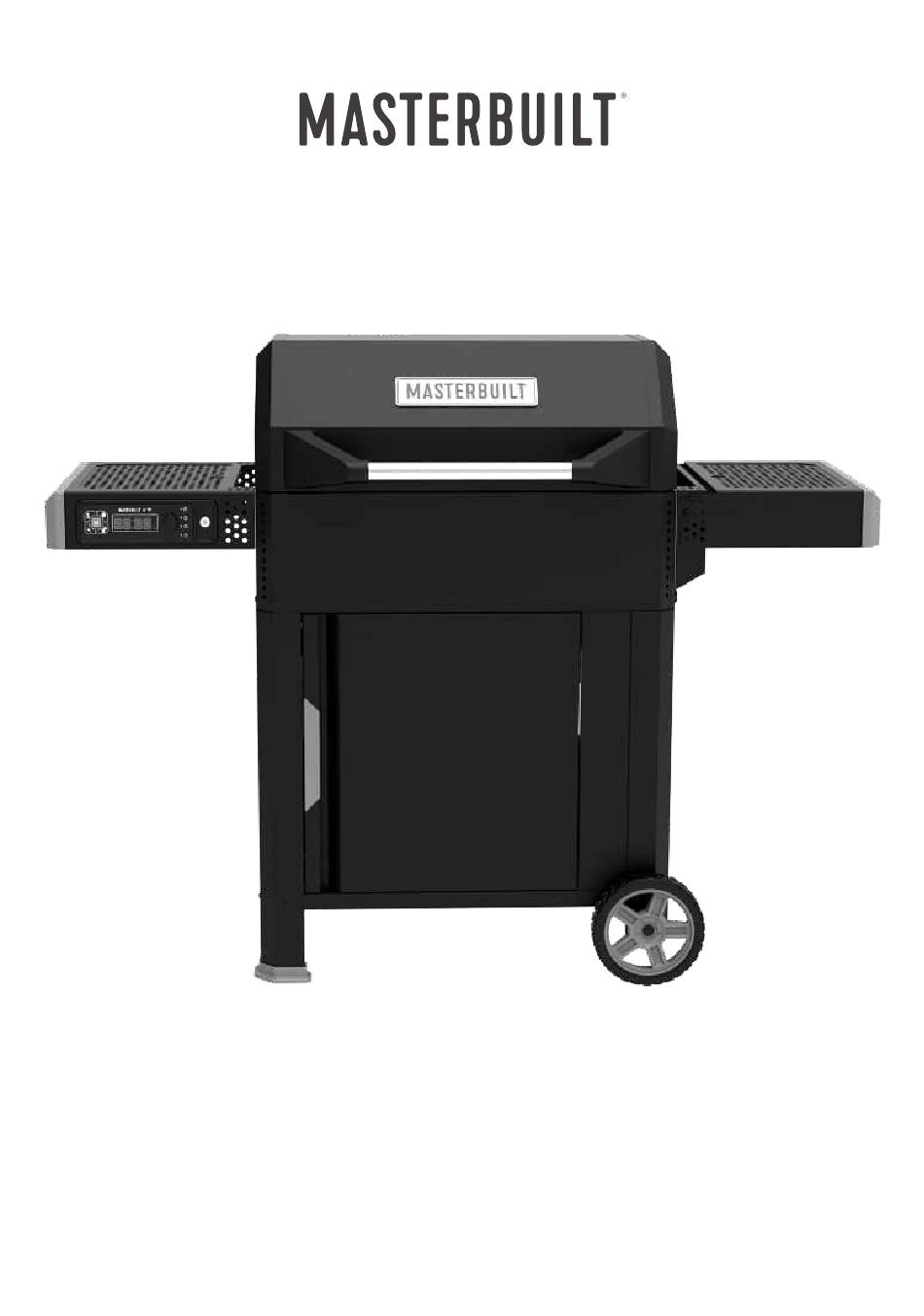

- Page 1 MB20041124 AutoIgnite™ Series 545 Manual Code: 9804230014 | 231208-GH...
- Page 2 Warning Code: DCG-02-230915-MSH Welcome | Bienvenue | Bienvenido | Assembly images are shown first. Please read this entire manual before installation and use of this charcoal fuel burning appliance. Failure to follow these instructions could result in property damage, bodily injury or even death.
- Page 3 A / 25 A / 26 C / 8 B / 4 D / 8 E / 1 H / 8 F / 1 G / 1...
- Page 4 Parts Diagram | Schéma des pièces | Diagrama de partes...
- Page 5 DO NOT RETURN TO RETAILER! For assembly assistance, missing or damaged parts, please contact Masterbuilt® Customer Service. Masterbuilt ® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341 www.masterbuilt.com/pages/customer-support Masterbuilt ® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands international.masterbuilt.com/pages/customer-support...
-
Page 17: Carbon Monoxide Hazard
Warning Code: DCG-02-230915-MSH FOR OUTDOOR USE ONLY. NOT FOR COMMERCIAL USE. WARNING • This manual contains important information necessary for the proper assembly and safe use of the appliance. • Read and follow all warnings and instructions before assembling and using the appliance. •... -
Page 18: Warnings And Important Safeguards
• Never use glass, plastic or ceramic cookware in smoker. Never place empty cookware in grill while in use. • Accessory attachments not supplied by Masterbuilt are NOT recommended and may cause injury. • Do not store grill with hot ashes or charcoal inside grill/hopper. Store only when fire is completely out and all surfaces are cold. -
Page 19: Electric Requirements
Warning Code: DCG-02-230915-MSH WARNINGS AND IMPORTANT SAFEGUARDS • Do not let cord hang on or touch hot surfaces. • Do not place cord on or near a gas or electric burner or in a heated oven. • To disconnect, turn controller “OFF” then remove plug from outlet. •... -
Page 20: Regular Start-Up
Operating Instructions PRE-SEASONING Pre-seasoning will rid your grill of chemicals and oils left over by the manufacturing process. PRE-SEASON GRILL PRIOR TO FIRST USE. 1. Fill the hopper with charcoal approximately 1/4–1/2 full. 2. Start grill following the START-UP instructions and set the temperature to 250°F (121°C) for 60 minutes. 3. - Page 21 Operating Instructions START-UP STEP 1 STEP 2 STEP 3 Preheat Ignitor Load Charcoal Load Fire Starter Set Temperature Set Temperature Auto Ignite Button MANUAL FIRESTARTER IGNITION If fire starter fails to ignite with the ignitor button, you can manually ignite the hopper with the steps below. 1.
-
Page 22: Cord Storage
Operating Instructions SHUTDOWN 1. After cooking is complete, turn controller off and unplug. 2. Close hopper lid and grill lid. 3. Allow grill to cool to the touch before storing. 4. Once grill is cool to the touch, empty the ash cup, cover, and store your grill in a dry location. * NOTE: Charcoal will not be saved after shutting the grill down. -
Page 23: Control Panel
Operating Instructions CONTROL PANEL Power ON/Off Controller: Meat Probe Jacks 1. Press button to power controller ON. 2. Single press while on = Pause function 3. Long press while on = Power OFF Ignite Button: 1. Press button to auto ignite the fire starter. Auto Ignite Button Set Temperature: Set Temperature From Fº... -
Page 24: Bluetooth + Wifi
BLUETOOTH + WiFi Pairing Grill with Smart Device(s): 1. Download the Masterbuilt app from the Apple App Store or Google Play Store onto your smart device(s). For more information go to masterbuilt.com/pages/app-device-requirements. 2. Once the download is complete, open the Masterbuilt app and follow the instructions for pairing your Bluetooth + WIFI grill and smart device(s). -
Page 25: Warming Rack
Operating Instructions SEAR ON THE HOPPER LID / SEAR PLATE WARMING RACK Lift and slide back for more grill space. You can also use your hopper lid for high-heat searing. CLEANING AND STORAGE ALWAYS MAKE SURE GRILL IS COOL TO THE TOUCH BEFORE CLEANING AND STORING. •... -
Page 26: Troubleshooting
Plug controller into power supply and power supply into wall outlet. Circuit breaker tripped. Check wall outlet circuit breaker and reset if tripped. Controller malfunction. Masterbuilt Customer Service https://www.masterbuilt.com/pages/support Fan not ON. Temperature in cabinet has reached Once the set temperature is reached the fan will turn off. Once the set temperature. -
Page 27: Limited Warranty
1 year from the date of original retail purchase. The Mas- terbuilt® warranty does not cover paint finish as it may burn off during normal use. The Masterbuilt® warran- ty does not cover rust. Masterbuilt® requires proof of purchase for warranty claim, such as a receipt.
