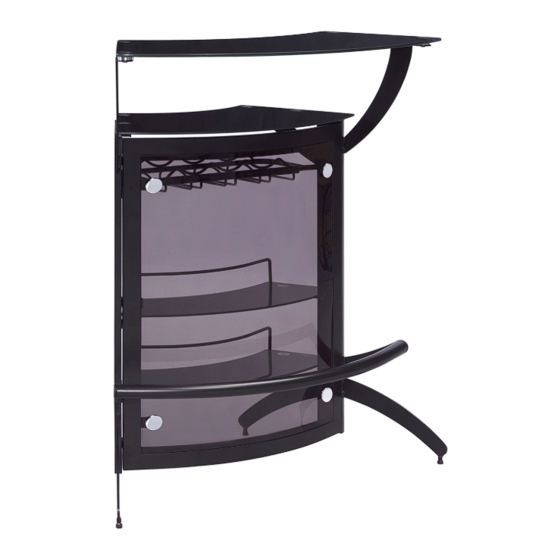

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 182135 BAR TABLE REVISION 0 : 05/24/2019 REVISION 1 : 03/14/2023 PAGE 1 OF 9 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
182135 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
182135 ITEM: ASSEMBLY INSTRUCTIONS PARTS IDENTIFICATION UPPER TOP GLASS GLASS SHELF 2PCS LOWER TOP GLASS HARDWARE IDENTIFICATION ALLEN BOLT-MEDIUM ALLEN BOLT-LARGE 22PCS 3PCS (1/4" x 8mm BLK) (1/4" x 38mm BLK) ALLEN BOLT-SMALL 4PCS 3PCS (1/4" x 9mm BLK) (1/4" BLK) - Page 4 182135 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 Do not tighten until each step is completed or instructed. PAGE 4 OF 9 COASTERFURNITURE.COM...
- Page 5 182135 ITEM: ASSEMBLY INSTRUCTIONS STEP 2 STEP 3 PAGE 5 OF 9 COASTERFURNITURE.COM...
- Page 6 182135 ITEM: ASSEMBLY INSTRUCTIONS STEP 4 STEP 5 COMPLETE PAGE 6 OF 9 COASTERFURNITURE.COM...
- Page 7 182135 ITEM: ASSEMBLY INSTRUCTIONS STEP 6 How to clean Acrylic product: Using a dry soft microfiber cloth, lightly brush off any dust. For additional care, dampen the cloth with warm water. For deepest cleaning, use an Acrylic cleaner. PAGE 7 OF 9...
- Page 8 100135 ITEM: ASSEMBLY INSTRUCTIONS Product Size : 851 X 533 X 1050 H (MM) Product Size : 33 " X 21" X 41 " 5.91" Note : Dimension tolerance ±5% PAGE 8 OF 9 COASTERFURNITURE.COM...
- Page 9 100135 ITEM: ASSEMBLY INSTRUCTIONS Product Size : 1600 X 883 X 1050 H (MM) Product Size : 63" X 34 " X 41 " 5.91" 63" Note : Dimension tolerance ±5% PAGE 9 OF 9 COASTERFURNITURE.COM...
