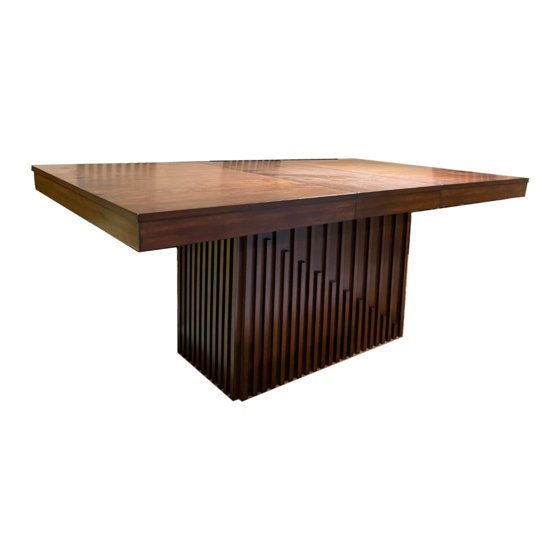

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 182991(B1&B2) Dining Table REVISION 0:10/30/2023 PAGE 1 OF 5 COASTERFURNITURE.COM...
- Page 2 FRONT & BACK PANEL 2PCS SIDE PANEL 2PCS MOUNTING BOARD 2PCS HARDWARE IDENTIFICATION Z-B1 (BOX 1) - HARDWARE PACK IS LOCATED IN 182991(B1) BOLT WITH WASHER 28PCS (M6 x 40mm - BLK) PAN HEAD SCREW 4PCS (M5 x 20mm - BLK)
- Page 3 182991(B1&B2) ITEM : ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 Place the shelf panel at the direction shown. COASTERFURNITURE.COM PAGE 3 OF 5...
- Page 4 182991(B1&B2) ITEM : ASSEMBLY INSTRUCTIONS STEP 3 STEP 4 COASTERFURNITURE.COM PAGE 4 OF 5...
- Page 5 182991(B1&B2) ITEM : ASSEMBLY INSTRUCTIONS STEP 5 180° TURN CLOCKWISE TURN CLOCKWISE TO LOCK TO LOCK STEP 6 COMPLETE 180° TURN COUNTER-CLOCKWISE TURN COUNTER-CLOCKWISE TO UNLOCK TO UNLOCK COASTERFURNITURE.COM PAGE 5 OF 5...
- Page 6 182991(B1&B2) ITEM : 41.75" 77.00" 17.75" 29.75" 29.75" 30.25" 27.00" 36.50" 20.50" Note: Dimension tolerance ±5% COASTERFURNITURE.COM...
