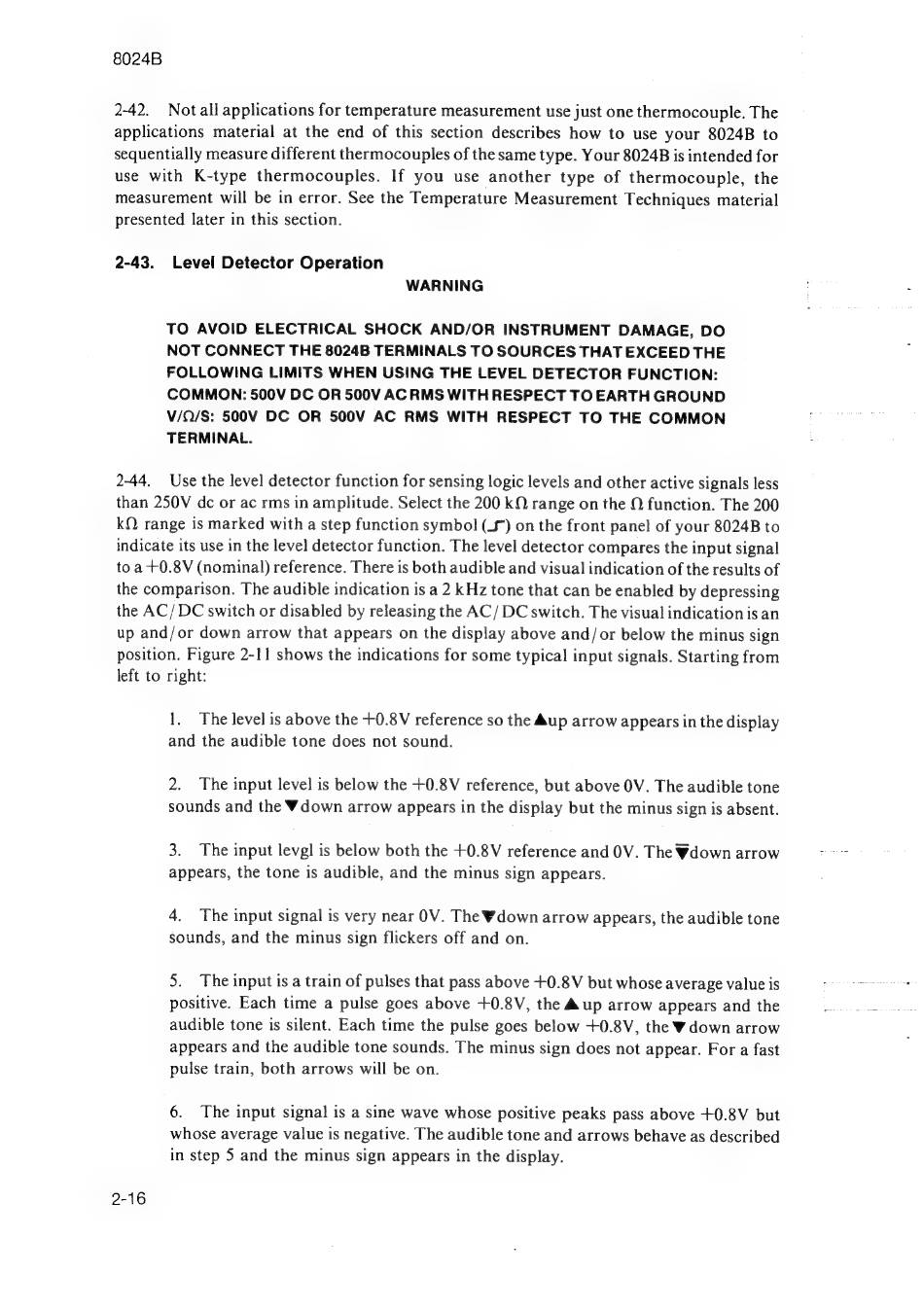

Fluke 8024B Instruction Manual page 33

8024B
2-43. Level Detector Operation
WARNING
TO AVOID ELECTRICAL SHOCK AND/OR INSTRUMENT DAMAGE, DO
NOT CONNECT THE 8024B TERMINALS TO SOURCES THAT EXCEED THE
FOLLOWING LIMITS WHEN USING THE LEVEL DETECTOR FUNCTION:
COMMON: 500V DC OR 500V AC RMS WITH RESPECT TO EARTH GROUND
V/Q/S: 500V DC OR 500V AC RMS WITH RESPECT TO THE COMMON
TERMINAL.
1. The level is above the +0.8V reference so the Aup arrow appears in the display
and the audible tone does not sound.
2-16
