Homelegance Marrin 1444K-1/K-2/K-3CK Assembly Instruction

1444K-1 PART LIST
No Sketch Description
A Headboard
1444K-2 PART LIST
No Sketch Description
B Footboard
C Slat
Support Leg
D
1444K-3CK PART LIST
No Sketch Description
LSF Side Rail
E(L)
F(R) RSF Side Rail
MADE IN MALAYSIA
ASSEMBLY INSTRUCTION/

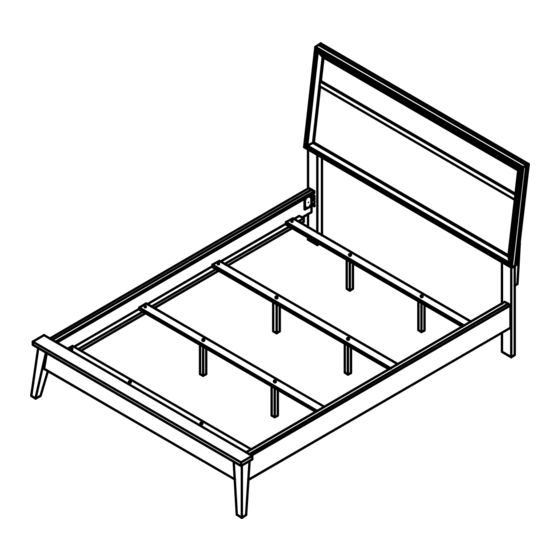

ITEM NO : 1444K-1/K-2/K-3CK CK Cal King Bed
1444K-1
1444K-2
1444K-3CK
Thank you for purchasing this product. Please take time to read and follow the instructions below.
Check that you have all parts and hardware before assembly. Parts apparently missing are often
found in the packing materials. If you do not have all the parts listed, have your dealer contact us
and they will be sent to you immediately
It is recommended to install protective pads under all legs and support to avoid damage or
scratches when placing furniture on a wood floor or other hard surface, and to limit
indentation and prevent discoloration if placing on carpet.
Hardware may loosen over time. Periodically check to make sure all connections are tight. Re-
tighten if necessary.
HARDWARE LIST
Quantity No Description
Allen Key
1
1
Connection Bolt
-JCBC Bolt
-Spring Washer
2
Quantity
-Flat Washer
1
Wood Dowel
3
4 Screw
4
* ABOVE HARDWARE ARE PACKED IN 1444K-3CK FOR ASSEMBLY
8
Quantity
1
1
King Headboard
King Footboard & Slats +
Support Legs
CK Side Rails
.
Size
M4 x 60mm
M6-1.0 x 45mm
Ø1/4" x 7/32" x 7/16" x 0.06"
Ø1/4" x 1/4" x 3/4" x 0.04"
M10 x 30mm
M4 x 32mm
Sketch Quantity
1
8
8
8
PAGE 1 OF 2
