Homelegance Marrin 1444-9 Assembly Instruction

PART LIST

No Sketch Description
A Chest
B
Leg
Step 1
MADE IN MALAYSIA
ASSEMBLY INSTRUCTION

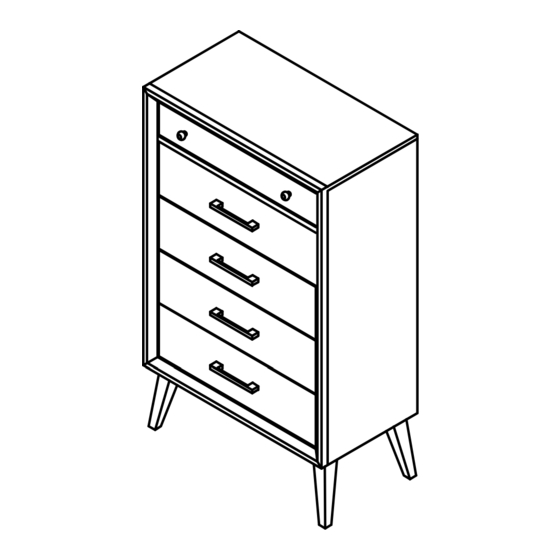

ITEM NO : 1444-9 CHEST
Thank you for purchasing this product. Please take time to read and follow the instructions below.
Check that you have all parts and hardware before assembly. Parts apparently missing are often
found in the packing materials. If you do not have all the parts listed, have your dealer contact us
and they will be sent to you immediately
It is recommended to install protective pads under all legs and support to avoid damage or
scratches when placing furniture on a wood floor or other hard surface, and to limit
indentation and prevent discoloration if placing on carpet.
Hardware may loosen over time. Periodically check to make sure all connections are tight. Re-
tighten if necessary.

HARDWARE LIST

No Description
Quantity
Allen Key
1
1 Connection Bolt
-JCBC Bolt
-Spring Washer
2
-Flat Washer
4
* ABOVE HARDWARE ARE PACKED IN 1444-9 FOR ASSEMBLY
A
.
Size
M4 x 60mm
M6-1.0 x 20mm
Ø1/4" x 7/32" x 7/16" x 0.06"
Ø1/4" x 1/4" x 3/4" x 0.04"
Step 2
B
B
A
Sketch Quantity
12
1
2
X 4
B
B
PAGE 1 OF 1
1
