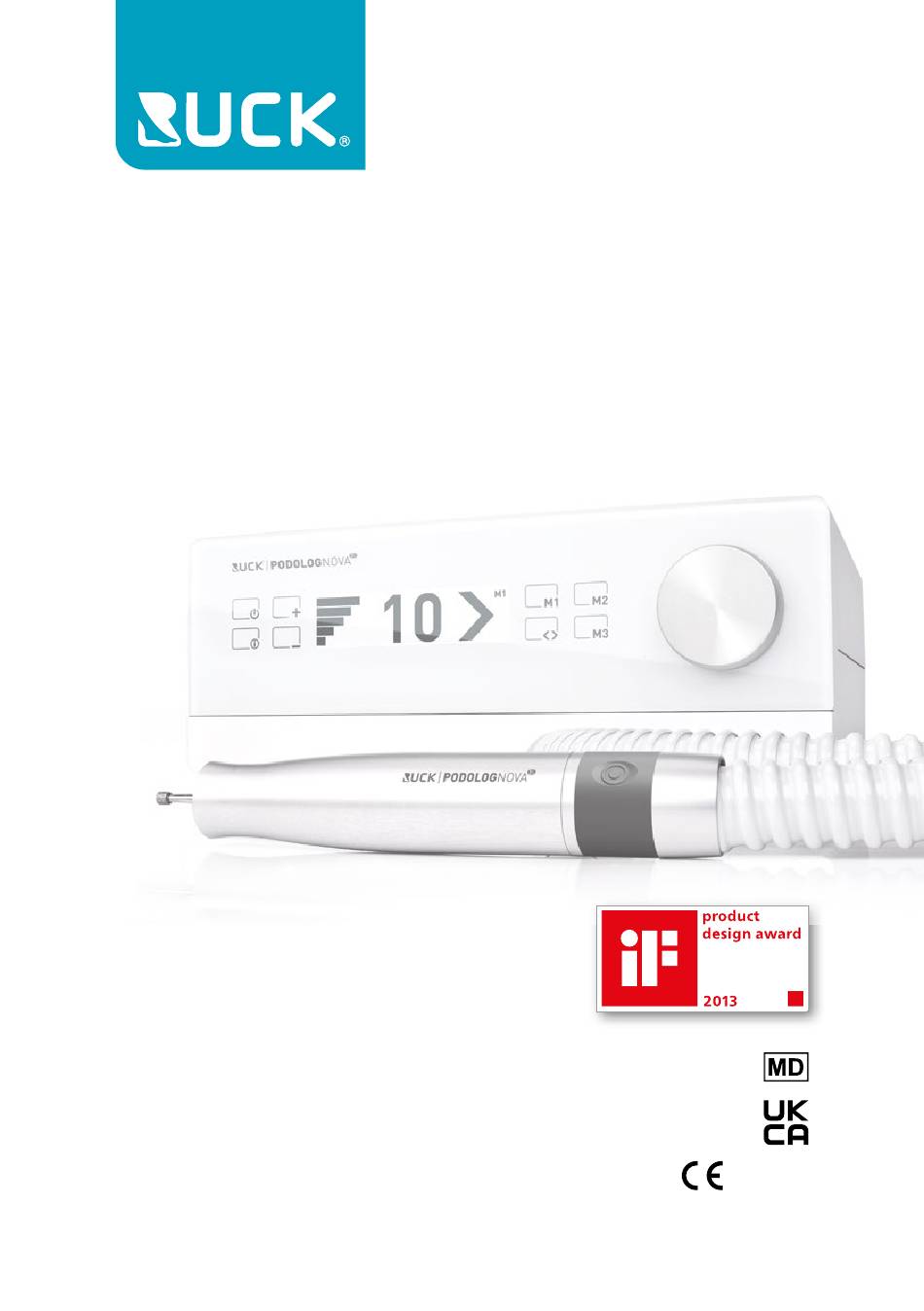

- Page 1 RUCK Podiatry Drill PODOLOG NOVA 3s Instructions for Use 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | 0483 Revision status 16.08.2023...
- Page 2 HELLMUT RUCK LTD | Raceside Barn | Kirksanton Millom, GB-LA18 4NW Copyright © 2023 Hellmut Ruck GmbH. All rights reserved. This document must not be copied, edited, reproduced or translated without the prior written permission of Hellmut Ruck GmbH. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 |...
- Page 3 Dear Customer, With the PODOLOG NOVA 3s, you have acquired a Footcare System that sets completely new standards in terms of functionality and performance. It has been developed throughout "based on best practice for use in the best pratices". You will clearly feel the many details that are taken into consideration in this new development, details that reflect over 90 years of experience and expertise.
-
Page 4: Table Of Contents
3.4.1 Hazards caused by removed materiall ..............14 3.4.2 Allergy risks ........................14 3.4.3 Hazards caused by moving parts ................14 4 Set-up ..........................15 Technical safety ........................15 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... - Page 5 5.5.3 Activating the service reminder ................32 5.6 Filter change ..........................33 5.6.1 Changing the filter bag ....................33 5.6.2 Where can you get new dust filter bags? ............... 35 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023...
- Page 6 11.2 The device is not responding ....................50 11.3 Resetting language and area of activity ................50 12 Potential error messages on the display ..............51 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023...
-
Page 7: Device Description
Device description Device description Front view Controller Display Dust filter bag drawer Handpiece Magnetic speed control knob Hose connection 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 8: Back View
If the power cable is damaged, the device must be disconnected from the mains and may not be used any more. A damaged power cable may only be replaced by an authorised specialist. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 9: Explanation Of The Characters And Icons Used
(up size diameter of more to 15° from the vertical than 12 mm Protect against wet and damp 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 10: In The Instructions For Use
Please take some time to read through these instructions for use carefully before setting up the PODOLOG NOVA 3s. This constitutes part of the medical product and should be kept in close proximity to the device itself. Please check that the delivery is complete. -
Page 11: Packaging
› Doctors › Podiatrists › Chiropodists The devices are not intended for use by non-professionals. Users/patients with a pacemaker should consult their attending physician before use/ treatment. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 12: Staff And Patient Safety
(cleaning, disinfection and sterilisation) must be followed. You will find additional information in the current catalogue from HELLMUT RUCK GMBH, in the section “Rotary instruments”. › Operating staff must wear protective goggles and mouth and nose protection while using the equipment. -
Page 13: Possible Patient Risks
The efficient suction technology of the PODOLOG NOVA 3s minimises the risk of inhaling dust which may potentially contain pathogens. The risk of infection can be further reduced by practising thorough antiseptic skin hygiene prior to the treatment. -
Page 14: Potential Risks For The User
In the interests of hygiene, jewellery should not be worn. The user should wear clothes that cannot get caught in the tool. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 15: Set-Up
› If the device is opened, all rights under the terms of the guarantee are void! › See Chapter 7.1 for tools which may be used. › The PODOLOG NOVA 3s is a STAND-ALONE device. To avoid electro-magnetic interference, we do not envisage it being used in conjunction with other devices. - Page 16 Such equipment should be operated at a minimum distance of 30 cm from the PODOLOG NOVA 3s and its parts. Otherwise the possibility of device performance impairments cannot be excluded.
- Page 17 Please ensure that you have easy access to the mains plug at all times so that the device can be unplugged from the mains without difficulty. The mains plug represents the separator to the mains power supply. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023...
-
Page 18: Operation
Operation Operation 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... - Page 19 The icon appears as a reminder that a filter bag change is due. Service display The icon appears as a reminder that a service is due. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023...
-
Page 20: Preparations For Operation
Wait around 3 seconds before pressing the standby button on the glass front panel. = OFF (power switch off) = ON (power switch on) = Standby button on/off 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 21: Inserting A Rotary Tool
The cutters used must not have any imbalance or other defects. Failure to observe this requirement may result in patient injury and damage to the handpiece bearing. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 22: Switching On The Podolog Nova 3S
The PODOLOG NOVA 3s is now switched on and ready to use. The first time it is switched on, you must set the PODOLOG NOVA 3s to your language and your area of activity. Additionally, you can activate the service reminder function so that you are reminded in time when the next service is due. - Page 23 Operation Menu display the first time the PODOLOG NOVA 3s is used: LANGUAGE SELECTION[[M1] Deutsch [M3] Spanish [ M1 ] DEUTSCH [ M2 ] РУССКИЙ [◄►] FRANCAIS [ M3 ] POLSKA [ + ] ENGLISH THANK YOU FOR CHOSENM1] Deutsch...
-
Page 24: Switching On The Handpiece
Press lightly on the switch at the back end while the motors are running. The motor switches off and you can pause work and place the handpiece in the bracket provided. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 25: Switching Off The Podolog Nova 3S
The power plug represents the separator to the mains power supply. If the PODOLOG NOVA 3s is not used for an hour, it automatically switches to ECO mode. It can be easily switched on again by pressing the standby button. -
Page 26: Removing The Magnetic Speed Control Knob
You can set your tool to right-hand or left-hand rotation depending on which tool you are using and on whether you are right-handed or left-handed. The arrow shows the direction of rotation. Right-hand direction 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 27: Modifying The Rotation Direction
Re-peated pressing of the [ + ] button increases the extraction power level. Pressing and holding the corresponding button controls the extraction power level in the desired direction. There are five extraction power levels. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 28: Storing Settings
You can change the settings at any time while the device is in operation. The speed setting may not exceed the permitted maximum speed of your tool. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 29: Changing The Tool
The tool shaft must be fully inserted! Ergonomic handpiece grips 5.4.1 Fountain pen grip Fine work can be done ergonomically and accurately using the fountain pen grip. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 30: Overhand Grip
The Info menu offers you the option of calling up the following information and functions. Scroll through the individual menu items with the [ + ] and [ - ] buttons. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 31: Filter Change
This is either after 900 operating hours or at the latest, 24 months after you purchased the device. INFO MENU NEXT RECOMMENDED SERVICE: 01/2024 OR AFTER 499 OPERATING HOURS [+/-] SCROLL [i] MAIN MENU 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 32: Activating The Service Reminder
5.5.3 Activating the service reminder If you activate the Service reminder function, your PODOLOG NOVA 3s will let you know when the next service is due. You can activate/deactivate this function through the INFO MENU. After 900 operating hours the maintenance symbol appears on the display. -
Page 33: Filter Change
[ i ] button to access the INFO MENU. There, you can scroll with the [ + ] or [ - ] buttons to the filter change menu item. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... - Page 34 [ M1 ] YES [ M2 ] CANCEL Confirm that the change has been made by pressing the [M1] button, which then returns you to the STANDARD MENU. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023...
-
Page 35: Where Can You Get New Dust Filter Bags
5.6.2 Where can you get new dust filter bags? New dust filter bags can be ordered from HELLMUT RUCK GmbH under the item number 1100103. Please ensure that you only use original dust filter bags from the manufacturer. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 |... -
Page 36: Cleaning The Motor Unit
Exchange of interchangeable chuck If the function of the interchangeable chuck is no longer given, simply replace the simply replace the interchangeable chuck with the interchangeable chuck for PODOLOG NOVA 3s (item no. 1106701) included in the scope of delivery. -
Page 37: Maintenance, Cleaning And Disinfection
Also check the housing and in particular the glass front for damage. To disinfect all parts of the controller and handpiece, use RUCK alcohol-free, surface disin- fection wipes (item. no. 2966702) medical product. These can be found in our manual or in the Internet at www.hellmut-ruck.de. -
Page 38: Accessories And Spare Parts
More information can be found in the standard DIN EN ISO 1797-1. Dust filter bags You should only use original dust filter bags from the manufacturer (Item no.: 1100103). 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... - Page 39 Handpiece holder for RUCK ROOM classic ® Item no.: 4823801 Handpiece holder for wall or third-party cabinet Item no.: 1106701 Interchangeable chuck for PODOLOG NOVA 3 and 3s 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023...
-
Page 40: Technical Data (Incl. Emc Test Results)
280 l/min (- 10 %) Length of power cable in cm Length of hose in cm We are not aware of any electromagnetic interactions between the PODOLOG NOVA 3s and any other equipment. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 |... -
Page 41: Environmental Conditions
70 °C (at relative air humidity from 15 % up to 93 %, non-condensing) Air pressure 700 hPa (≈ 3000 metres above sea level) - 1060 hPa 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 42: Information Regarding Electromagnetic Compatibility
Guidelines and manufacturer’s declaration — electromagnetic interference The PODOLOG NOVA 3s is designed for use in electromagnetic environments as specified below. The customer or client using PODOLOG NOVA 3s hould ensure that the device is used in the prescribed environment. - Page 43 Guidelines and manufacturer’s declaration — electromagnetic interference immunity The PODOLOG NOVA 3s is designed for use in electromagnetic environments as specified below. The customer or user of the PODOLOG NOVA 3s should ensure that the device is used in the prescribed environment.
- Page 44 30 A/m, 50 Hz and 60 Hz Electromagnetic en- Power frequency magnetic fields should be at level characteristics of a vironment guidelines typical location in a typical commercial or hospital enviroment. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023...
- Page 45 PODOLOG NOVA 3s with current from an uninterruptible power system or via battery. NOTE: UT is the supply voltage before implementation of the test level. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023...
- Page 46 Guidelines and manufacturer’s declaration — electromagnetic interference immunity The PODOLOG NOVA 3s is designed for use in electromagnetic environments as specified below. The customer or user of the PODOLOG NOVA 3s should ensure that the device is used in the prescribed environment.
- Page 47 Above a frequency range of 150 kHz to 80 MHz the magnetic field strength should be less than 3V/m. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023...
- Page 48 Recommended safety distances between portable and mobile equipment HF telecommunication equipment and the PODOLOG NOVA 3s The PODOLOG NOVA 3s is designed for use in electromagnetic environments as specified below. The customer or user of the PODOLOG NOVA 3 can contribute to avoiding electro-...
-
Page 49: Warranty
Within the scope of the warranty, HELLMUT RUCK GmbH will, at no charge, either repair or replace the defective products – at RUCK’s discretion. The prerequisite is carriage-paid shipment of the defective product together with the purchase receipt. -
Page 50: Faq
The operating hours counter / the time remaining until the next service as shown in the Info menu are not changed during the reset. 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... -
Page 51: Potential Error Messages On The Display
Video tip In an application video, we show you how the cutter pliers work. qr.de/Fraeserzange 8011042 | Instructions for Use PODOLOG Nova 3s | REV06 | Revision status 16.08.2023... - Page 52 4 255621 513156 HELLMUT RUCK GmbH Daimlerstr. 23 DE–75305 Neuenbürg fon +49 (0)7082 944 20 fax +49 (0)7082 944 22 22 kontakt@hellmut-ruck.de hellmut-ruck.de...
