- Page 1 THE TECHNICAL UNIT for PODOLOG NOVA 3, PODOLOG ECO and PODOLOG ONE Operating Instructions | Revision 3 | Print: | REF 8013601...
- Page 2 11140 HELLMUT RUCK GmbH | Daimlerstraße 23 | D - 75305 Neuenbürg web www.hellmut-ruck.de | tel. +49 (0)7082. 944 20 | fax +49 (0)7082. 944 22 22 Copyright © 2016 HELLMUT RUCK GmbH. All rights reserved. This document must not be copied, edited, reproduced or translated without the prior written permission of HELLMUT RUCK GmbH.

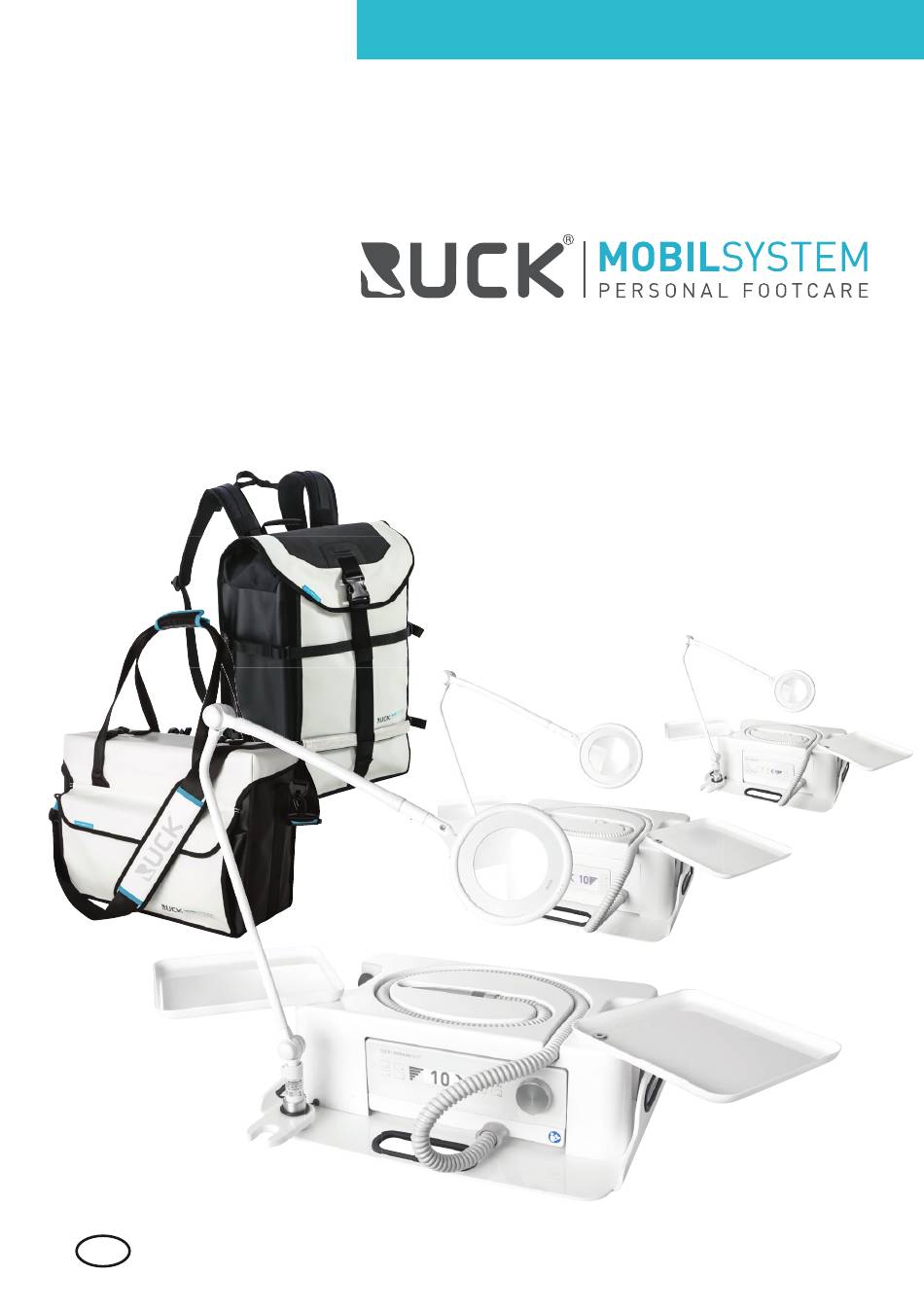

- Page 3 Page 3 Dear customer, The RUCK MOBILE SYSTEM technical unit is the practical bag for all technical products for professional mobile foot care. The timeless professional exterior of the bag is made of sturdy, water-repellent tarpaulin for trucks. The insert with integrat- ed rotatable trays made of shock-proof ABS plastic is hygienic and easy to clean.
-
Page 4: Table Of Contents
TABLE OF CONTENTS PAGE GENERAL INFORMATION PRODUCT DESCRIPTION INSERTING THE FOOT CARE DEVICE INTO THE TECHNICAL UNIT MOUNTING THE MAGNIFIER LAMP AND HANDPIECE HOLDER CLEANING AND DISINFECTING THE TECHNICAL UNIT WARRANTY TECHNICAL DATA Easy to pack, VIDEO at www.hellmut-ruck.de/special/mobilsystem RUCK MOBILE SYSTEM... -
Page 5: General Information
Hellmut Ruck GmbH reserves all rights to modify and supplement these operating instruc- tions. Hellmut Ruck GmbH has taken great care to keep these instructions free of inaccura- cies and omissions. Please contact us if you fi nd mistakes or inaccuracies. However, Hellmut... -
Page 6: Product Description
| PRODUCT DESCRIPTION Page 6 12 13 12 13 RUCK MOBILE SYSTEM... - Page 7 O-RING (1 x for the power supply of the PODOLOG CIRCLE S, 1 x replacement) SILICONE GRIP INSERT ALLEN KEY FOR LIGHT BRACKETS 4 x ELASTIC STRAP (replacement) BELT FASTENER FOR FOOT CARE DEVICE ELASTIC STRAPS FOR DEVICE COVER TECHNICAL UNIT BAG TECHNICAL UNIT RUCKSACK RUCK MOBILE SYSTEM...
-
Page 8: Inserting The Foot Care Device Into The Technical Unit
| INSERTING THE FOOT CARE DEVICE INTO THE TECHNICAL UNIT Page 8 INSERTING THE FOOT CARE DEVICE INTO THE TECHNICAL UNIT 1. RELEASE SILICONE FIXER. 2. RELEASE SILICONE FIXER. 3. RELEASE SILICONE FIXER. 4. REMOVE DEVICE COVER. RUCK MOBILE SYSTEM... - Page 9 INTO THE FOUR RECESSES FOR THE DE- VICE FEET. 7. FOOT CARE DEVICE FULLY RESTS IN ITS 8. STRAP THE FOOT CARE DEVICE TO THE POSITION. BASE PLATE WITH THE FIXATION STRAP. IF NECESSARY, RE-OPEN THE FIXATION STRAP AND TIGHTEN IT. RUCK MOBILE SYSTEM...
- Page 10 10. STOW THE POWER CABLE TO THE LEFT DEVICE INTO THE MULTI-SOCKET OUTLET. OF THE FOOT CARE DEVICE. 11. INSERT THE BLACK CABLE BUSHING 12. INTERLOCK THE SILICONE FIXERS INTO INTO THE FRONT RECESS OF THE DEVICE EACH OTHER. COVER. RUCK MOBILE SYSTEM...
- Page 11 CIRCUMFERENTIAL GROOVE OF THE CARE DEVICE. BASE PLATE. 15. INSERT THE HANDPIECE INTO THE HAND- 16. HANG THE SILICONE FIXERS INTO THE PIECE STORAGE LOCATION. DEVICE COVER. ENGAGE THE DEVICE COVER IN THE CIRCUMFERENTIAL GROOVE OF THE BASE PLATE. RUCK MOBILE SYSTEM...
- Page 12 17. HANG THE SILICONE FIXERS INTO THE 18. ROLL UP THE EXTENSION CORD OF THE DEVICE COVER. ENGAGE THE DEVICE MULTI-SOCKET OUTLET AND PLACE IT IN COVER IN THE BASE PLATE. THE DESIGNATED SPACE. 19. MOVE THE MAGNIFIER LAMP PAST THE SUCTION HOSE. RUCK MOBILE SYSTEM...
- Page 13 2. UNSCREW THE HEADLESS SCREW FROM THE LIGHT BRACKET. 3. PUT THE HANDPIECE HOLDER AND THEN 4. TIGHTEN THE HEADLESS SCREWS OF THE THE O-RING OVER THE LAMP BASE. LIGHT BRACKET. THE LIGHT SHOULD STILL BE ABLE TO TURN EASILY. RUCK MOBILE SYSTEM...
-
Page 14: Mounting The Magnifier Lamp And Handpiece Holder
| MOUNTING THE MAGNIFIER LAMP AND HANDPIECE HOLDER Page 14 5. USE THE O-RING TO SECURE THE POWER 6. SECURE THE POWER CABLE ON THE CABLE (USE TWO IF NECESSARY). POWER ADAPTER AND PLUG IT INTO THE MULT-SOCKET OUTLET. RUCK MOBILE SYSTEM... -
Page 15: Cleaning And Disinfecting The Technical Unit
Danger due to disease transmission! Insufficient disinfection can result in transmission of disease. Always comply with the require- ments of the responsible national body for hygiene and disinfection. Use the RUCK ® disin- fection cloths – alcohol-free (art. no. 29428) – do not use any spray disinfectants. It must be possible to effectively evaporate surface disinfectants before the next treatment;... - Page 16 1. REMOVE THE TECHNICAL UNIT FROM THE 2. REMOVE THE HOOD. BAG. 4. THE TECHNICAL UNIT CAN NOW BE 3. REMOVE ALL COMPONENTS FROM THE COMPLETELY CLEANED. IN ADDITION, THE BASE PLATE. SILICONE GRIP INSERTS MAY BE REMOVED FOR CLEANING. RUCK MOBILE SYSTEM...
- Page 17 5. LUBRICATE THE MAGNIFIER LAMP SOCKET 6. LUBRICATE THE LOCKING NUTS ON THE IN THE LIGHT BRACKET REGULARLY WITH ROTATABLE INSTRUMENT TRAYS REGU- RUCK MAINTENANCE FLUID (art. no. 10353). LARLY WITH RUCK MAINTENANCE FLUID (art. no. 10353). 7. READJUST LAMP HINGES. FOR THIS, RE-...
-
Page 18: Warranty
The local agent is responsible for claims made outside of Germany. In case of doubt, please check with RUCK before returning the device. The warranty becomes null and void if we find that the problem was caused by improper or incorrect installation or usage, by non-observance of the operating instructions, by external influence or as a result of an unauthorised repair or modification. -
Page 19: Technical Data
Page 19 TECHNICAL DATA | TECHNICAL DATA RUCK MOBILE SYSTEM TECHNICAL UNIT BAG ® Dimensions W/D/H: 47/18/35 cm RUCK ® MOBILE SYSTEM TECHNICAL UNIT RUCKSACK Dimensions W/D/H: 35/22/48 cm RUCK MOBILE SYSTEM... - Page 20 Page 20 RUCK MOBILE SYSTEM...
- Page 21 Page 21 NOTES | RUCK MOBILE SYSTEM...
- Page 22 | NOTES Page 22 RUCK MOBILE SYSTEM...
- Page 23 Page 23 NOTES | RUCK MOBILE SYSTEM...
- Page 24 F U S S U N D P F L E G E HELLMUT RUCK GmbH Daimlerstraße 23 D -75305 Neuenbürg, Germany tel +49 (0)7082. 944 20 fax +49 (0)7082. 944 22 22 E -mail contact @ hellmut-ruck.de web www.hellmut-ruck.de...
